Sensitive Syringe Pump

HTSY® is Sensitive Syringe Pump factory manufacturer from China.We have strong production capabilities and standardized production lines, allowing us to provide high-quality, cost-effective products to customers around the world.We have established branches and offices globally, with a complete sales network and after-sales support system. Backed by reliable logistics and 24/7 customer service, we are able to offer comprehensive, professional, and thoughtful service.

This product features a dual-channel design and supports both single and dual-channel operation at the same time, compatible with a variety of drug delivery modes.The cascade mode ensures smooth and continuous operation, lowering the risks caused by frequent drug changes.The system comes preloaded with 29 common branded syringe models and 2 customizable ones for better compatibility.

-Dual-channel Design

-Supports single/dual-channel simultaneous operation

-A/B Dual-screen Display

Product Parameter（Specification）

1. Syringe specification: Automatically recognizes various brands of syringes, specifications: 10 ml, 20 ml, 30 ml, 50 ml.

2. Flow rate range: 10 ml syringe: 0.1 - 400 ml/h; 20 ml syringe: 0.1 - 600 ml/h; 30 ml syringe: 0.1 - 900 ml/h; 50 ml syringe: 0.1 - 1300 ml/h. Flow rate error: ±2% < 100 ml/h. The flow rate can be increased or decreased in increments of 0.1 ml/h or 1 ml/h, and in increments of 1 ml/h or 10 ml/h for flow rates ≥ 100 ml/h.

3. Pre-set volume range: 0.1 ml - 9999.9 ml. Error: ±2%.

< 100 ml can be incremented or decremented by 0.1 ml or 1 ml; ≥ 100 ml can be incremented or decremented by 1 ml or 10 ml.

4. Pill dosage/pre-fill speed: 10 ml syringe: 400 ml/h; 20 ml syringe: 600 ml/h; 30 ml syringe: 900 ml/h; 50 ml syringe: 1300 ml/h; Error: ±5%.

5. Pill dosage range: 0.1 ml - 5 ml adjustable; can be incremented or decremented by 0.1 ml.

6. Blockage sensitivity: High, medium, and low options are available, ranging from 0.02 Mpa to 0.06 Mpa, 0.06 Mpa to 0.10 Mpa, and 0.10 Mpa to 0.14 Mpa.

7. KVO: Maintain vein open, speed range adjustable from 0.1 ml/h to 1 ml/h, can increment or decrement at a speed of 0.1 ml/h or 1 ml/h; KVO flow rate error ≤ ±5%.

8. Injection mode: Speed mode, time mode, weight mode, simple mode.

9. Two operation modes: keyboard and shuttle key, to meet the needs of different users.

10. Six dosage units: ml/h; ml/min; mg/kg/min; mg/kg/h; ug/kg/h; ug/kg/min.

11. Alarm functions: blockage alarm, syringe detachment alarm, approaching completion alarm, injection completion alarm, low pressure alarm, battery depletion alarm, AC power failure alarm, motor abnormality alarm, forgotten operation alarm, installation error alarm.

12. Other functions: automatic syringe recognition, pre-fill function, cumulative volume display, blockage pressure release function, silent function, speed out-of-range control, AC/DC automatic switching, residual indication, memory function, anti-siphon function, cumulative volume clearing function, custom syringe function, key lock function, clock setting, backlight delay.

13. Continuous operation: The Sensitive Syringe Pump can operate continuously for no less than 24 hours when powered by an AC power supply.

14. Operating environment: Temperature: 5℃ - 40℃, relative humidity: 30% - 75% (no condensation), atmospheric pressure: 860 hPa - 1060 hPa.

15. Storage environment: Temperature: -20℃ - 55℃, relative humidity: 10% - 93% (no condensation), atmospheric pressure: 700 hPa - 1060 hPa.

16. Power type: AC: AC 220V, tolerance ±10%; 50Hz ±1Hz; Battery: DC 11.1V, tolerance ±10%.

17. Battery working time: After the internal battery is fully charged, it can operate continuously at a flow rate of 5 ml/h for no less than 5 hours.

18. Overall power consumption: ≤ 15 VA

19. Size: 314mm x 167mm x 140mm

20. Weight: Approximately 2.5 kg 21. Safety classification: Class II CF type, with an enclosure protection rating of IPX3, capable of continuous operation

Product Feature And Application

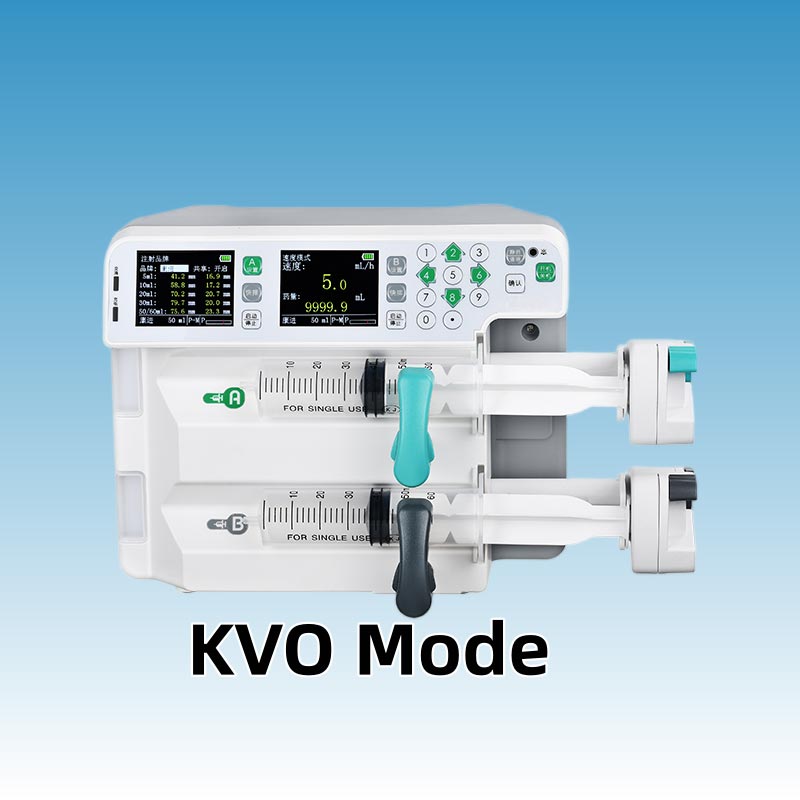

Sensitive Syringe Pump is designed with easy operation in mind. It comes with multiple visual and audio alarms for issues like blockage or low drug levels, so medical staff can be alerted right away. Once the injection is finished, the pump will automatically switch to KVO mode to keep the vein open.

Production Details

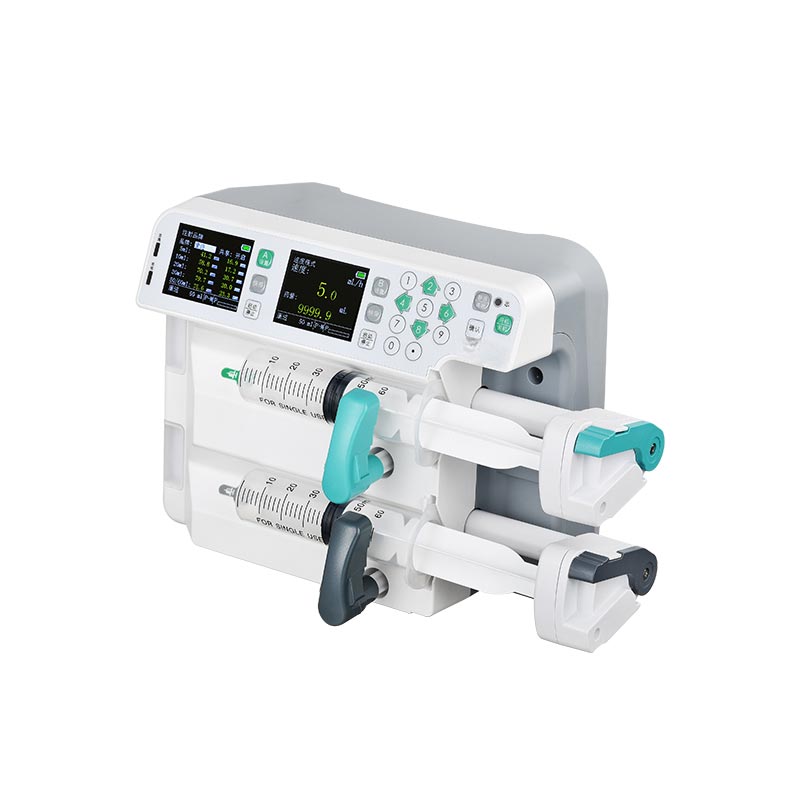

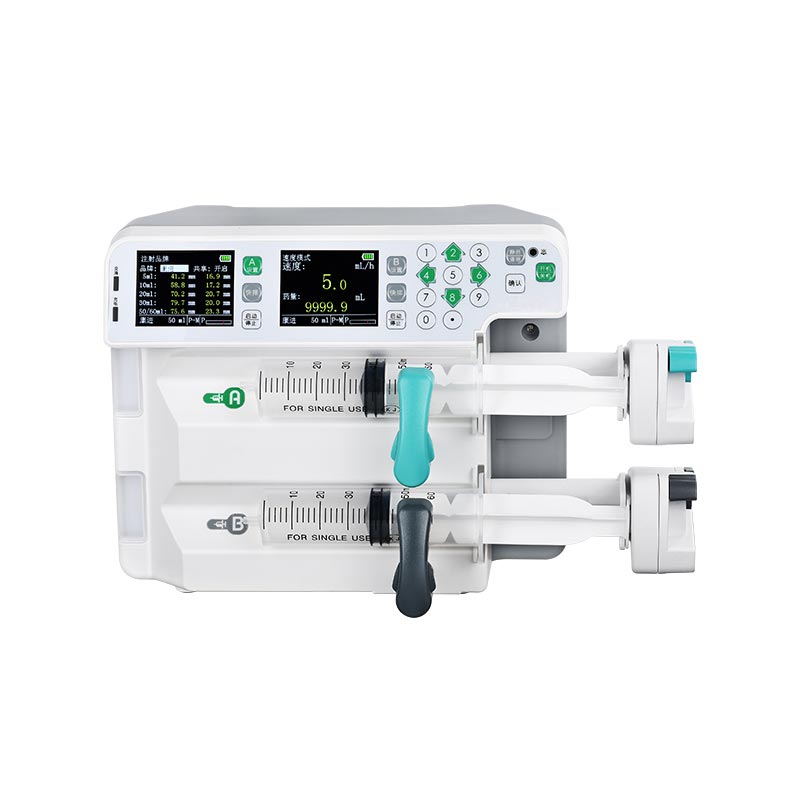

Sensitive Syringe Pump is smaller and lighter, making it easy to carry and more practical to use.It comes with an A/B dual-screen design, so operation and monitoring can be done at the same time without interference. The built-in numeric keypad also makes operation more efficient.It supports a night mode: when switched on, the alarm volume and screen brightness are lowered to save energy.
