Ambulatory Infusion Pump
HTSY® is a professional Ambulatory Infusion Pump factory.HTSY® is one of the earliest high-tech enterprises recognized by the government in Tianjin, China. As one of China’s earliest officially accredited high-tech enterprises, we have a professional R&D team dedicated to the development and production of a complete range of ambulatory infusion pumps.We provide safe, high-precision ambulatory infusion solutions for customers worldwide, and we sincerely welcome your inquiries.
Send Inquiry
Product Description
HTSY® is Ambulatory Infusion Pump factory manufacturer from China.We boast robust production capacity and standardized production lines, delivering high-quality yet cost-effective products to customers around the globe.

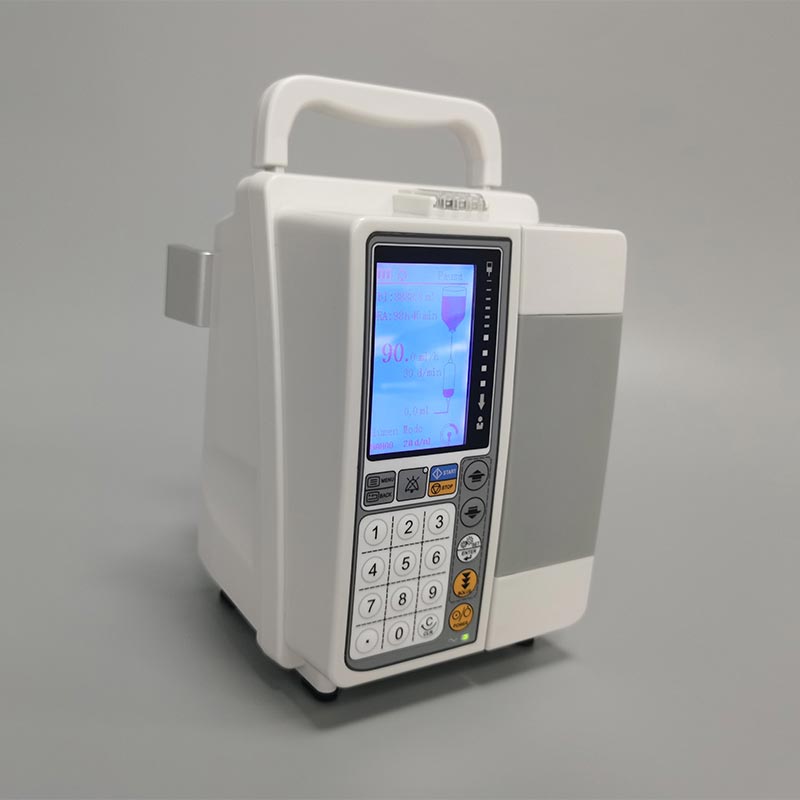

Ambulatory Infusion Pump features a classic vertical design that ensures stable operation and convenient clinical operation. Equipped with advanced software control technology, its infusion accuracy error is controlled within ±5%, guaranteeing safe and reliable drug delivery.
It is widely applied in various clinical departments, including ICU, NICU, pediatrics, internal medicine, general surgery, obstetrics and gynecology, oncology, emergency departments, as well as outpatient infusion rooms, meeting the diverse infusion needs of different patients and medical scenarios.
The device is designed with a dual-CPU control system for enhanced safety and stability, paired with a dedicated numeric keypad that simplifies parameter input and operation. This combination greatly improves both safety performance and user-friendliness, effectively reducing operational complexity for medical staff.
Product Parameter（Specification）
| Item | Specification |
| InfusionMode | Volume Mode,Time Mode,DrugMode |
| RateUnit | ml/h,volume/time,d/min |
| IVSets | Standard single useIVsets(10,15,20,60d/mL,withdiameter3.4~4.5mm) |
| FlowRate | 1.0ml/h~1200ml/h;1.0d/min~400d/min |
| Increment |
1.0-99.9ml/hin 0.1ml/hstep100-1200ml/in1ml/hstep 1-400d/minin1d/minstep |
| Deviation | FlowRate:≤5%(aftercalibration) |
| VTBI | 0.1～9999.9ml |
| TotalVolume | 0.0～9999.9ml |
| Time | 1min~99h00min |
| PurgeRate | 600ml/h,display purge volume |
| KVO | 1.0ml/h~5.0ml/h,adjustable |
| Keypad | Numeric keypad |
| BOLUS | Bolusfunction available,flow rate adjustable |
| NightMode | Screen to be dimautomaticallyin5minsafterstandbytimeexpired. |
| Occlusionpressuredetector |
Upstream and downstream pressuredetection,40KPa～130KPa,10 levelsadjustable with dynamic pressure valuedisplay |
| AirBubbleDetector | Ultrasonic detection,≥50ul,Singe bubblevolume:50~300μl,10levelsadjustable. |
| Volume | 10levelsadjustable |
| MotorAnti-reverseFunction | Anti-reverse function to preventupstream |
|
IVSet Management |
Open system,accept differentIV brandsaftercalibration |
| Self-Testing | Self-Testing before startup andduringinfusion |
| AudioVisualAlarmMessage |
Air bubble,upstream occlusion,downstream occlusion,door open,infusion finish,standbytimeexpired,batterylow,batteryempty, batterydisengaged,AC Powerdisengaged, motorerror,pump error,pressure sensorerror,parameter error,systemerror |
| Screen | 3.2inch brightness LCD |
| PowerSupply | AC Power:100V~240V,50Hz/60Hz,≤25VA |
| Battery | RechargeableLithiumbattery,DC11.1V,3000mAh;operatingtme:≥10h@25ml/h,displaying remaining battery |
|
Operation Condition |
Temperature:+5℃~+40℃,Humidity:20%~90%,Air pressure:70~106KPa |
| Transport&Storage | Temperature:-20℃~+55℃,Humidity:10%~95%,Air pressure:50~106KPa |
| Classification | Type CF,ClasII,IPX3 |
| Dimension | 145mm×150mm×200mm;Weight:1.7kg |
Production Details
Ambulatory Infusion Pump has more detailed and complete information.
Adjustable Levels Setting: Ambulatory Infusion Pump is equipped with 10-level adjustable settings for occlusion detection, air bubble detection, and alarm volume, allowing users to customize sensitivity and sound according to clinical needs.
Strong Battery Backup: Ambulatory Infusion Pump is built-in 3000mAh high-capacity rechargeable battery, providing reliable backup power for more than 10 hours of continuous operation.

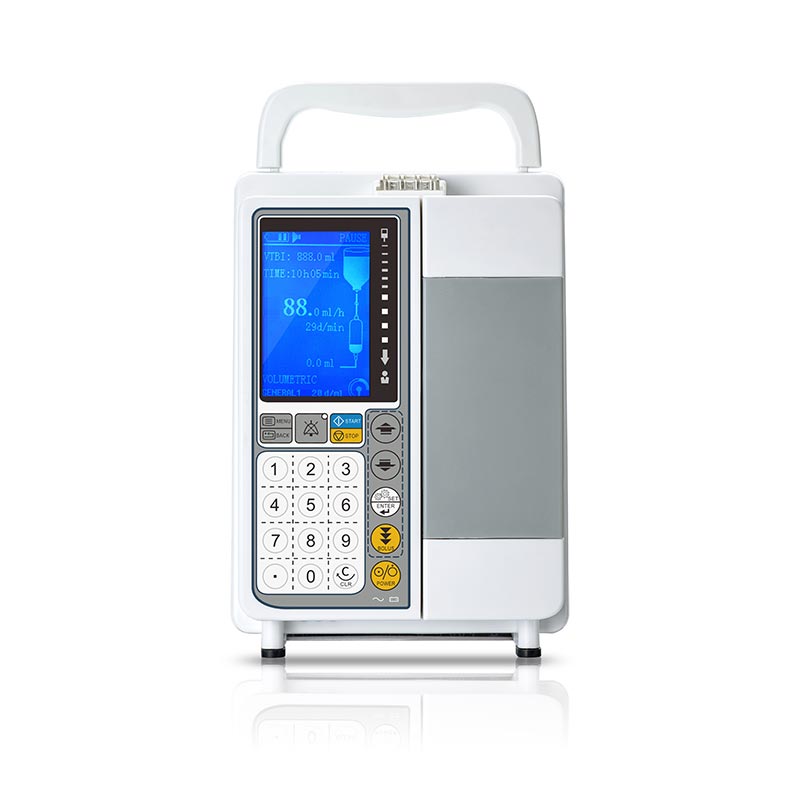

User Friendly Design: Ambulatory Infusion Pump features a large clear display screen and an intuitive numeric keypad for easy operation, efficient data input, and straightforward parameter setting.
Dual Occlusion Sensor:Ambulatory Infusion Pump adopts dual up-and-down occlusion sensors combined with an advanced DPS system, ensuring accurate and stable occlusion detection performance.
Infusion Mode:Ambulatory Infusion Pump is supports multiple working modes including volume infusion mode and time infusion mode to meet diverse clinical infusion requirements.
