Dual Channel Syringe Pump

HTSY® is Dual Channel Syringe Pump factory manufacturer from China.Our company has strong production capacity and standardized production lines, providing high-quality and cost-effective products for global customers.We have set up branches and offices worldwide, with a complete sales network and after-sales service system.Supported by mature logistics channels and 24/7 customer service, we are able to offer comprehensive, professional and attentive services.

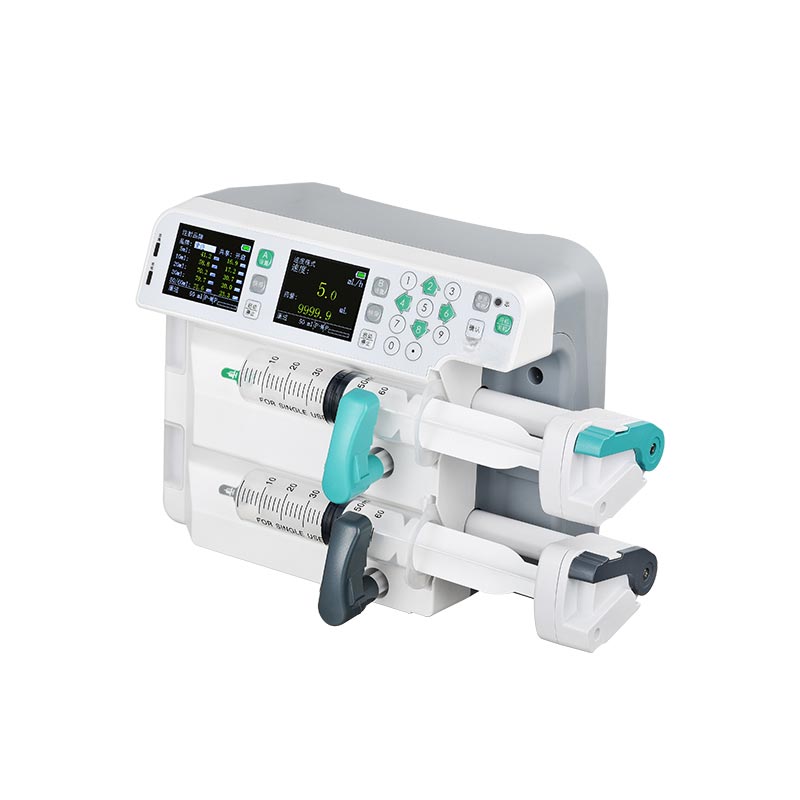

Dual Channel Syringe Pump(JP6) is with Dual-channel design,supports single/dual-channel simultaneous operation,and is compatible with multiple medication administration modes.Cascade mode enables seamless operational transition,reducing the risk of frequent medication replacement. Preloaded with 29 branded syringes and 2 custom syringes for better compatibility.

-Dual-channel Design
-Supports single/dual-channel simultaneous operation
-A/B Dual-screen Display

Product Parameter（Specification）

1. Syringe specification: Automatically recognizes various brands of syringes, specifications: 10 ml, 20 ml, 30 ml, 50 ml.

2. Flow rate range: 10 ml syringe: 0.1 - 400 ml/h; 20 ml syringe: 0.1 - 600 ml/h; 30 ml syringe: 0.1 - 900 ml/h; 50 ml syringe: 0.1 - 1300 ml/h. Flow rate error: ±2% < 100 ml/h. The flow rate can be increased or decreased in increments of 0.1 ml/h or 1 ml/h, and in increments of 1 ml/h or 10 ml/h for flow rates ≥ 100 ml/h.

3. Pre-set volume range: 0.1 ml - 9999.9 ml. Error: ±2%.
< 100 ml can be incremented or decremented by 0.1 ml or 1 ml; ≥ 100 ml can be incremented or decremented by 1 ml or 10 ml.

4. Pill dosage/pre-fill speed: 10 ml syringe: 400 ml/h; 20 ml syringe: 600 ml/h; 30 ml syringe: 900 ml/h; 50 ml syringe: 1300 ml/h; Error: ±5%.

5. Pill dosage range: 0.1 ml - 5 ml adjustable; can be incremented or decremented by 0.1 ml.

6. Blockage sensitivity: High, medium, and low options are available, ranging from 0.02 Mpa to 0.06 Mpa, 0.06 Mpa to 0.10 Mpa, and 0.10 Mpa to 0.14 Mpa.

7. KVO: Maintain vein open, speed range adjustable from 0.1 ml/h to 1 ml/h, can increment or decrement at a speed of 0.1 ml/h or 1 ml/h; KVO flow rate error ≤ ±5%.

8. Injection mode: Speed mode, time mode, weight mode, simple mode.

9. Two operation modes: keyboard and shuttle key, to meet the needs of different users.

10. Six dosage units: ml/h; ml/min; mg/kg/min; mg/kg/h; ug/kg/h; ug/kg/min.

11. Alarm functions: blockage alarm, syringe detachment alarm, approaching completion alarm, injection completion alarm, low pressure alarm, battery depletion alarm, AC power failure alarm, motor abnormality alarm, forgotten operation alarm, installation error alarm.

12. Other functions: automatic syringe recognition, pre-fill function, cumulative volume display, blockage pressure release function, silent function, speed out-of-range control, AC/DC automatic switching, residual indication, memory function, anti-siphon function, cumulative volume clearing function, custom syringe function, key lock function, clock setting, backlight delay.

13. Continuous operation: The injection pump can operate continuously for no less than 24 hours when powered by an AC power supply.

14. Operating environment: Temperature: 5℃ - 40℃, relative humidity: 30% - 75% (no condensation), atmospheric pressure: 860 hPa - 1060 hPa.

15. Storage environment: Temperature: -20℃ - 55℃, relative humidity: 10% - 93% (no condensation), atmospheric pressure: 700 hPa - 1060 hPa.

16. Power type: AC: AC 220V, tolerance ±10%; 50Hz ±1Hz; Battery: DC 11.1V, tolerance ±10%.

17. Battery working time: After the internal battery is fully charged, it can operate continuously at a flow rate of 5 ml/h for no less than 5 hours.

18. Overall power consumption: ≤ 15 VA

19. Size: 314mm x 167mm x 140mm

20. Weight: Approximately 2.5 kg 21. Safety classification: Class II CF type, with an enclosure protection rating of IPX3, capable of continuous operation

Product Feature And Application

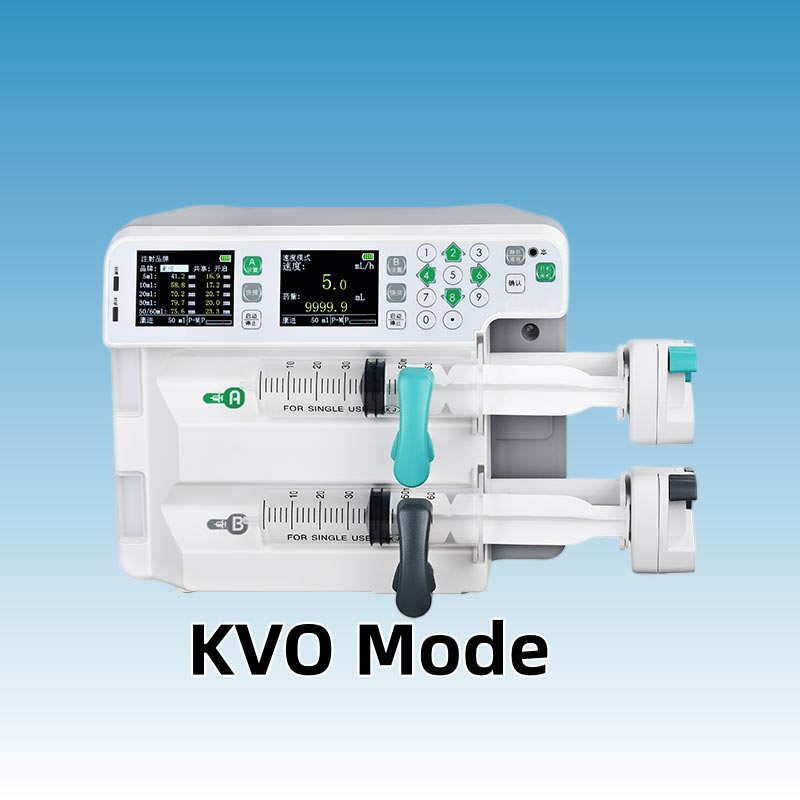

Dual Channel Syringe Pump(JP6) has user-Friendly Design.Multiple abnormal alarms(e.g.,occlusion,medication depletion) with audible and visual alerts to promptly notify medical staff.After injection completion,the syringe pump automatically enters KVO mode.

Production Details

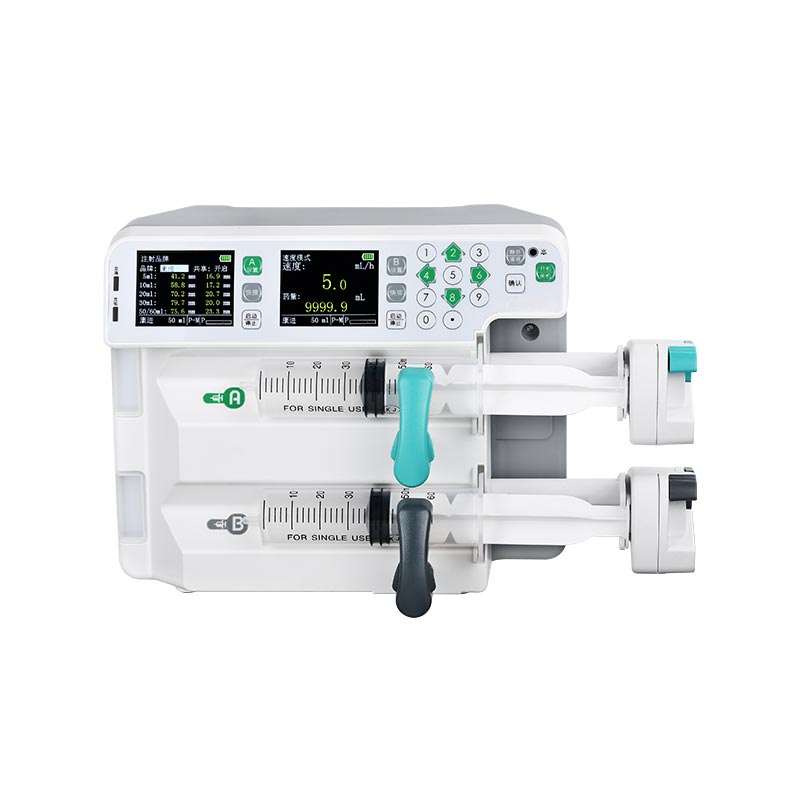

Dual Channel Syringe Pump(JP6) has Smaller size and lighter weight,easy to carry with better usability.A/B Dual-screen Display:operation and monitoring do not interfere with each other;equipped with a numeric keypad for more efficient operation.Night mode switchable : alarm volume is reduced and display brightness is lowered to decrease power consumption.
