Ultrasound Machine

HTSY® is Ultrasound Machine factory manufacturer from China.Our company is equipped with strong production capacity and standardized production lines, enabling us to provide customers with high-quality and cost-effective products.We have set up branches and offices in many regions around the world, forming a complete sales network and after-sales service system. In addition, we rely on mature logistics channels and 24/7 manual customer service to provide customers with comprehensive, high-quality and thoughtful support.

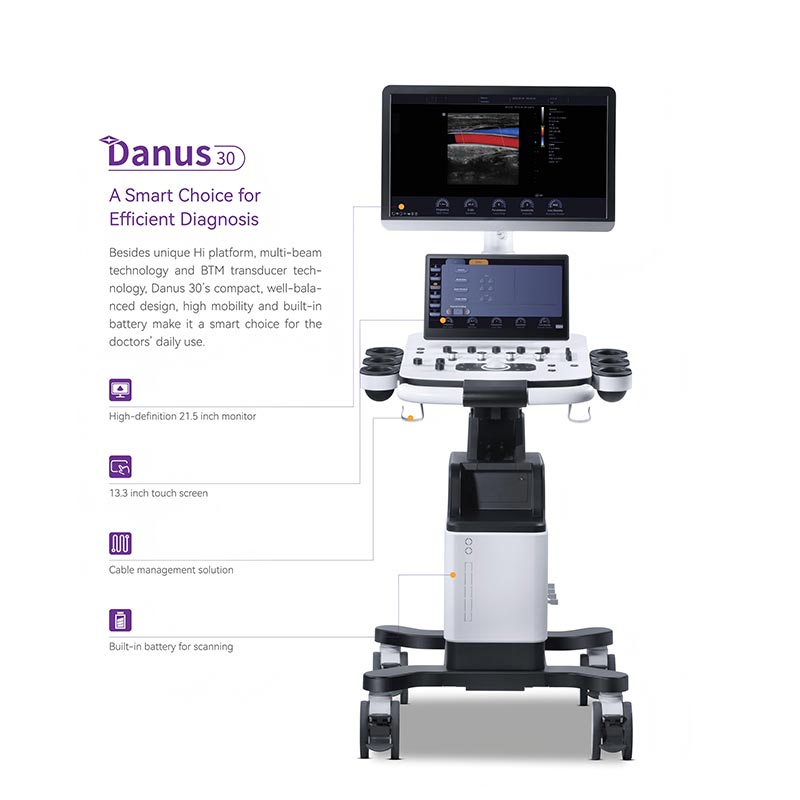

Ultrasound Machine is a Smart Choice for Efficient Diagnosis.Besides unique Hi platform,multi-beam technology and BTM transducer tech-nology, Danus 30's compact,well-bala- nced design,high  mobility and built-in battery make it a smart choice for the doctors'daily  use.

- High-definition 21.5 inch monitor
- 13.3 inch touch screen
- Cable management solution
- Built-in battery for scanning

Product Feature And Application

Advanced Platform

Ultrasound Machineis equipped with advanced medical technology.

-Hi Platform

“Hyper Imaging”is the 2nd generation beam forming technology. Multiple frames are acquired on every launch sequence for more detailed information.

-Hi Flow

Hi Flow uses the end-to-end adaptive blood flow algorithm,which can automatically choose the optimal data combination way after multiple times calculation, greatly improve the overall performance of blood  flow.

-SNS+

Automatically detect and suppress the speckle noise based on multi-dimension algorithm.Acquire and enhance tissue details from different directions,easily capture sub-millimeter level lesion or large organ boarder.

-OMG Original Mag Guard

The electromagnetic guard processing of whole system is to prevent the ultrasonic signal from electromagnetic interference during the transmission process,to ensure the stability of the signal transmission, so as to obtain a clearer image.

Unique BTM platform and precisely controlled process of transducer manufacturing

-Bonding technique

By uniform bonding process,adhesive to interconnect ceramic and lead is well controlled(max thickness:1μm)to improve performance  uniformity among elements.

-Triple matching layers

Higher sensitivity and wider bandwidth can be achieved through  triple  matching  layers.

-Micro-elements cutting

By micro-elements cutting,one element is cut into several sub-elements to increase sensitivity and bandwidth of transducer.

Advanced Applications

-Elastography

Real time elastography is a new noninvasive and painless technique that can help determine the hardness of organs and other structures such as breast,thyroid.Elastic imaging provides users with dynamic visual information and displays the rigidity of organs,which is helpful for direct and quantitative diagnosis and treatment.

-Panoramic

The extended field of view displays more image information without sacrificing image quality.A convenient approach for observing big-size organs,especially for MSK structure.

-eBiopsy+

The image of the puncture needle is  enhanced by the  deflection  of the acoustic beam,including needle enhancement,needle tip red rendering,virtual needle passage and scale line,supporting auto steering.

-Tissue Doppler Imaging

Tissue Doppler Imaging(TDI)is a robust andreproducible echocardiographic tool that employs the Doppler effect to assess muscle wall characteristics throughout the cardiac cycle including velocity,displacement,deformation,and event timings.It has permitted a  quantitative assessment of both global and regional function and timing  of  myocardial events.

Production Details

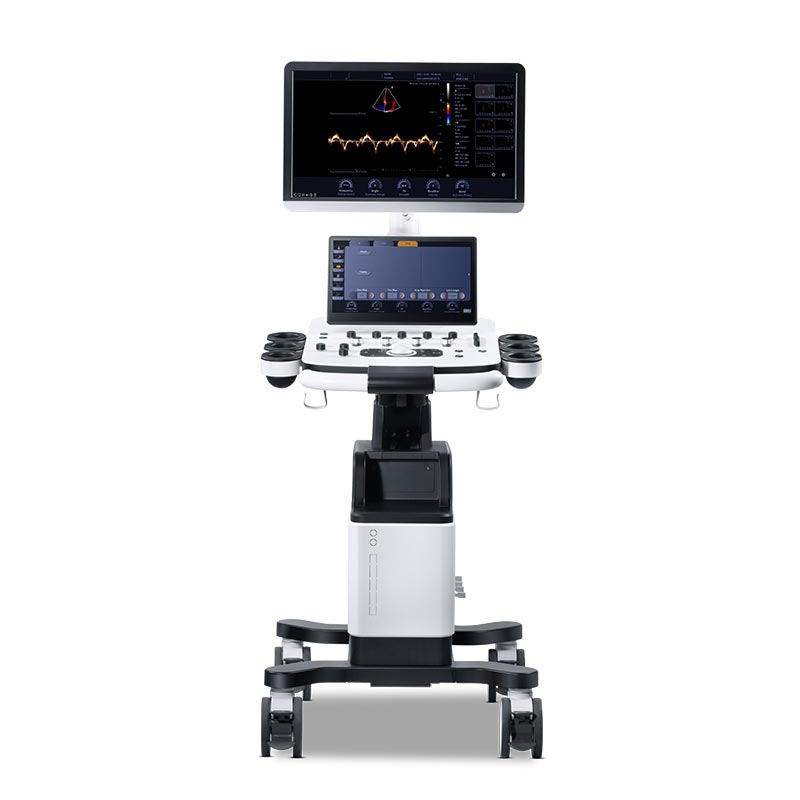

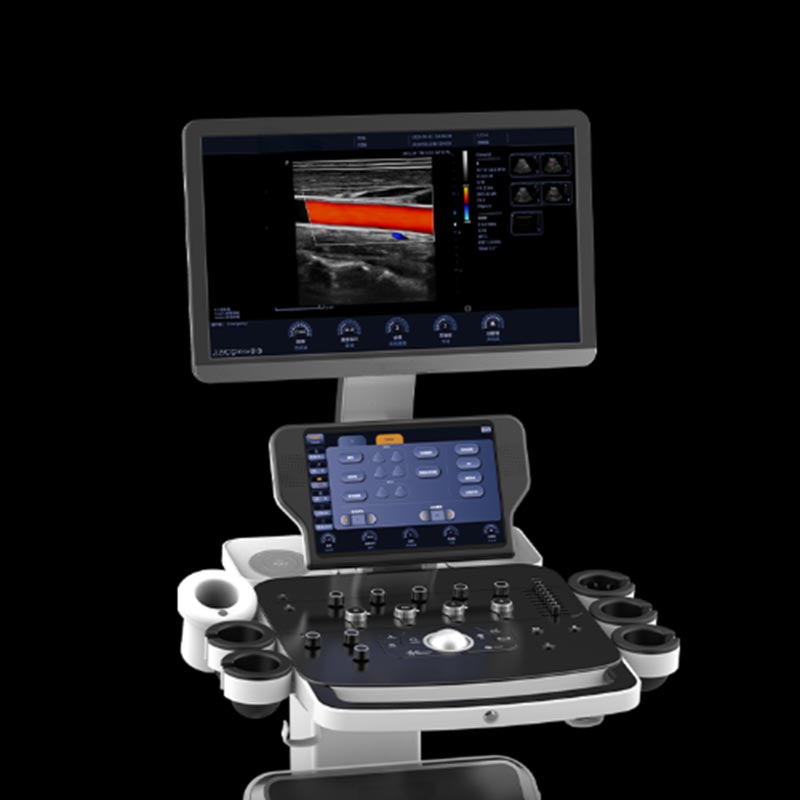

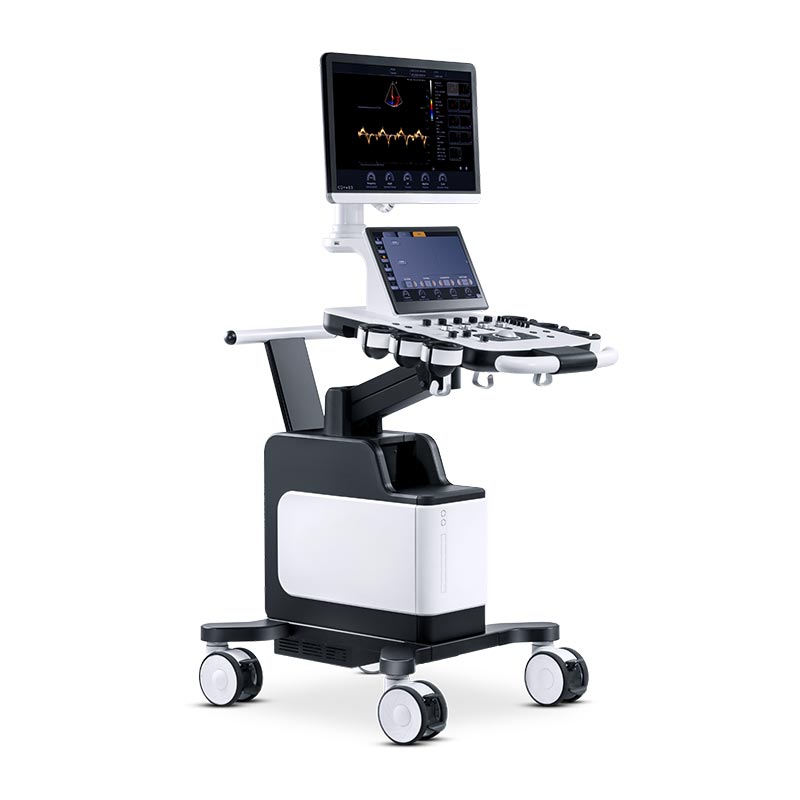

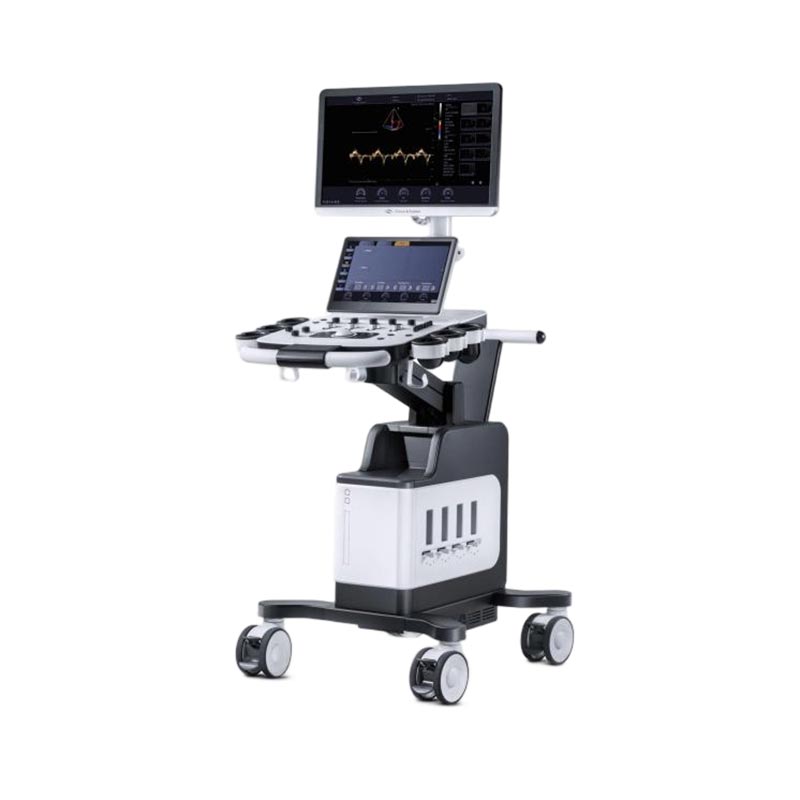

Ultrasound Machine(Danus 30)

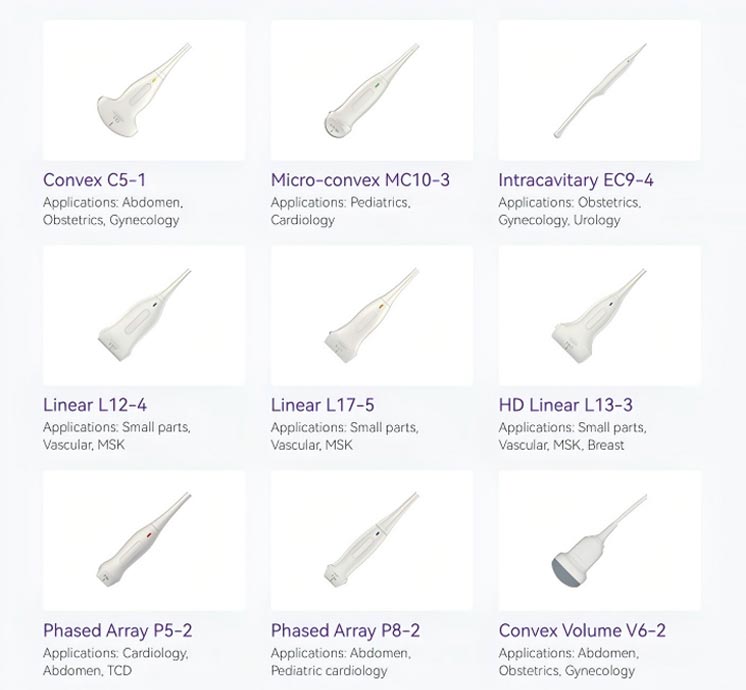

It supports a wide range of transducers for different applications,including convex,linear,phased-array,intracavitary,convex volume,XDiamondTM transducers, etc.With Focus &Fusion's unique BTM transducer technique,the performance goes beyond users'expectations.
