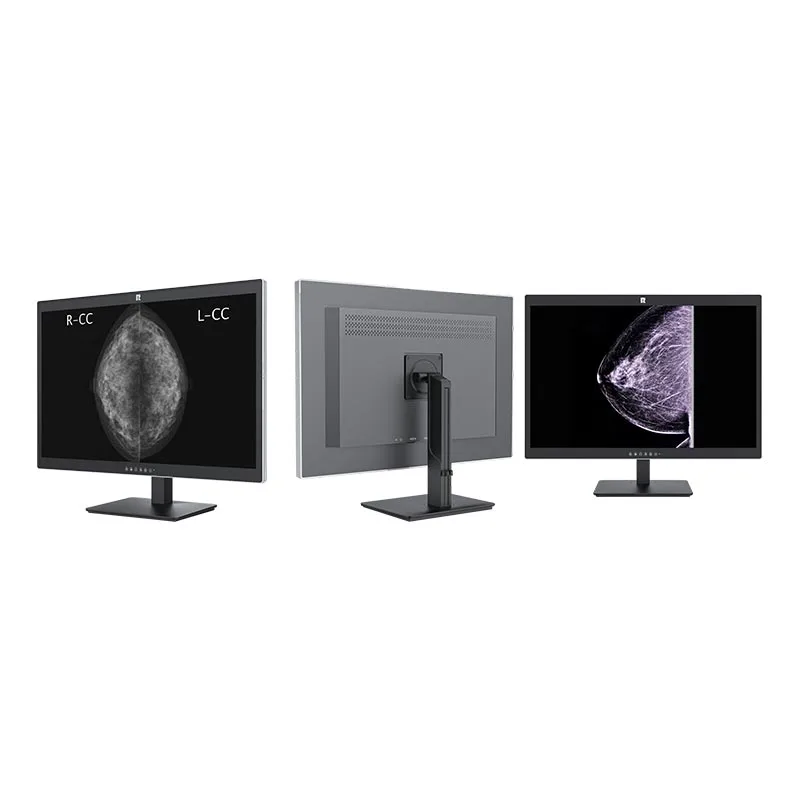

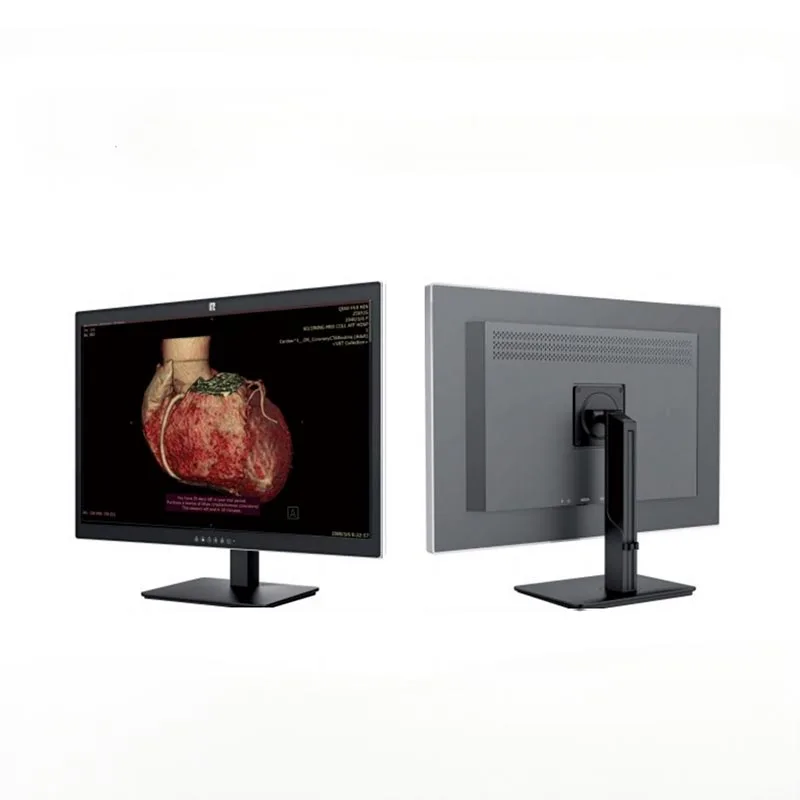

30-inch 6MP Medical Diagnostic Display

Product Overview

The HTSY® 30-inch 6MP Medical Diagnostic Display is equipped with a 30-inch professional medical TFT LCD panel, with a native resolution of 3280×2048. The large display area can fully display large-format images, reducing the need for frequent image dragging operations. The entire machine is made of aviation aluminum alloy casing with touch buttons, featuring a simple and sturdy appearance. The device has independent color and grayscale display capabilities, smooth dynamic image playback, and built-in multiple gamma correction curves, supporting flexible switching between color and grayscale modes. The screen has a peak brightness of up to 1300cd/m², combined with a high contrast panel, enabling clear capture of fine lesion information. Rich interfaces can be connected to various image post-processing devices. The constant backlight solution ensures stable image quality over the long term, and is suitable for long-term and high-intensity professional image reading work.

Product Parameters

Product Features

1. 6MP ultra-high resolution + large-sized frame, suitable for detailed analysis of complex images.

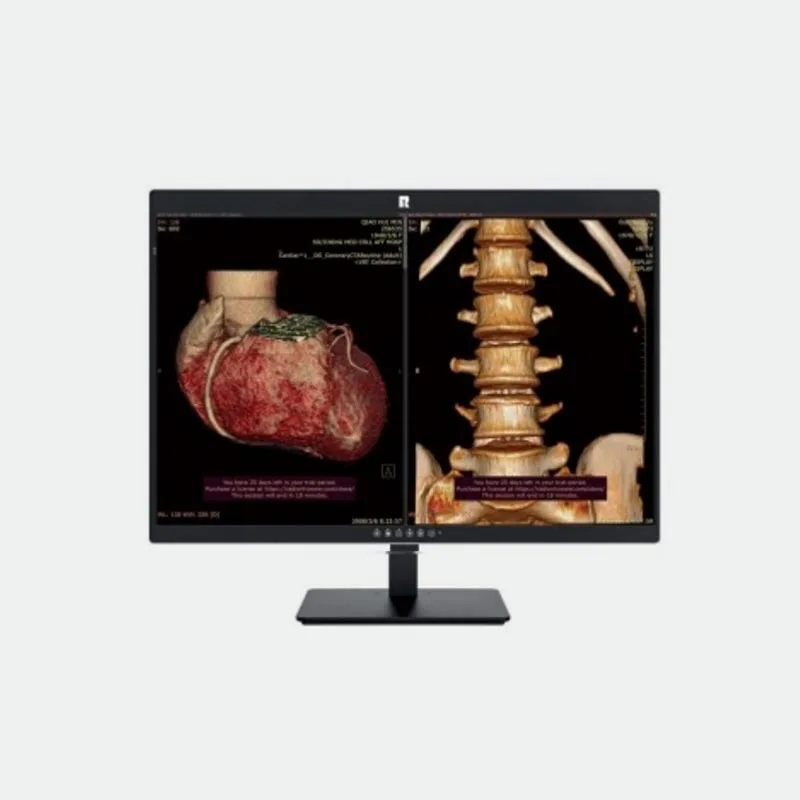

The HTSY® 30-inch 6MP Medical Diagnostic Display, with a 30-inch wide display area, can fully load large-format DR, CT, and MRI complete sequence images. It supports multi-group images being displayed side by side for parallel comparison, significantly reducing the need for frequent zooming and dragging of images, effectively improving the reading efficiency, and facilitating physicians to conduct multi-level and detailed comparative analysis of difficult cases and three-dimensional reconstruction images.

2. High-brightness professional panel, clearly distinguishable between strong and weak lesions

Our display screen can reach a maximum brightness of 1300cd/m². Combined with a high contrast liquid crystal panel, it can precisely distinguish the minute gray-scale differences between different density tissues of the human body. Small and faint nodules in the lungs, subtle lesions in soft tissues, and other undetectable signs can all be clearly presented. It effectively resists the interference from the indoor lighting in the reading room and ensures clearness for all-day reading.

3. Strictly follow the DICOM standard, with precise and uniform image display

The HTSY® 30-inch 6MP Medical Diagnostic Display is fully compliant with the DICOM medical image display specifications. It is equipped with multiple professional gamma correction curves to achieve precise gray-scale calibration, ensuring consistent image display effects across different time periods and devices. It also supports free switching between color and grayscale modes, and a single display can meet the viewing needs for radiographic grayscale images, functional imaging, and multimodal image fusion images.

4. Stable and constant backlight system, maintaining image quality without degradation even under long-term high-intensity use

This diagnostic display is equipped with a professional constant backlight control solution, which effectively reduces the brightness drift and grayscale deviation caused by the device's continuous operation for a long time, and delays the image distortion problems resulting from panel aging. It is suitable for the all-day professional radiology reading conditions, and even with long-term continuous use, it can still maintain stable and standard display effects, reducing the frequency of regular calibration.

5. Comprehensive interface configuration, flexible deployment suitable for high-end workstations

The HTSY® 30-inch 6MP Medical Diagnostic Display is equipped with multiple signal interfaces such as USB, HDMI, DVI, and DP, supporting simultaneous connection of multiple image post-processing hosts and diagnostic equipment; it is compatible with the VESA standard for wall-mounted installation, and is equipped with the function of freely adjusting the position of the image up, down, left, and right. The layout can be flexibly changed and is capable of perfectly adapting to various space layouts such as radiological diagnosis workstations, intraoperative image reference in the operating room, and multidisciplinary consultation meetings.

6. Smooth and dynamic image playback, compatible with multi-modal clinical applications

This high-end diagnostic display is equipped with an independent dual-channel display architecture for color and grayscale. The dynamic images play back smoothly without any lag, and can smoothly present DSA dynamic angiography, functional imaging, and three-dimensional reconstruction sequence images. It widely covers various advanced clinical scenarios such as routine medical image diagnosis, real-time imaging reference during surgery in the operating room, and preoperative condition assessment.
