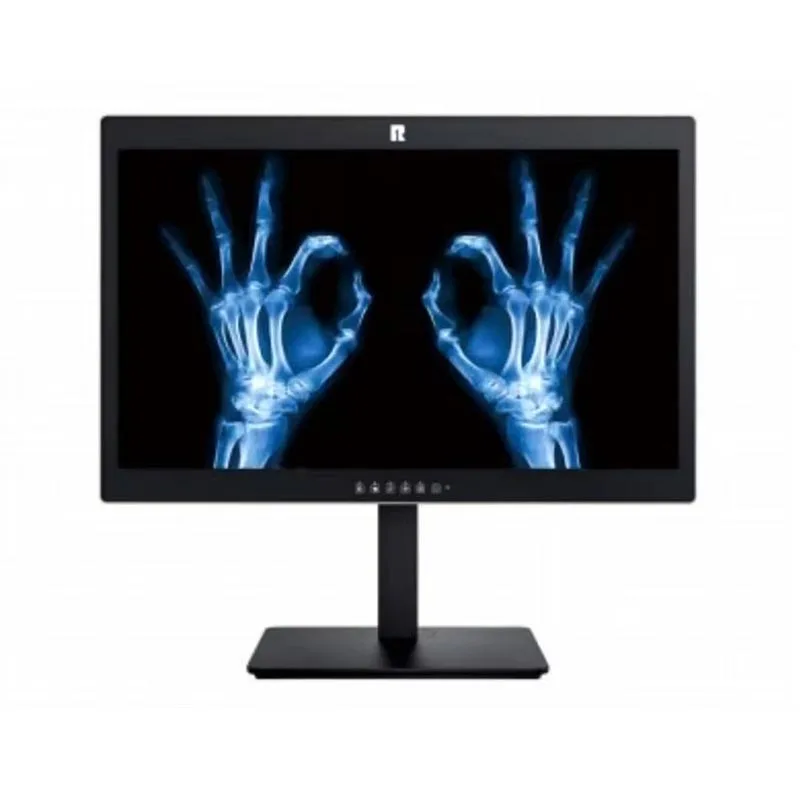

24-inch 2MP Medical Diagnostic Display

The HTSY® 24-inch 2MP Medical Diagnostic Display is equipped with a 24-inch professional medical LCD panel, featuring a native resolution of 1920×1200. It supports the free switching between horizontal and vertical screens and is suitable for DR, X-ray, conventional CT imaging, and three-dimensional reconstruction image viewing. The body is made of aviation aluminum alloy, equipped with touch control operation buttons, and has a simple and durable appearance. The device is equipped with multiple gamma correction curves, supports quick switching between color and grayscale modes, and has a one-click viewing light function, which can simulate the traditional film reading environment. The product is equipped with various types of signal input interfaces, compatible with mainstream imaging workstations, and the constant backlight design ensures stable long-term image output, meeting the routine daytime and intermittent non-stop reading requirements of medical institutions.

Product Parameters

Product Features

1. Dual-display mode for one machine, covering diverse clinical reading scenarios

The HTSY® 24-inch 2MP Medical Diagnostic Display supports seamless switching between grayscale diagnostic mode and color imaging mode. With a single device, it can meet the reading needs of radiographic grayscale images and multimodal functional images, eliminating the need for additional display equipment purchases and effectively saving the hardware investment of the department. It is highly suitable for outpatient consultation rooms, routine imaging diagnosis and other comprehensive application scenarios.

2. Image calibration in accordance with DICOM standards, accurately restoring grayscale details

This diagnostic display is fully compliant with the DICOM medical image display specifications. It is equipped with multiple professional gamma correction curves, which can fully restore the rich grayscale levels of medical images, clearly presenting the texture of soft tissues and tiny lesions, ensuring consistent display effects across different sources of images, and providing reliable visual evidence for clinical diagnosis.

3. Constant backlight design, maintaining stable picture output for a long time

The HTSY® 24-inch 2MP Medical Diagnostic Display is equipped with a constant backlight control system. It effectively prevents the attenuation and deviation of brightness caused by long-term operation, continuously maintaining uniform screen brightness, reducing image distortion caused by panel aging, and lowering the risk of misjudgment during image reading. It is suitable for hospital environments with long-term continuous operation.

4. Complete interfaces, adjustable installation, suitable for deployment in various clinics

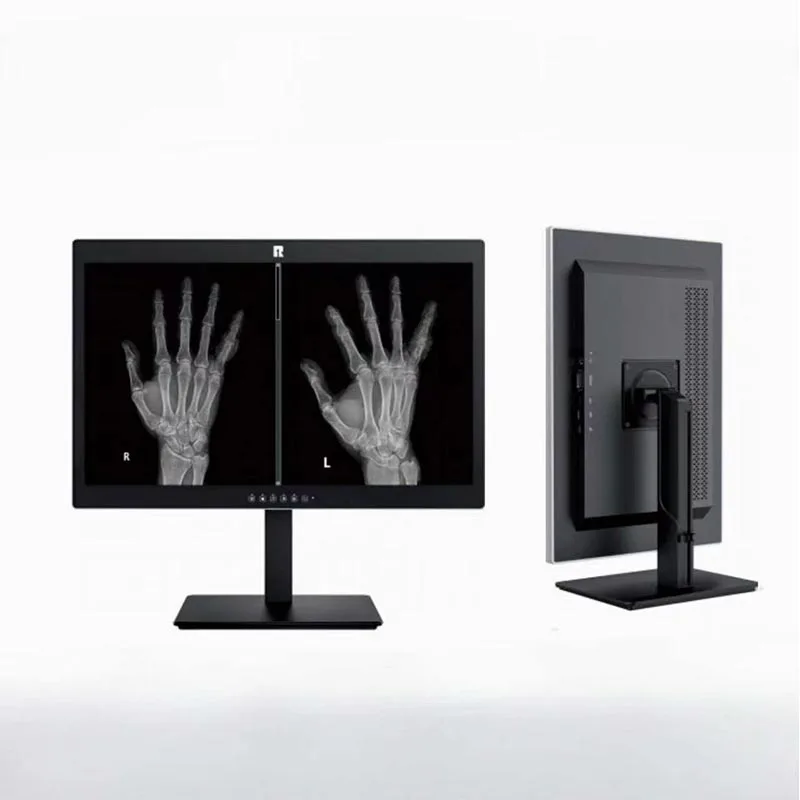

Our diagnostic display is equipped with multiple signal interfaces such as HDMI, DVI, DP, and USB, supporting simultaneous connection of multiple links; it is compatible with the VESA 100×100mm standard for wall mounting. The display supports flexible switching between horizontal and vertical screens, and the picture can be finely adjusted up and down, left and right, easily adapting to different space layouts such as imaging workstations, integrated reading rooms, and outpatient offices.

5. Multiple medical practical functions, in line with physicians' daily reading habits

The HTSY® 24-inch 2MP Medical Diagnostic Display is equipped with multiple preset display modes and comes with a one-click viewing light function, enabling quick replication of the traditional film reading environment. The aircraft-grade aluminum alloy casing has excellent light transmission properties, combined with simple touch-sensitive buttons, making the operation straightforward. The device has a wide range of temperature and humidity, as well as air pressure working intervals, with strong adaptability to the environment and capable of stably meeting the complex usage conditions in hospitals.
