55-inch 4K Endoscopic Display

The TH550S is a 55-inch 4K ultra-high-definition medical monitor. It is designed for operating rooms and endoscopy suites. It uses IPS panel technology. Its resolution is 3840×2160. Its brightness is 700 cd/m². It meets the DICOM medical imaging standard. It is suitable for real-time display of medical imaging equipment such as surgical endoscopes and surgical microscopes. It supports multi-screen splitting, picture-in-picture, and long-distance signal transmission. It has a full metal housing. It is dustproof and waterproof. It adapts to strict sterile operating room environments.

Product Parameter （Specification）

Product Selling points

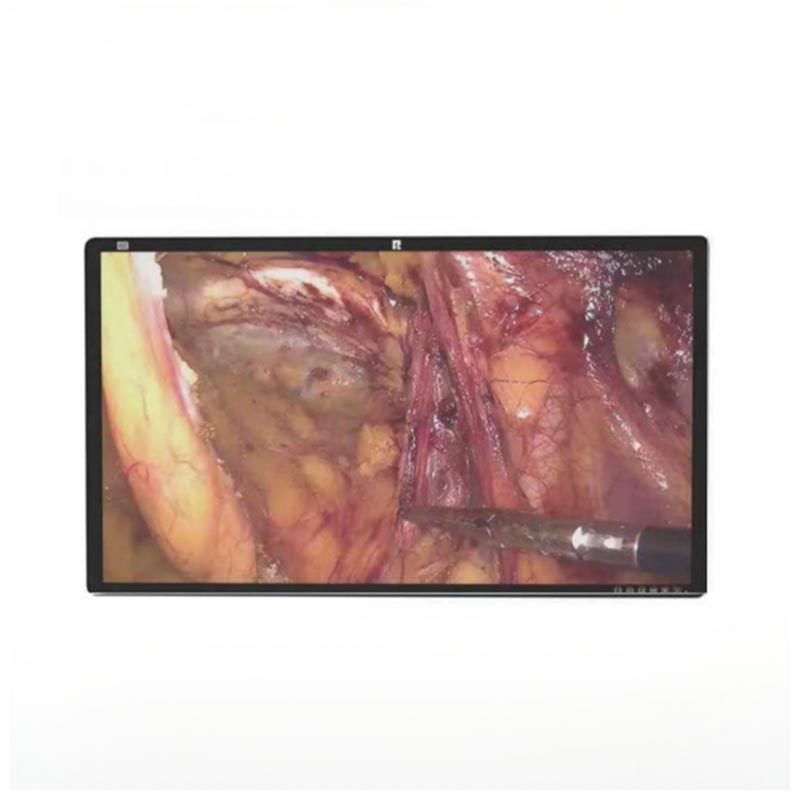

TheHTSY® 55-inch 4K Endoscopic Display uses a 55-inch IPS panel. Its resolution is as high as 3840×2160 (4K). Its brightness is 700 cd/m². Its contrast ratio is 1500:1. It has a full viewing angle of 178°. Its response time is ≤15ms. With 1.07 billion colors, it can truly reproduce human tissue layers, mucosal textures, and capillary directions. Whether it is an endoscope image or a surgical microscope image, the monitor helps doctors see more clearly and judge more accurately.

This monitor fully complies with the DICOM Part 14 medical imaging standard. It has multiple built-in selectable gamma curves. These curves are 1.8, 2.0, 2.2, 2.4, 2.6, and DICOM. It can quickly match the output signals of different endoscopes and medical devices. Its color saturation is high. Its reproduction of skin tones and tissue layers is true to life. It meets the display requirements for clinical diagnosis. It reduces visual misjudgment.

The monitor has an all-metal body. Its surface has an anti-reflective coating and tempered glass protection. It has a dustproof and waterproof structure. It meets the cleanliness requirements of operating rooms. It has built-in shielding circuits. The circuits can effectively resist electromagnetic interference from electronic surgical equipment such as high-frequency electrosurgical units and coagulation devices. They prevent image jitter or black screen. They ensure stable and reliable display during surgery. The monitor supports VESA standard mounting.

The monitor provides 10 signal inputs. These include four HDMI, one DP, three 3G-SDI, two 12G-SDI, and one USB. It supports long-distance lossless transmission of 100 to 300 meters. It has multiple display modes, including full screen, two-way split, four-way split, and picture-in-picture. Doctors can quickly switch between screens using a remote control or buttons. They can easily view endoscopic, ultrasound, or vital sign images at the same time. This optimizes the surgical workflow.
