27-Inch 8MP Medical Diagnostic Display
Tianjin Hanteng Shengshi Technology Co., Ltd. specializes in producing HTSY® quality 27-Inch 8MP Medical Diagnostic Display devices. The company is an integrated medical health services provider. It also offers medical technology services, health management consulting, and high-quality medical device sales. Our products are exported to over 100 countries, including the US, Canada, Brazil, France, Russia, South Africa, Thailand, and India. We have received many positive reviews. If you are interested in our products, please contact us. We will give you a clear introduction and help you find the right product for your needs.
Send Inquiry
Product Description

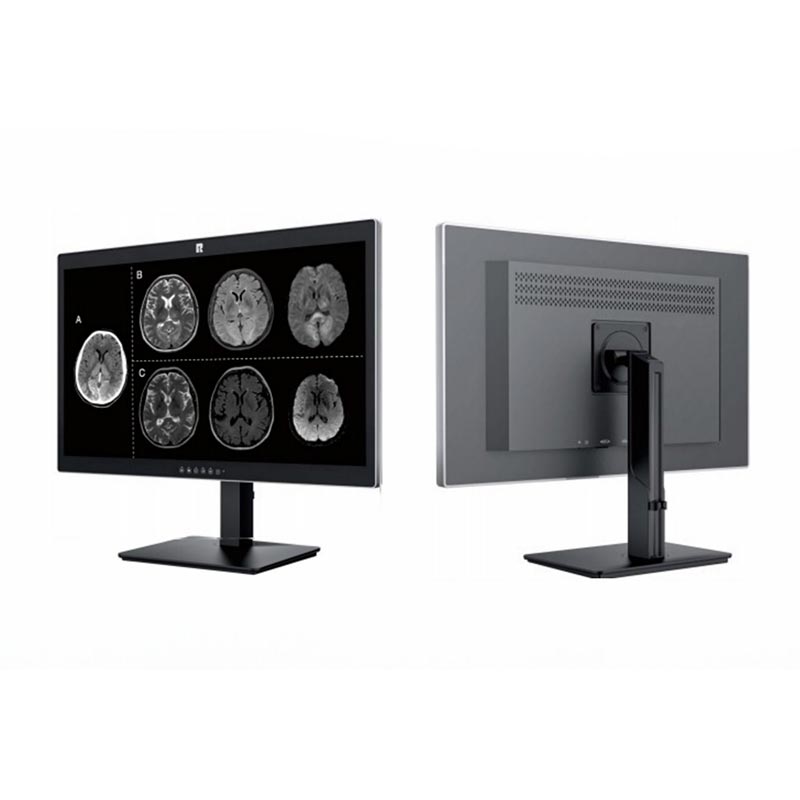

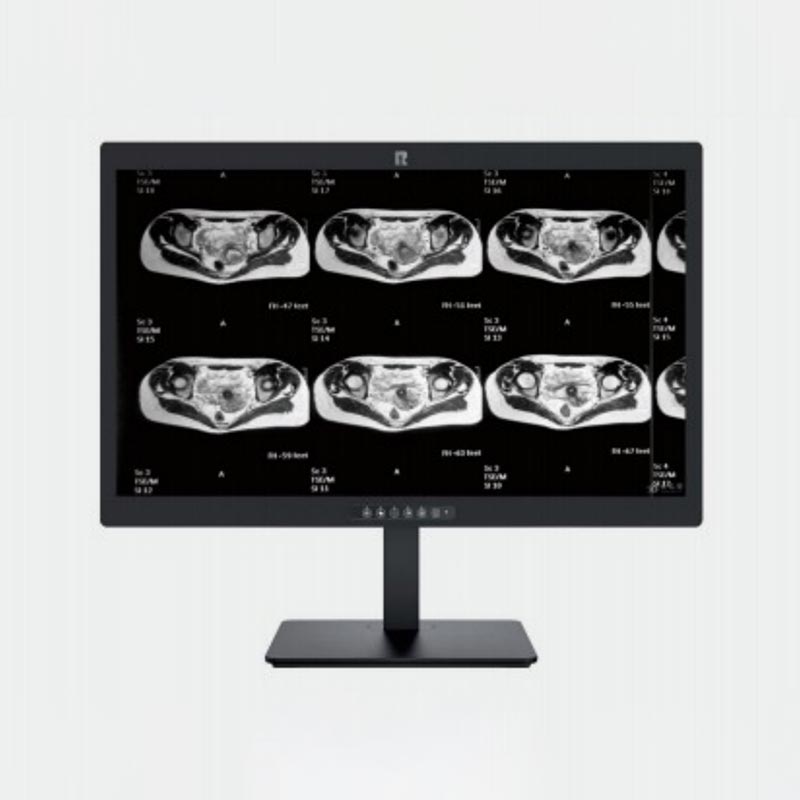

HTSY® durable 27-Inch 8MP Medical Diagnostic Display is a high-end professional display designed specifically for medical imaging diagnosis. With a 27-inch screen and ultra-high 8-megapixel resolution, it delivers exceptional image detail, making it ideal for demanding environments like radiology, nuclear medicine, and pathology. It is widely used in medical image diagnosis, real-time image guidance in operating rooms, image fusion analysis, functional imaging assessment, and 3D reconstruction viewing. The display helps doctors obtain more reliable visual references for complex lesion identification and surgical planning. Whether for CT, MRI, PET, or digital mammography images, it provides stable output that meets the DICOM medical display standard, ensuring accurate grayscale and color reproduction.
Product Parameter （Specification）
| 27-Inch 8MP Medical Diagnostic Display | ||
| Model | RY-KL800S | |
| Display size | 27 (Color, Grayscale) | |
| Surface | Aerospace aluminum profiles, touch buttons, high light transmittance | |
| Display area (W×H) | 596.73mm*335.66mm | |
| Source | External power supply 12V/5A | |
| TFT LCD | Physical resolution | 3840-2160 |
| Display color | 10-bit | |
| Dotpitch (mm) | 0.1554(H) × 0.1554(V) | |
| Vertical level | 178° Typ | |
| Brightness (cd/m2) | 400cd/m2 | |
| Contrast ratio | 2000:1 (Typ.) | |
| Response time | 14msTyp | |
| Input signal interface | USB/HDMI/DVI/DP | |
| Installation standard | VESA 100×100mm | |
| Power dissipation | 60W max | |
| Energy conservation | EPA、VESA | |
| Machine color | Silver/Black | |
| Temperature | Storage and transportation: 10°C-35°C (optimal performance)/0°C-40°C (maximum safety) | |
| Humidity operating conditions | Working conditions: 20%-85% R.H (no condensation);Storage and transportation: 10%-90% R.H (no condensation) | |
| Atmos | Working pressure: 600H.Pa-1060H.Pa | |
Product Selling points

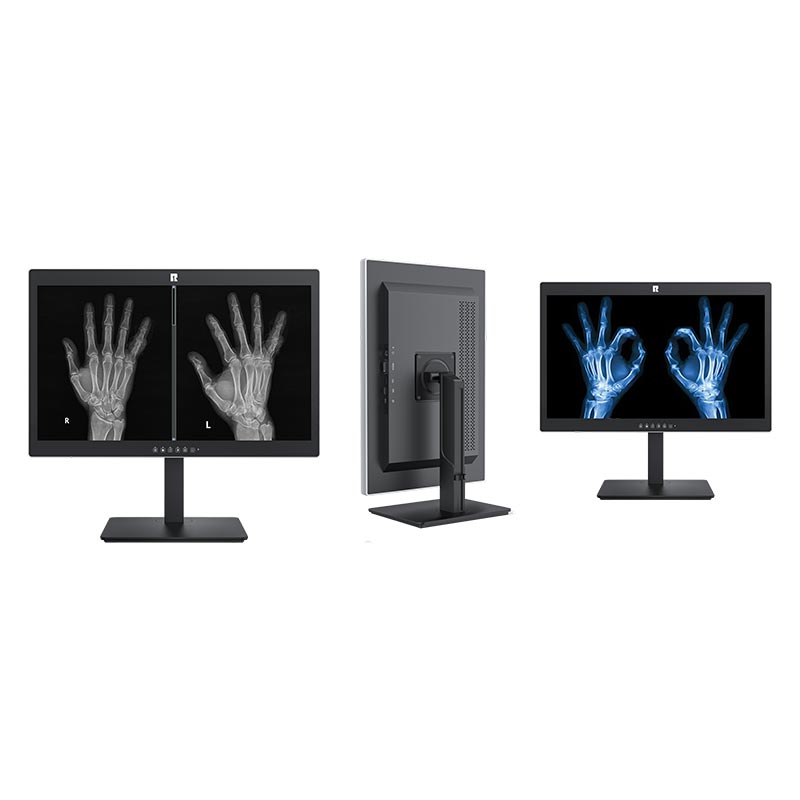

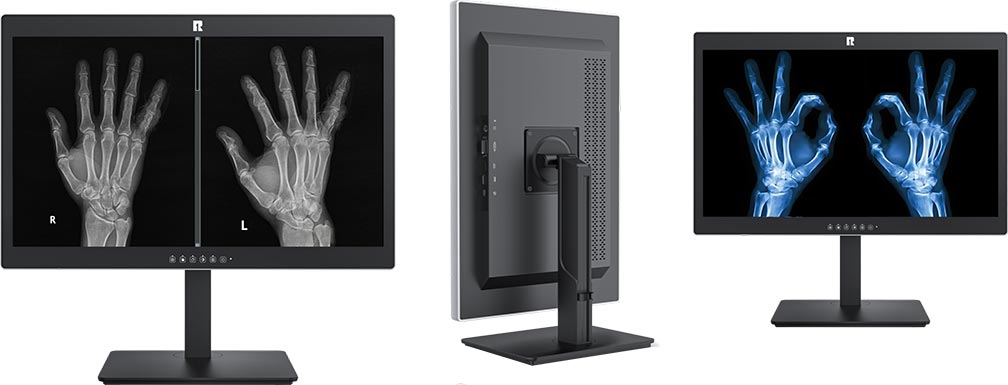

But the real value of this HTSY®27-Inch 8MP Medical Diagnostic Display is not just in seeing clearly-it's in seeing accurately. It features a constant backlight design that prevents brightness loss over long-term use. With multiple built-in GAMMA curves, you can easily switch between different imaging modalities. The one-click split-screen function and independent grayscale/color mode switching let doctors view different exam sequences without constantly adjusting the device. The one-click film viewer mode provides a seamless transition between traditional film reading and modern digital reading. The display also supports free rotation between landscape and portrait orientations, allowing full viewing of long‑axis images such as coronal and sagittal views. All these professional capabilities are packed into a device that meets DICOM standards and delivers industry-leading brightness and contrast-so that every diagnosis you make is more confident and precise.

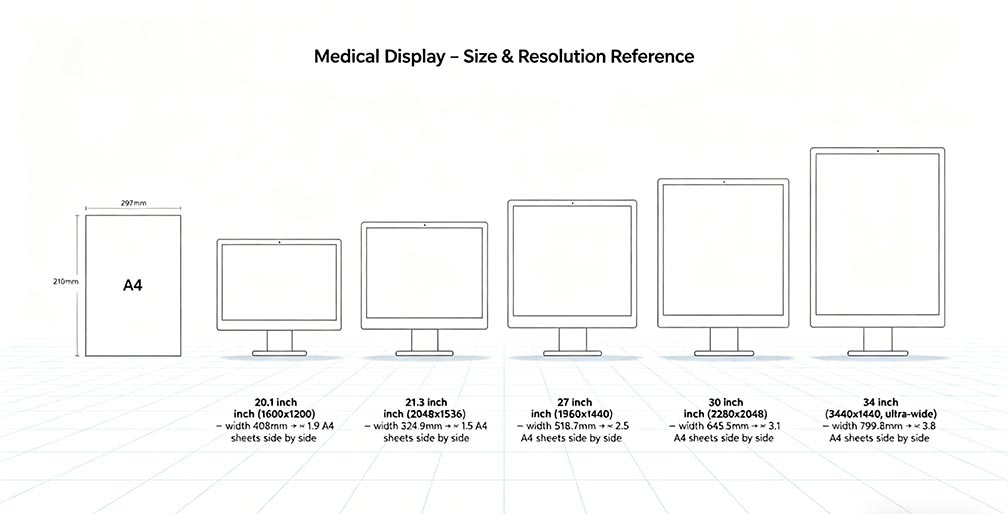

To help different departments and usage scenarios find the most suitable device, we also offer medical displays in a variety of sizes and resolutions. A handy table shows typical applications for each size, along with an intuitive size comparison chart using an A4 sheet of paper as a reference.
20.1 inches -About the size of an A3 sheet of paper. Good for viewing one small image at a time.
21.3 inches -The entry size for standard medical monitors. Can show a full chest X‑ray as a thumbnail.
27 inches (this model) -Shows a full CT or MRI series at 100% size, with extra space for toolbars. Very comfortable to use.
30 inches and above -Can display two image sets side by side. Great for comparing images (e.g., before and after).
| Size | Typical Applications |
| 20.1" | PACS workstation secondary display, report reading, corridor info screen, cost-effective setup |
| 21.3" | Routine CT, MRI, X-ray reading; primary hospitals, emergency departments (standard diagnostic size) |
| 24" | Doctor's office, outpatient display, ultrasound image review, balanced text and image viewing |
| 27" | Daily radiology reading–the "golden size" balancing clarity and field of view |
| 30" | High-end diagnostic workstations, teaching presentations, dual-screen replacement (one screen shows two images) |
| 32" | Multi-modality fusion comparison, interventional procedure navigation, main screen in consultation centers (large field of view) |
| 34" | Widescreen display, ideal for viewing multiple image sequences simultaneously (e.g., PET/CT, echocardiography) |
You can quickly match the most ideal display solution according to your actual needs.
If you are not sure which model fits your needs, or if you want more details like technical specs, certificates, bulk prices, or sample policy, please feel free to contact us.
We offer one-on-one professional advice to help you quickly find the right and most cost-effective model for your work.You can reach us directly.
Welcome to contact us for our quality 27-Inch 8MP Medical Diagnostic Display. We look forward to working with you!
