27 inch 4K Endoscopic Display

Tianjin Hanteng Shengshi Technology Co., Ltd. specializes in producing HTSY®27 inch 4K Endoscopic Display devices. The company is an integrated medical health services provider. It also offers medical technology services, health management consulting, and high-quality medical device sales. Our products are exported to over 100 countries, including the US, Canada, Brazil, France, Russia, South Africa, Thailand, and India. We have received many positive reviews. If you are interested in our products, please contact us. We will give you a clear introduction and help you find the right product for your needs.

Send Inquiry

Product Description

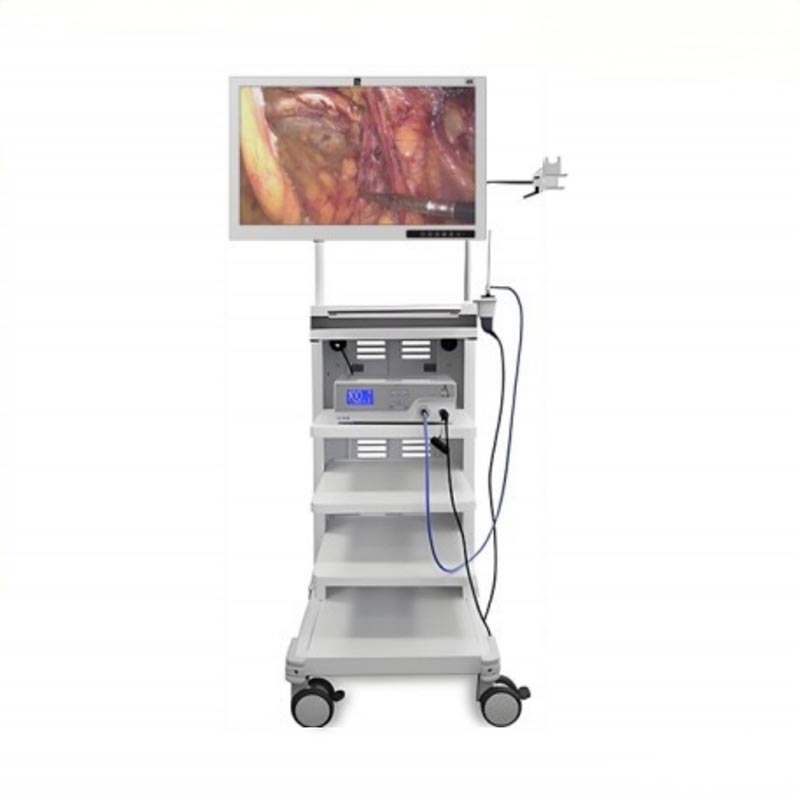

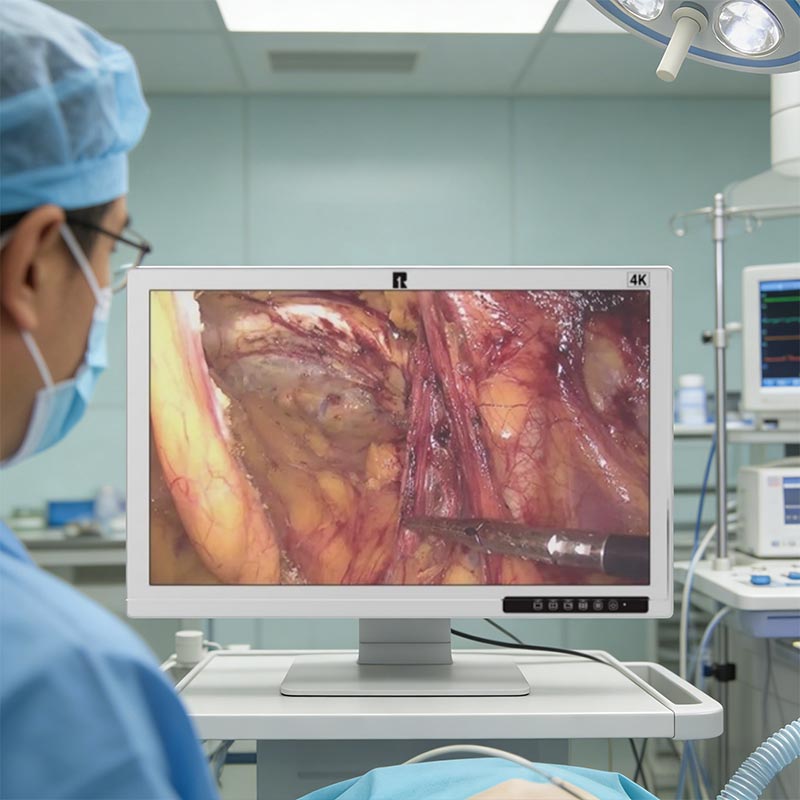

The THD005 is a HTSY®27 inch 4K Endoscopic Display surgical medical display.It has very clear and bright pictures.Doctors can use it with endoscopes, microscopes, or other medical cameras. The screen shows surgical videos and images at up to 3840x2160 resolution. Its flat design fits well into operating rooms and endoscopic systems. You can hang it on a wall or mount it on a medical cart or an OR dolly arm. The display also lets you see multiple images at once-for example, full screen, two or four splits, picture-in-picture, mirror, or flip. This helps doctors work more flexibly.

Product Parameter (Specification)

27 Technical Specifications of 4K Surgical Display & Endoscope Screen (RY-THD00S)
Order number	Qualification	Parameter content
1	Screen specifications	4K HD, 27-inch IPS hard screen technology, resolution ≥3840×2160, contrast ratio ≥1000:1, full viewing angle ≥178°, response time ≤9 ms, maximum brightness ≥1000cd/m², color depth: 1.07B, display area W×H: 596.736×335.664 mm
2	Hull	Full metal casing structure with white/black baked paint finish, featuring anti-reflective coating and tempered glass protection
3	Luminance	≥1000 cd/m²
4	Medical Imaging Standards	Fully compliant with the DICOM3.14 standard
5	Safety requirements	The device features a dustproof and waterproof design to meet the purification requirements of surgical equipment in operating rooms. Its enclosed housing effectively prevents contamination from dust and liquids during operation. The metal casing incorporates built-in shielding circuits, which effectively mitigate interference from electronic surgical equipment such as high-frequency electroicsurgical systems on the monitor, ensuring stable surgical display.
6	Output signal interface	HDMI*1 (ring output)
7	Screen operations	Remote & Buttons
8	Menu language	Built-in Chinese, English, and other languages
9	Signal transmission	Supports long-distance signal transmission with attenuation-free display over distances of 100-300 meters
10	Power requirement	AC: 100–240V,5A,50/60Hz with safety protection
11	Power	Maximum power: 100W, standby power: ≤0.5W

Product Selling points

The THD005 is a HTSY®27 inch 4K Endoscopic Display surgical medical display.It has a 27‑inch 4K screen. The screen resolution is 3840 × 2160. Its brightness is 1000 cd/m². Its contrast ratio is 1000:1. It has a 178‑degree wide viewing angle. It also has a fast 9‑millisecond response time. This reduces motion blur effectively. It can show 107 million colors. Whether you are looking at live video or still images from an endoscope, a surgical microscope, or other medical imaging devices, the picture is clear and sharp, with rich detail and good contrast. This helps the medical team see tissue boundaries and lesion features clearly.

The monitor has a completely flat, smooth design with no hard‑to‑clean corners. It has a protective glass screen that resists glare, reflections, and fingerprints. This glass greatly reduces reflection from surgical lights. It also allows fast cleaning and disinfection. This design perfectly meets the high cleanliness requirements of a laminar flow operating room. It helps doctors avoid glare and hard‑to‑clean spots during critical operations.

In terms of flexibility, the Taihang THD00S supports multiple displays at the same time. You can easily switch between different display modes, including full screen, split screen , picture‑in‑picture, mirror, and flip. This meets clinical needs such as comparing multiple video signals on one screen or switching between main and secondary views. It greatly improves surgeons' efficiency and decision‑making convenience during complex surgeries.

The HTSY®27 inch 4K Endoscopic Display also has many input and output ports. These include four HDMI ports, one DP port, three 3G‑SDI ports, two 12G‑SDI ports, and a USB port. It also has one HDMI loop‑out port. This makes it easy to integrate with an endoscope system or the existing audio‑video setup in an operating room. The whole monitor can be easily hung on a ceiling arm or installed on a medical cart. It fits different operating room layouts flexibly. It provides stable and reliable image support for clinical users.
