Veterinary Patient Monitor

The HTSY® Veterinary Patient Monitor in China is a professional monitoring device specially designed for animal medical care. This product enables convenient, non-invasive, and real-time monitoring of multiple key vital signs in animals. Its greatest advantages lie in excellent low-perfusion signal capture capability, high success rate in once NIBP measurement, and wide adaptability to animals of different sizes.

Send Inquiry

Product Description

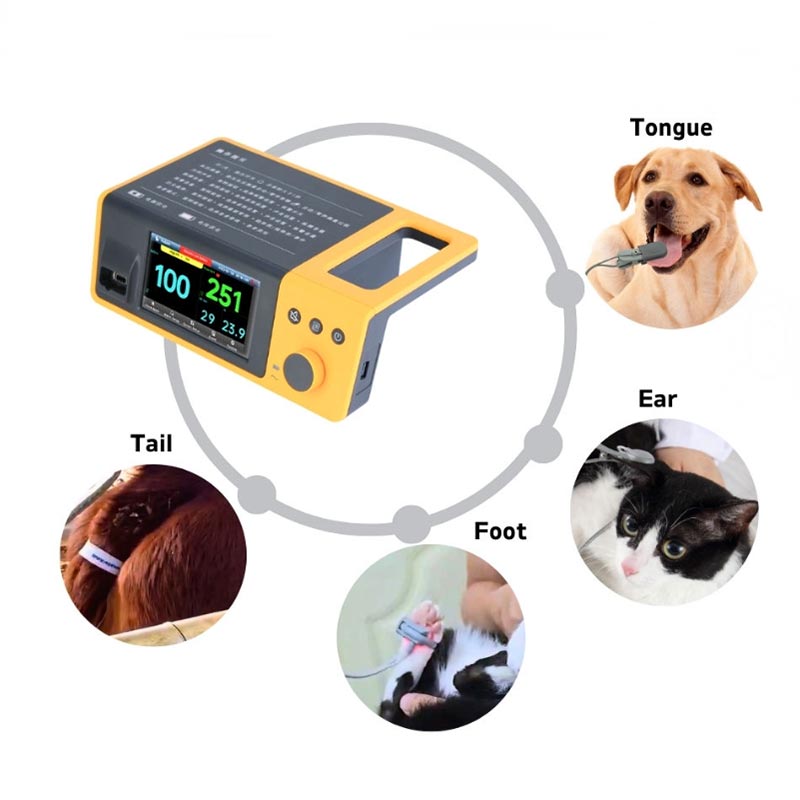

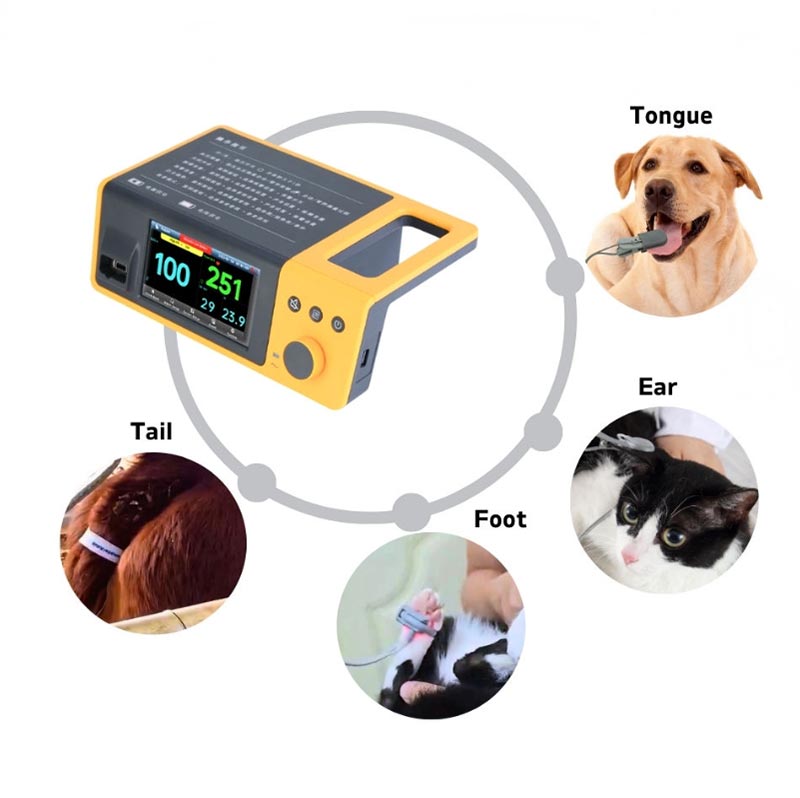

HTSY® quality Veterinary Patient Monitor employs unique dynamic signal capture technology and intelligent algorithms to achieve stable and accurate measurements even at low-perfusion sites such as ears or tails. Whether for intraoperative monitoring, critical care, or routine health checks, it provides veterinarians with accurate and reliable data support, helping to enhance the level of animal diagnosis and care quality. With excellent low perfusion performance, it maintains stable SpO₂ measurement even at a perfusion index as low as 0.025%, making it suitable for animals of various sizes and coat types.

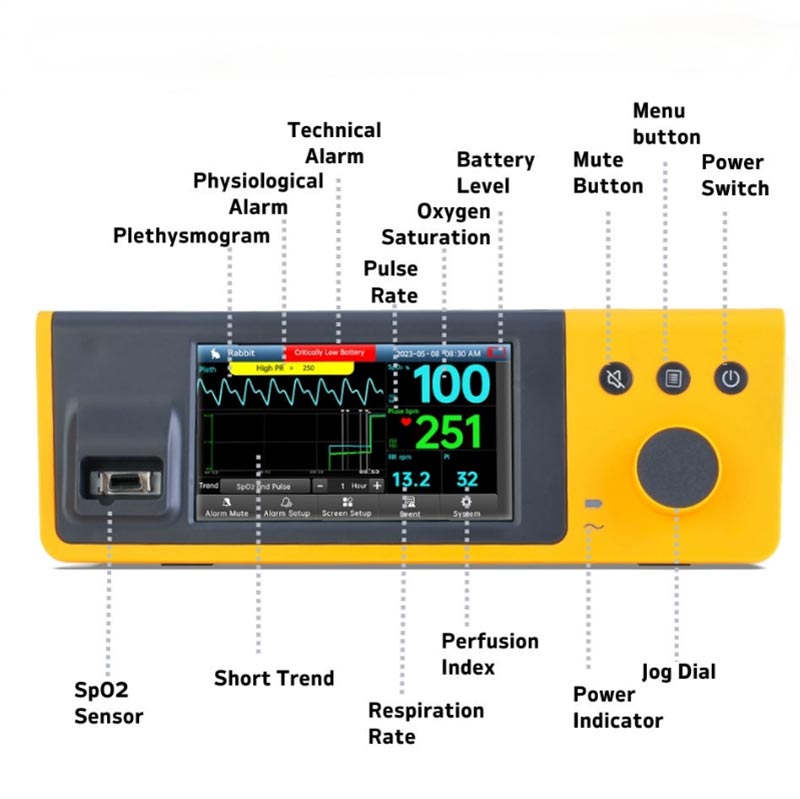

The HTSY® device features one-button blood pressure measurement, intelligently adjusts cuff pressure, reduces repeated inflation, and improves animal comfort and measurement success rate. A 5.0-inch wide-view TFT screen clearly displays waveforms and data, supporting bar graphs and pulse wave displays for easy real-time observation and analysis. With high accuracy and reliability, it is highly trusted and recognized by veterinary clinics, animal hospitals, and research institutions. If you have any questions or cooperation intentions, please feel free to contact us.

Veterinary Patient Monitor

Product Parameters

Display Screen	2.8inch TFT	Low Perfusion Performance	when low perfusion is as low as 0.1% Measurement accuracy: SpO2±2% and PR ±2bpm
Display	SPO2\PR\PI\TEMP	Waveform Output	Bar diagram/Pulse wave
SpO2 Measurement	35%~100%	Communication Mode	Serial port communication/3.3V
SpO2 Accuracy	±2%（70%~100%）	Probe Off Detection/ Probe Failure Detection	Yes
SpO2 Resolution	1%	Alarm Management	Yes
PR Measurement	25-300bpm	Breathing Measurement (RR)	Option/4-70rmp
PR Accuracy	The greater of ±2bpm and ±2%	Temperature	Option
PI Display Range	0.02%~20%	Power Supply	Four AAA battery,1.5V/ Type-C 5V DC
Anti-motion Performance	SpO2: ±3%; PR: The greater of ±4bpm and ±4%	Storage	Over 360 hours/Multi-user management

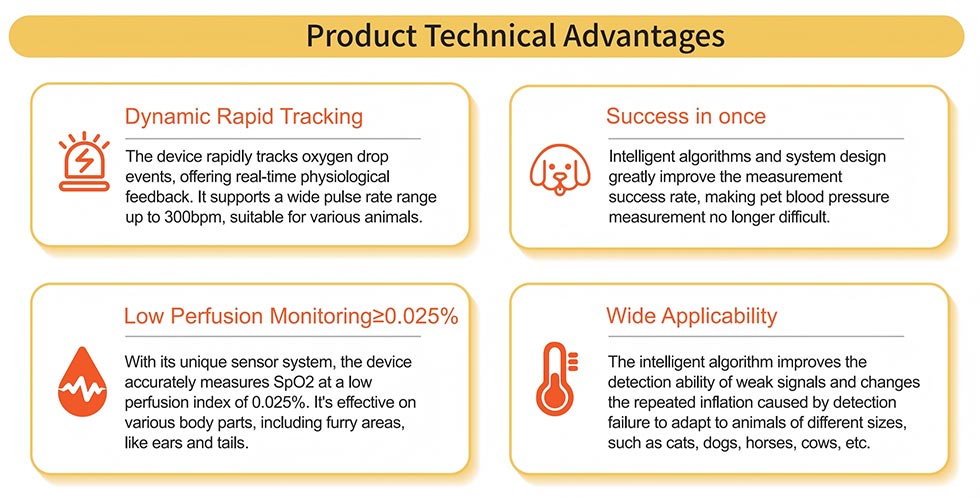

Treatment Mechanism

1. Outstanding Low Perfusion Monitoring Capability

The HTSY® Veterinary Patient Monitor utilizes patented dynamic multi-dimensional signal screening and capture technology, enabling highly accurate and stable SpO₂ measurements even at microcirculation sites such as ears, with a perfusion index as low as 0.025%. It is particularly suitable for small animals or patients with poor circulation.

2. Intelligent Blood Pressure Measurement: One-Touch Success

The intelligent algorithm and system design effectively identify weak signals, significantly improving the first-attempt success rate of blood pressure measurement. The HTSY® Veterinary Monitor automatically adjusts the cuff target pressure based on the subject's blood pressure, minimizing repeated inflation and enhancing animal comfort.

3. Dynamic Rapid Tracking

The HTSY® Veterinary Patient Monitor rapidly tracks physiological events such as oxygen desaturation and provides real-time feedback. Supporting a wide pulse rate range of up to 300 bpm, it is suitable for a variety of animals—from small cats and dogs to large horses and cattle.

4. Wide Applicability

HTSY®'s intelligent algorithm enhances the detection capability of weak signals, enabling adaptation to measurement needs across different body sizes and sites. It is widely suitable for various animals, including cats, dogs, horses, and cattle.

Veterinary Patient Monitor
