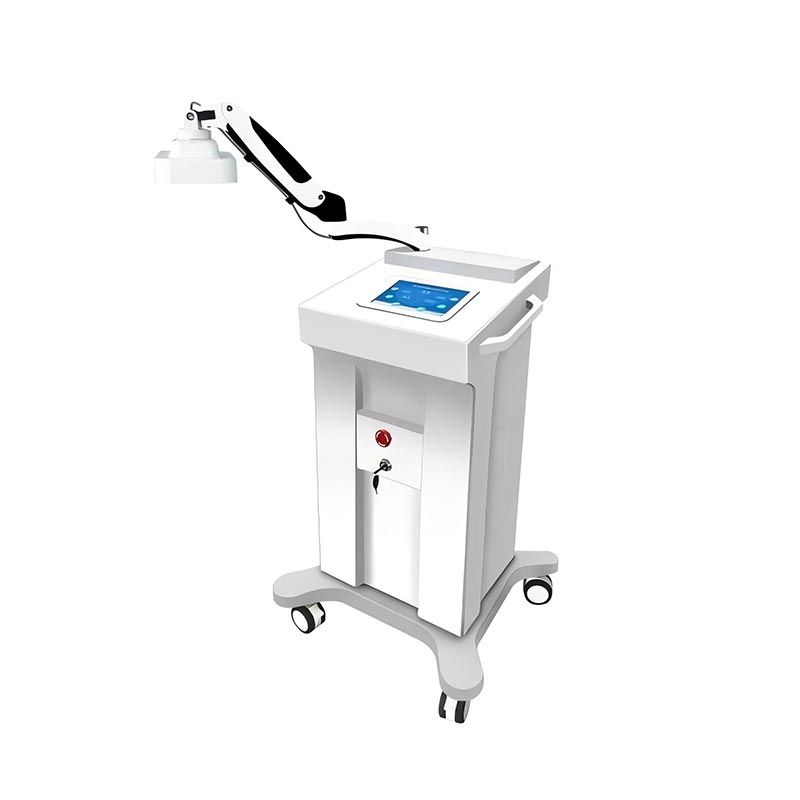

Semiconductor Laser Therapeutic Apparatus

HTSY® is a professional manufacturer of rehabilitation laser equipment. Our HTSY® Semiconductor Laser Therapeutic Apparatus cover most of Europe and North America. These devices deliver significant therapeutic effects and boast a price advantage. We welcome customers worldwide to inquire about cooperation.

Send Inquiry

Product Description

The HTSY® quality Semiconductor Laser Therapeutic Apparatus is a medical rehabilitation equipment that generates bioregulatory effects through lasers of specific wavelengths. Our HTSY® Semiconductor Laser Therapy Device employs 650nm and 810nm semiconductor laser light sources. It can promote cell regeneration, accelerate tissue repair, improve blood circulation, reduce inflammation and relieve pain, alleviate edema, and regulate the body's immune function. Moreover, it is not only applicable to superficial skin lesions but also effective for deep tissue lesions, achieving therapeutic effects from superficial to deep layers.

Product Parameters

Name	Semiconductor laser therapy apparatus
Laser medium	GaAlAs · semiconductor
Output wavelength	Main wavelength 808nm ± 10nm, auxiliary wavelength 650nm ± 10nm;
Output mode:	Continuous or intermittent
Working mode	Single output, non-contact, vertical irradiation of the body surface;
Laser power	① The output power of the whole machine: The surface irradiation treatment head is 500mw × 3 (808 laser) + 5mw × 80 (650 laser) = 1900mw. ② Maximum power: surface irradiation treatment head: 1000mw × 3 + 10mw× 80; ③ The maximum output power of a single laser is 500mw, the adjustment range is 20 ~ 500mw, the step is 1mw, and the display value is ±20% of the actual output of the working laser.
Irradiation area	Surface irradiation treatment head: (24cm ± 0.2cm) × (14cm ± 0.2cm). The maximum surface irradiation area: ≥ 33600mm²;
Number of lasers	83 laser tubes for surface-irradiation treatment heads
Output laser power instability st	Better than ±10%
Output laser power reproducibility Rp	Better than ±10%
Display mode	Color LCD screen
Operation	8-inch touch screen can be touched and operated at will
Noise	The noise of the therapeutic apparatus is ≤ 60dB(A);
Control system	Microcomputer control
Cylinder hydraulic support	All-round adjustment, all-aluminum hard construction, high and low lifting, and use as you push;
Folding angle	The horizontal rotation angle of the treatment head is ≤ 330°, and the pitch angle is ≤ 180°;
Timing function	1-90 minutes touch input;
Power supply	220V ± 22V 50Hz;
Power consumption of the whole machine	≤ 100VA
Weight	≤ 32kg

Treatment Mechanism

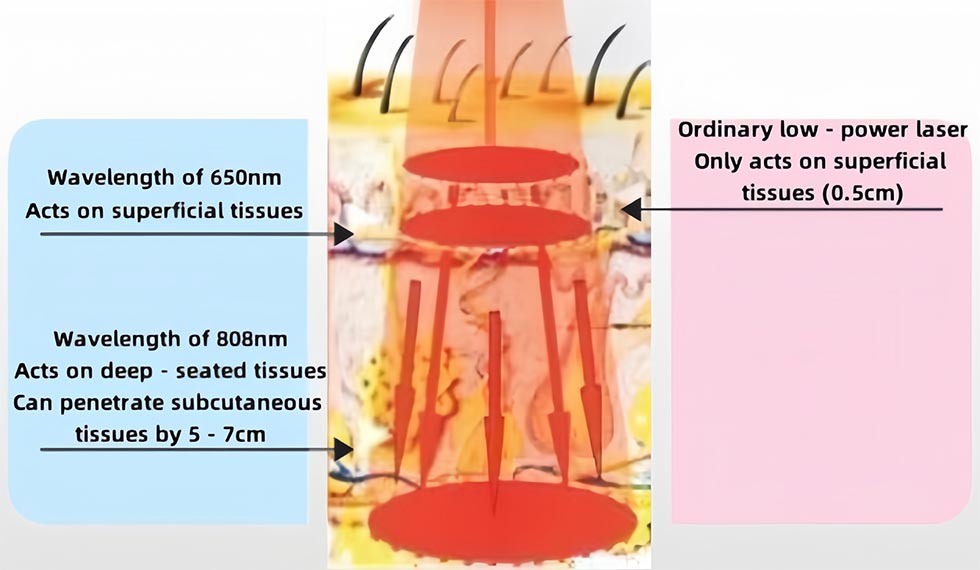

1.The HTSY® semiconductor laser therapeutic apparatus consists of lasers with two wavelengths, 650nm and 808nm. It is used for the adjuvant treatment of nerve and joint pain, muscle pain, skin inflammation and chronic pelvic inflammatory disease caused by factors outside the spinal canal.

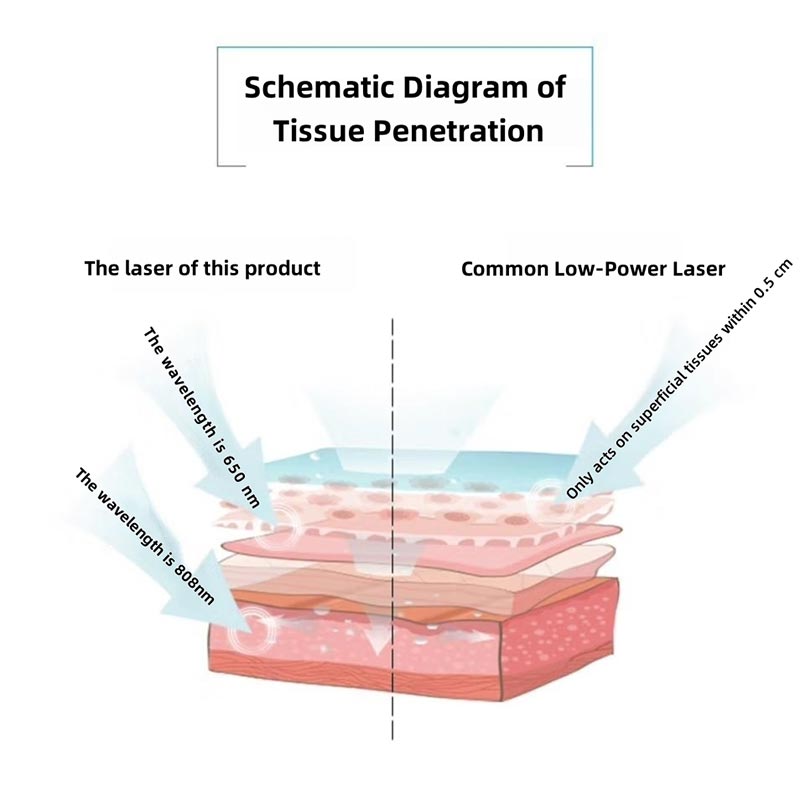

650nm wavelength: It has a good therapeutic effect on infectious skin and other skin lesions.

808nm wavelength: It has a strong penetration ability for skin, fat and muscle tissues and can effectively relieve inflammation and pain.

Semiconductor Laser Therapeutic Apparatus

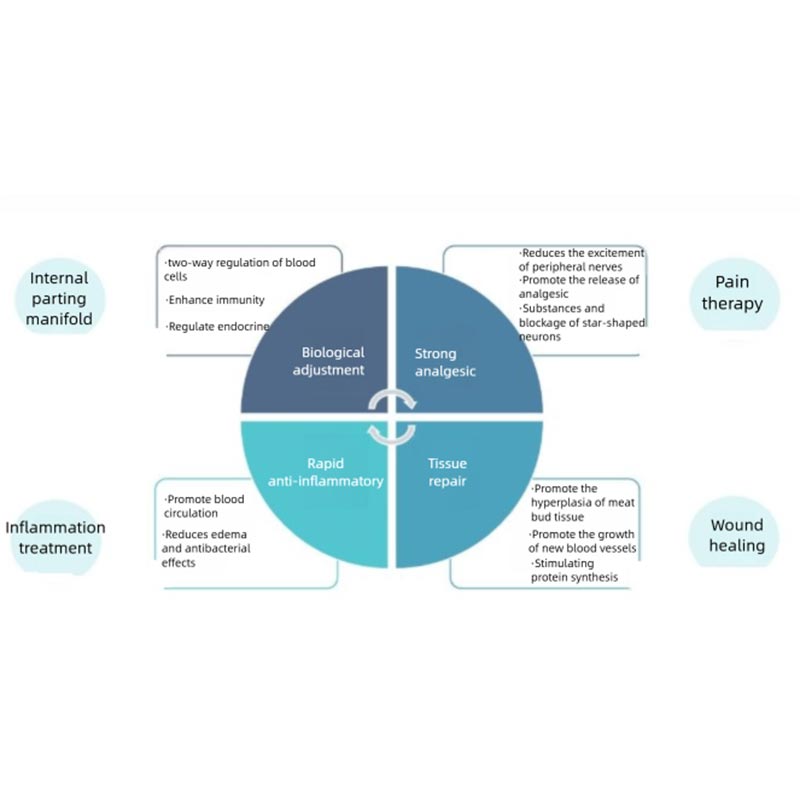

2.Biological Regulation

The regulatory effect of HTSY® Semiconductor Laser Therapeutic Apparatus two-way regulation of blood cells, enhances immune function, and regulates endocrine.

3.Strong Analgesia

Laser can reduce the excitability of peripheral nerves, promote the release of analgesic substances, and block the stellate ganglion.

4.Rapid Anti-inflammation

Laser has a bacteriostatic effect, can promote blood circulation, and alleviate tissue edema.

5.Tissue Repair

Laser can stimulate protein synthesis, promote the proliferation of granulation tissue, and promote the growth of new blood vessels.

Product Features

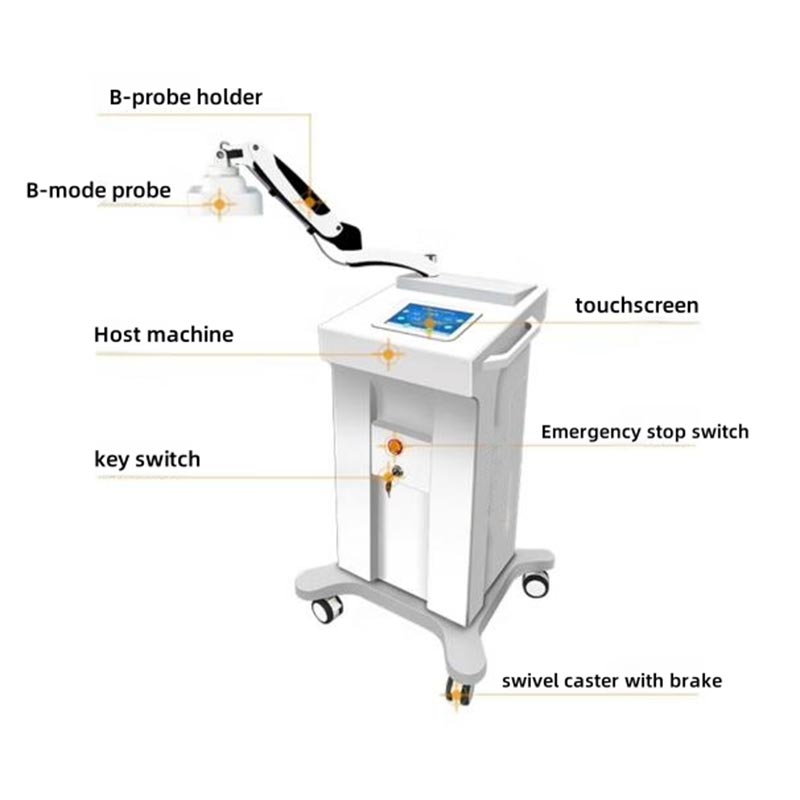

1.large treatment head

HTSY® Semiconductor Laser Therapeutic Apparatus is equipped with a square treatment head, which has a large effective treatment area and can effectively treat the affected area.

Semiconductor Laser Therapeutic Apparatus

2.Intelligent Operation Interface

HTSY® Semiconductor Laser Therapeutic Apparatus is equipped with an 8-inch LCD touch screen and a user friendly operation interface, featuring clear and simple operation.

Semiconductor Laser Therapeutic Apparatus

3.Precise Operation

This HTSY® device is equipped with a pneumatic cylinder and hydraulic system. The bracket of the treatment head can be precisely adjusted in all directions (360°), featuring simple and flexible operation.

4.Stable Performance

The HTSY® laser tube of the surface-irradiation treatment head of this laser device consists of no less than 83 GaAlAs lasers and adopts a professional circuit design, featuring superior performance and high stability.
