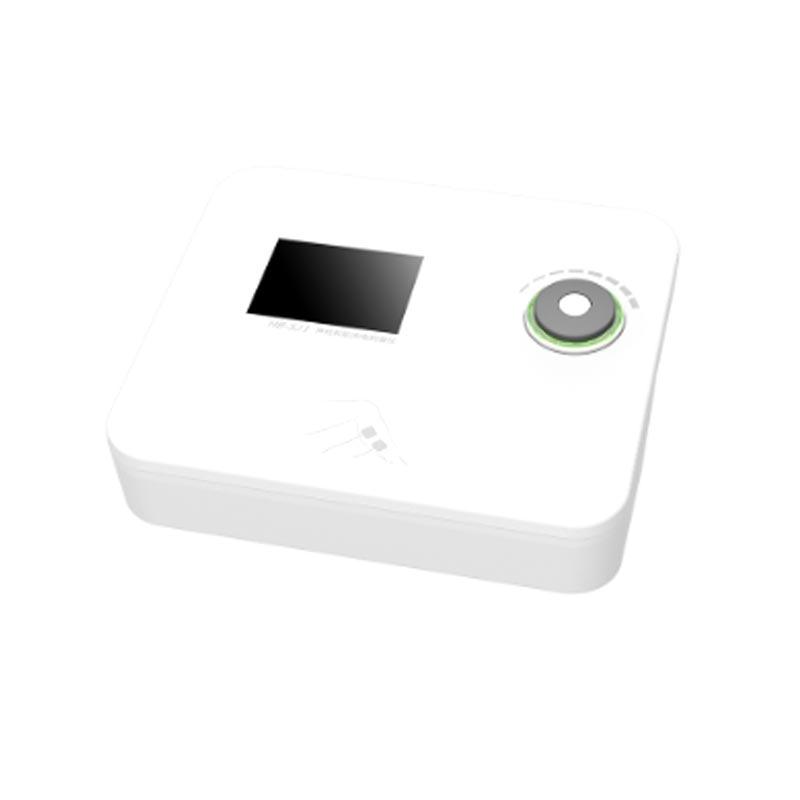

Neuromuscular Electrical Stimulation Device
HTSY® is a factory specializing in customizing rehabilitation equipment. Our HTSY® neuromuscular electrical stimulation device, by stimulating nerves or muscles with gentle electric currents, triggers muscle contractions and is widely used in rehabilitation treatment, muscle function recovery and to enhance athletic performance.
Send Inquiry
Product Description
The HTSY® neuromuscular electrical stimulation device in China, releases low-frequency pulse currents of specific frequencies, which can effectively enhance muscle tone, improve blood circulation, promote venous and lymphatic return, delay the atrophy and degeneration process of diseased muscles, and assist in the reconstruction of neural pathways and the recovery of limb functions.

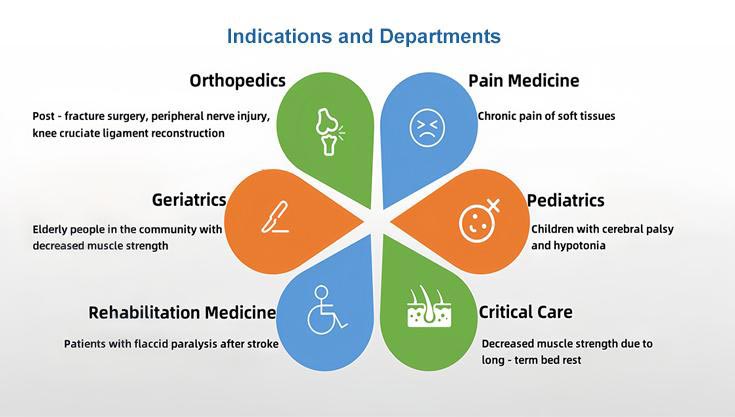

Electrical stimulation of nerves and muscles is an essential physical therapy method for patients with soft paralysis after stroke. Our products have CE certification and are of reliable quality. We sincerely invite customers from all over the world to cooperate.
Product Parameters
| Display Screen | 4.3-inch color touch screen and rotary encoder display operation |
| Output | The instrument provides one set of pin plug-in electrode output, one set of electro-acupuncture output, which are independently controllable and do not interfere with each other; |
| Time setting function | The time range is adjustable from 0 to 99 min, and the single step length is 1 min; |
| Output parameters of electrode therapy |
1. Each channel provides 1 set of electrode output, including two channels A and B, and the output
polarity of channel A and channel B is opposite.The output waveform is a combination of square wave and
exponential wave; 2. The pulse frequency is adjustable from 0.5 Hz to 10 Hz, when the frequency is 0.5 Hz to 1 Hz, the single step length is 0.1Hz; when the frequency is 1 Hz to 10 Hz, the single step length is 1 Hz; 3. The pulse width is adjustable from 0.1ms to 10ms adjustable. When the pulse width is 0.1ms~1ms, the single step length is 0.05ms; when the pulse width is 1ms~10ms, the single step length is 0.5ms; 4. Output intensity: current peak-to-peak value Ip-p is adjustable from 0mA to 99mA; |
| The output parameters of electro-acupuncture treatment |
1. The carrier frequency is 500Hz ± 10%; the frequency of the modulation wave is adjustable from 0.5Hz
to 10Hz. When the frequency is 0.5 Hz to 1Hz, the single step length is 0.1Hz; when the frequency is 1
Hz to 10Hz, the single step length is 1Hz. The tolerance is ±10%; 2. The pulse width is adjustable from 0.1ms to 1ms, the single step length is 0.05ms, and the tolerance is ±10%; 3. Output intensity: Each channel of the electro-acupuncture of the therapeutic apparatus is independently output. When the load impedance is 250Ω, the peak-to-peak value Ip-p of each electroacupuncture output current is adjustable from 0mA to 99mA, and the tolerance is ±15%; the effective value of the maximum output current does not exceed 10mA; |
| Continuous working time | Longer than 8h |
| Net Weight | 4.1kg |
| Size | 308×260×130mm |
| Atmospheric pressure | 700Pa ~ 1060Pa |
| Rated voltage | ~220V±10% |
| Power frequency | 50Hz±1Hz |
Treatment Mechanism

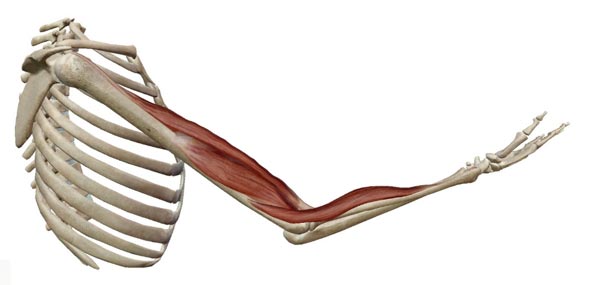

1.Stimulate neuromuscular tissue - enhance muscle strength
The HTSY® NMES Device can excite the muscle collagen fibrin filaments, cause regular muscle contractions, and improve the elasticity of muscle fibers.

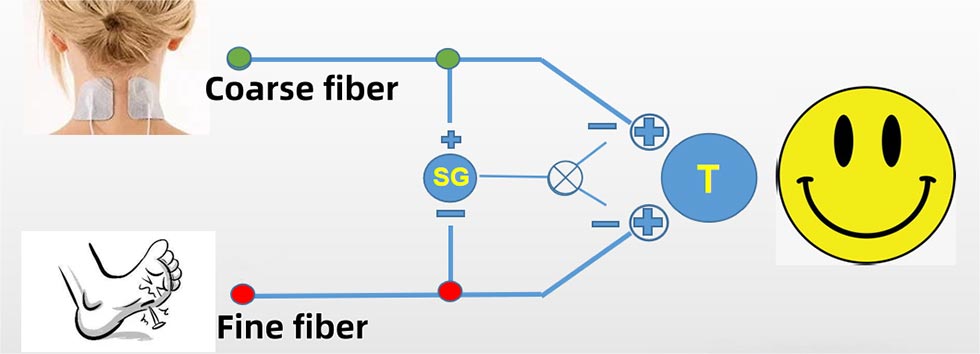

2.Utilizing the pain gate control theory - analgesia
The HTSY® NMES Device Can suppress pain.
Note:
(1)Fine fibers: Conduct pain sensations.
(2)Coarse fibers: Temperature sensation, touch sensation, medium frequency interference electricity.
(3)When SG cells are activated, they release signals of sensory inhibition.
Product Features

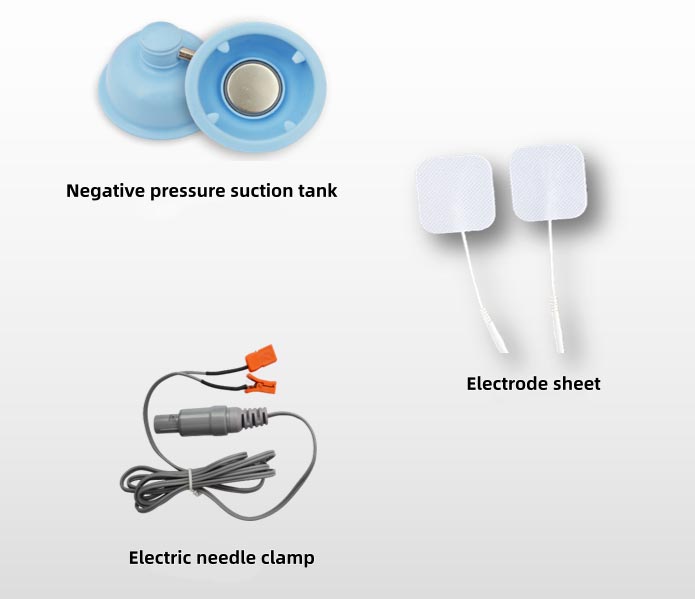

1.Our HTSY® neuromuscular electrical stimulation device offers a variety of treatment options: electrode patches, negative pressure suction, and electroacupuncture.

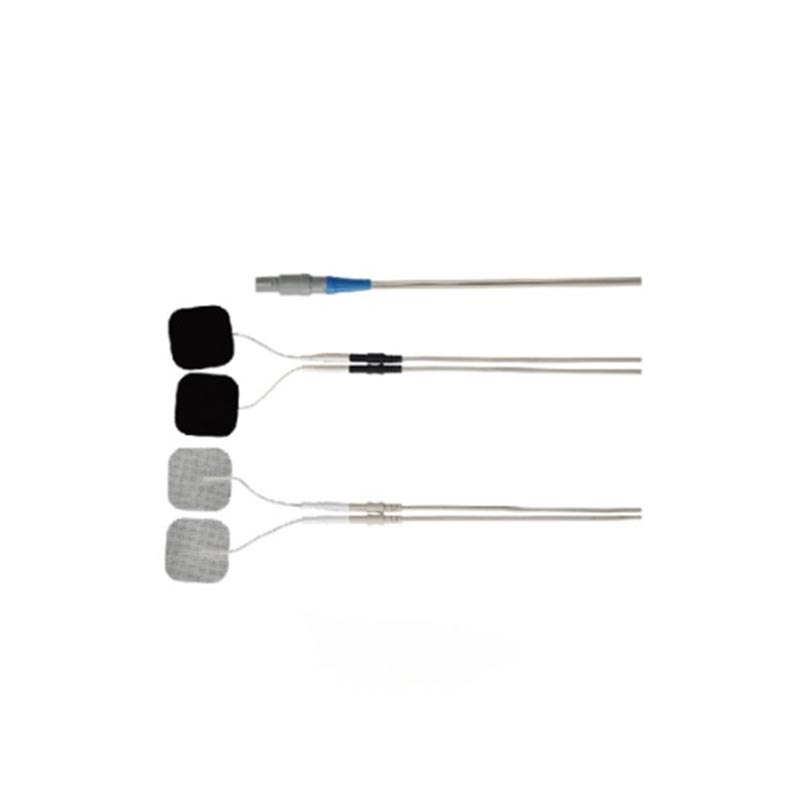

（1）Electrode patch: A basic, safe and non-invasive treatment method

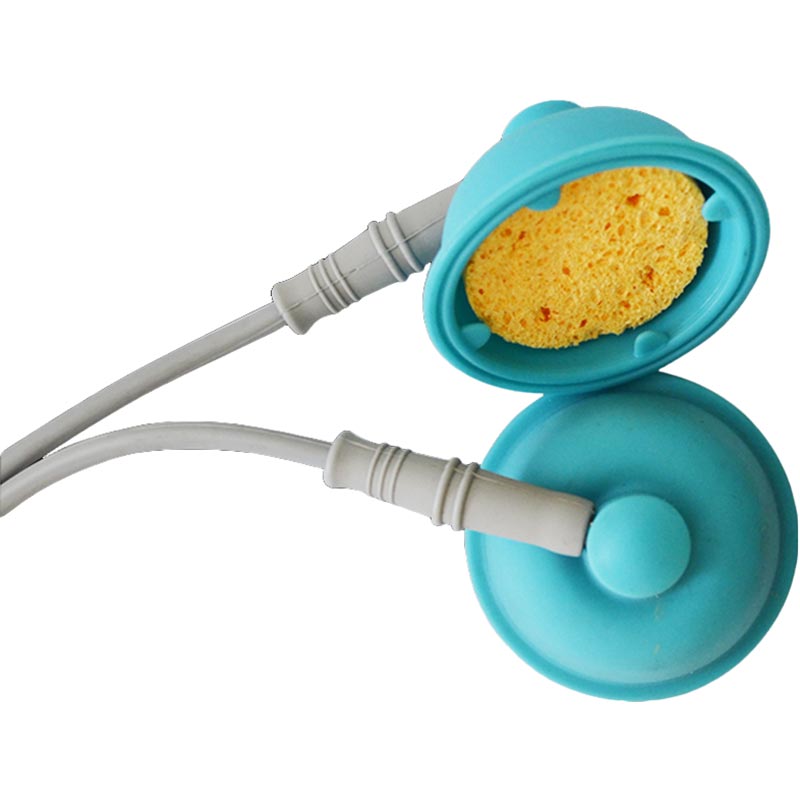

（2）Negative pressure suction: On the basis of electrode sheet treatment, the function of negative pressure suction is added, and it also has the effect of cupping

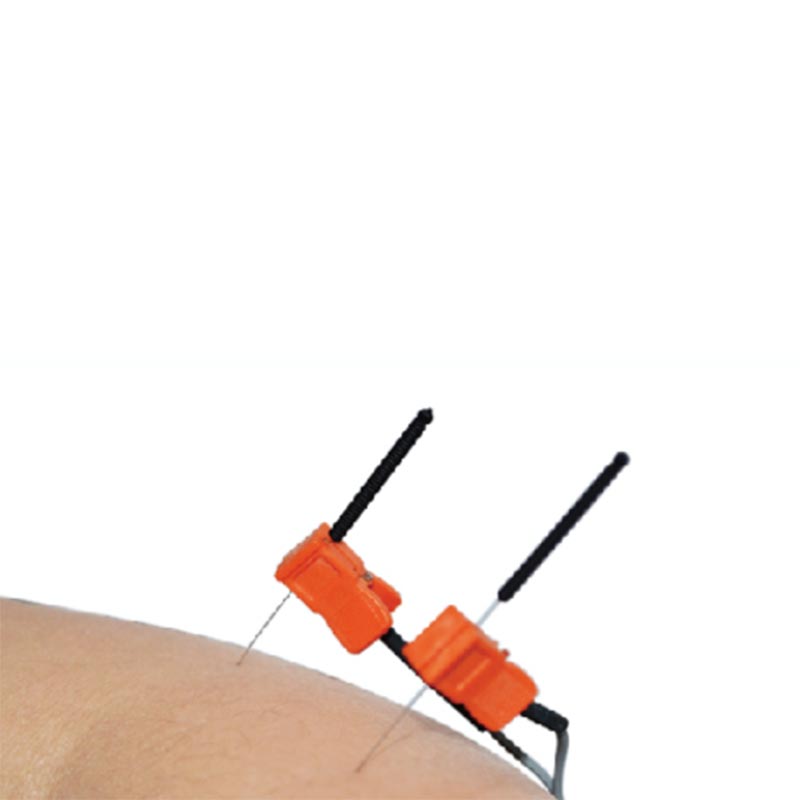

（3）Electroacupuncture: The unique electroacupuncture output method achieves the combined therapeutic effect of acupuncture and electrical stimulation

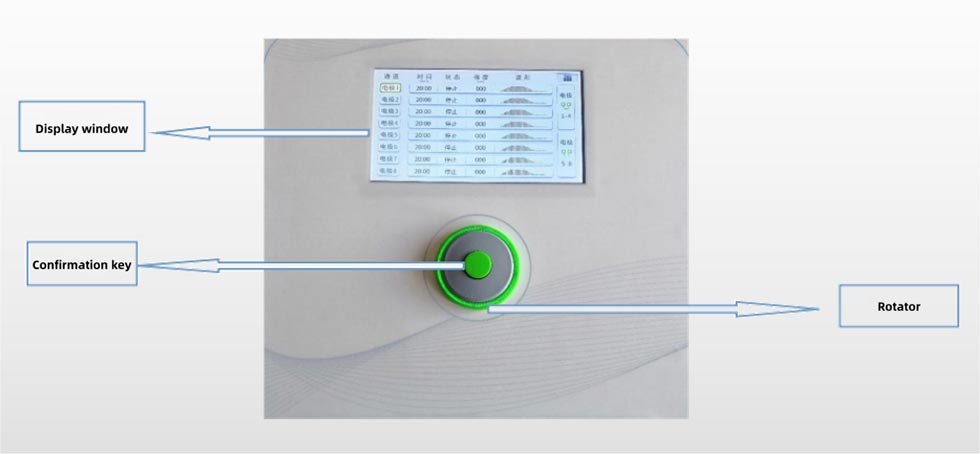

2.Our HTSY® neuromuscular electrical stimulation device is equipped with a high-definition color touch screen, on which all treatment parameters and mode options can be clearly and intuitively presented. It is also equipped with a one-button shuttle knob. Whether it is for medical staff to quickly adjust the treatment plan or for patients to operate independently at home, it can be easily mastered - without complex learning, they can smoothly complete operations such as parameter setting and mode switching, which is both worry-free and efficient to use.

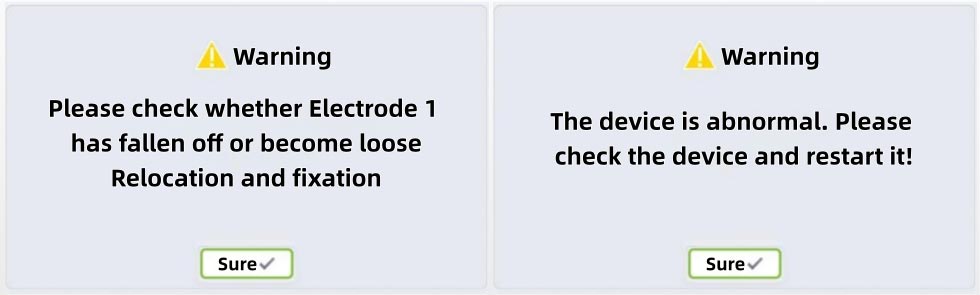

3.Our HTSY® neuromuscular electrical stimulation System has multiple safety protection designs: If the electrode loosens during the treatment process and causes the circuit to break, the open-circuit protection will be activated immediately, which can not only avoid ineffective stimulation but also prevent the equipment from running out of power. In the event of a short circuit in the circuit, short-circuit protection can quickly cut off the abnormal current, which not only protects the equipment components but also avoids discomfort to the user. In addition, with the neuromuscular electrical stimulation device's abnormal warning function, whether it's an internal component malfunction or an incorrect operating parameter, a prompt will pop up immediately, facilitating timely troubleshooting and handling, making users feel more at ease.
