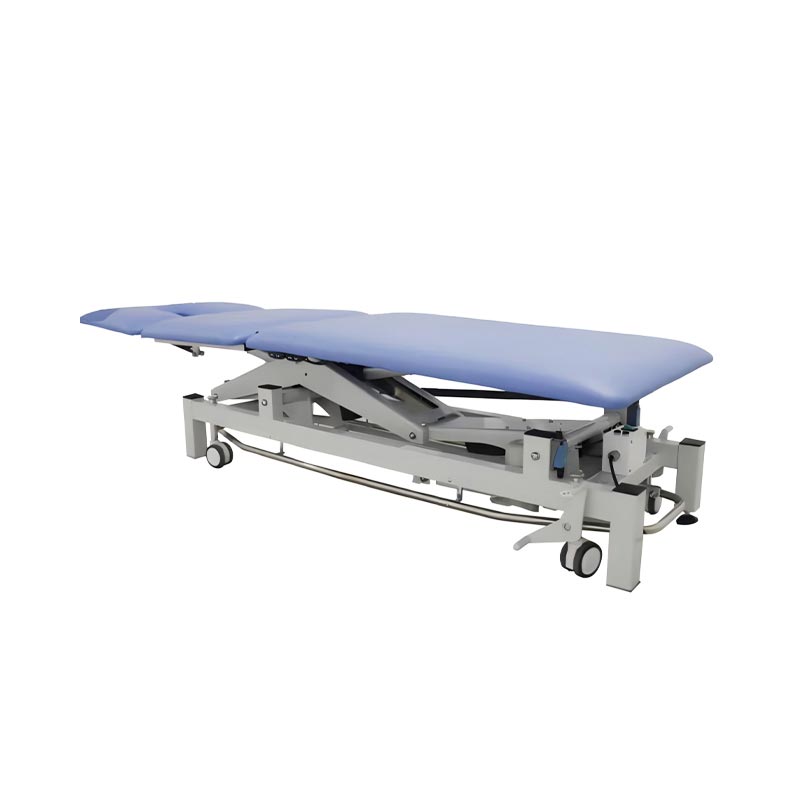

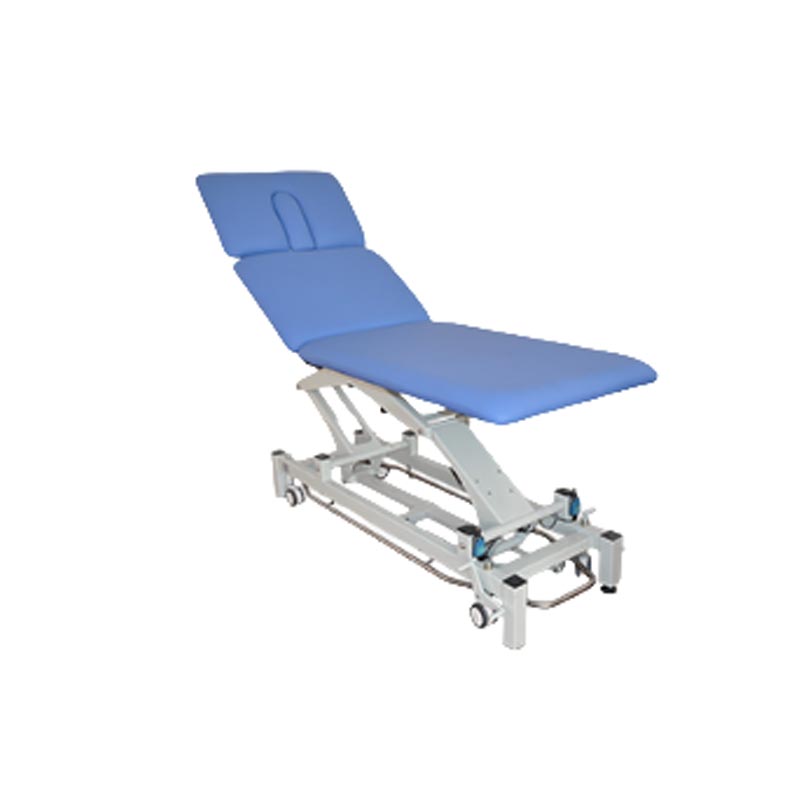

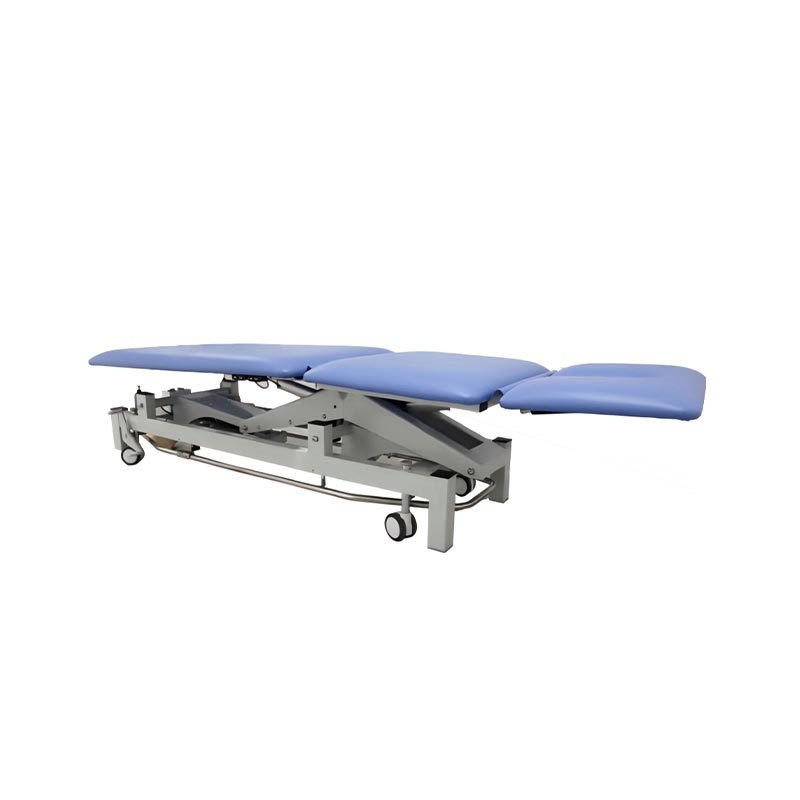

Multiposition Back Adjustable Rehabilitation Bed
HTSY® is a professional Multiposition Back Adjustable Rehabilitation Bed factory.Our factory is situated in Tianjin, China, and we specialize in manufacturing hospital nursing beds. Backed by efficient production lines and professional quality control systems, we supply high-quality, cost-effective products to global clients. Feel free to get in touch with us—we’re ready to provide you with premium services.
Send Inquiry
Product Description
HTSY® is Multiposition Back Adjustable Rehabilitation Bed supplier from China.Boasting robust production capacity and well-equipped production lines, we’re able to deliver high-quality products to our customers at competitive prices. Our company also has a full-fledged sales and maintenance service system in place. What’s more, we have access to multiple logistics channels and offer round-the-clock manual support, ensuring we can provide top-tier service for all our clients.

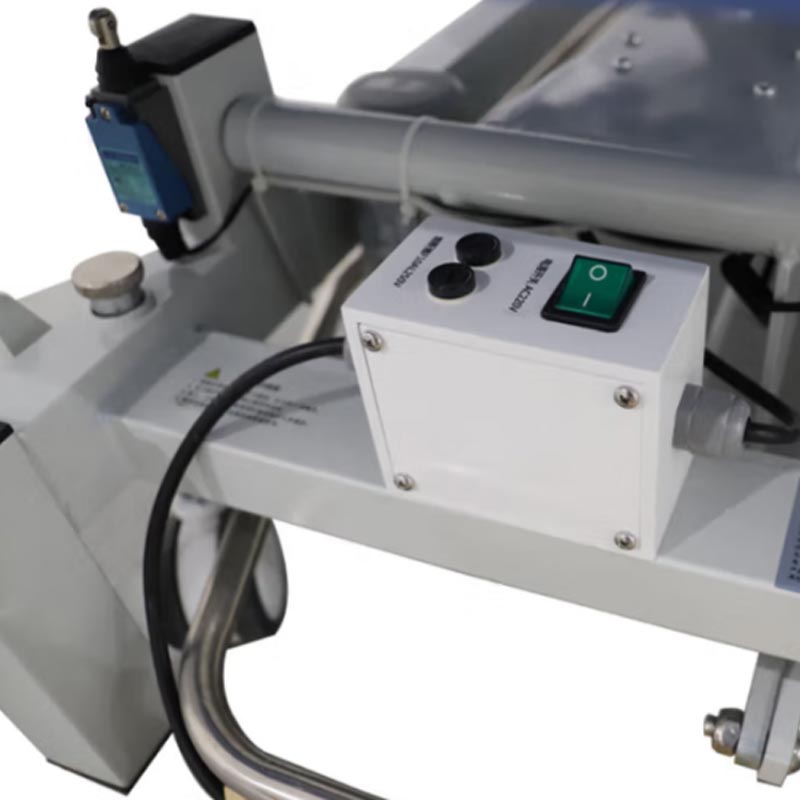

The multi-position rehabilitation bed controls the horizontal lifting and angle adjustment of the bed body through the push rod motor and gas spring electric or (and) manual control. The working principle of electric adjustment is as follows: the drive motor is controlled by the input signal of the control device. The drive motor converts the rotation movement of the motor into a linear movement through the screw nut, and uses the forward and reverse rotation of the motor to complete the push rod action. The push rod realizes various actions of the multi-position rehabilitation bed through the movement of various levers, rockers or linkages.
Product Parameter（Specification）
| Rated voltage | AC220V±10％ |
| Power supply frequency | 50 Hz ± 2% |
| Power | 360VA |
| Structure type | Three-fold three-segmentThree-fold: head board, back board, hip and leg boardThree sections: head plate section, back plate section, hip and leg plate section |
| The lifting range of the treatment bed | 450 ~ 800mm, tolerance ±50mm |
| The safe working load of the bed | 1700N |
| Safe working load of lifting frame | 2200N |
| Speed | The horizontal ascent speed of the bed board is 15mm/s, the horizontal descending speed is 17.5mm/s, and the tolerance is ±2mm/s. |
| Adjustment angle of each position (tolerance ±5°) | Manual adjustment range of the head plate: 30° fold up, 50° fold down; Electric adjustment range of the back panel: up to 55°, down to 10°;Electric adjustment range of hip plate: 45° fold up, 20° folddown. |
| Bed size | 2012mm * 650mm * 450mm (the lowest position, including mattress), tolerance ±50mm |
| Equipment net weight | 110kg |
Product Feature And Application
Multiposition Back Adjustable Rehabilitation Bed is suitable for carrying and nursing patients in hospital orthopedics department, rehabilitation department, spinal nerve department and sports injury rehabilitation center.
Product advantages

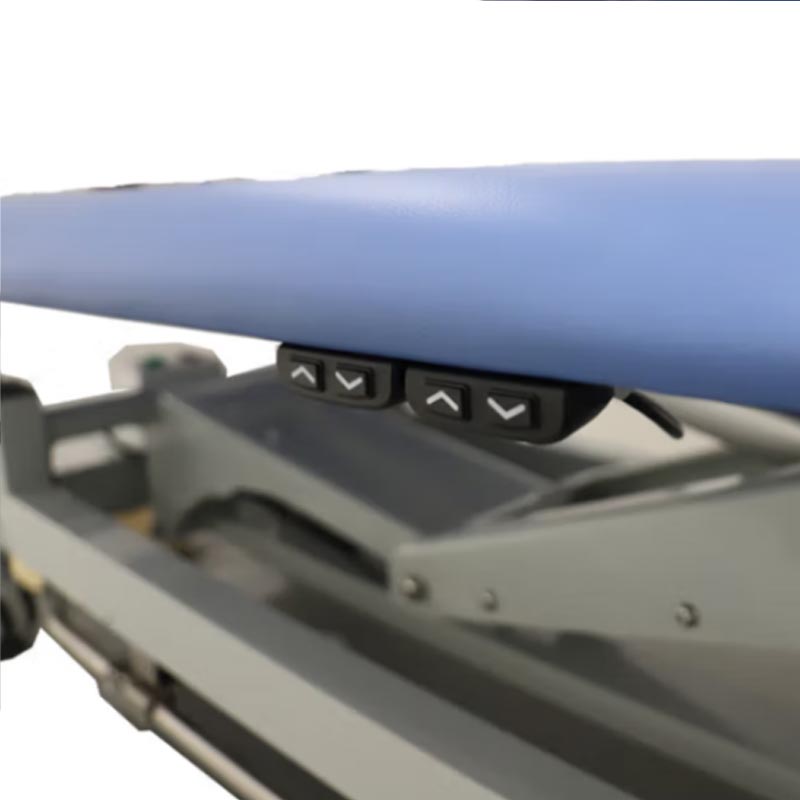

1.Convenient operation. The bed surface can be raised and lowered electrically at any position around the bed.
2.Multi-angle adjustable. Both supine and prone positions can be used; Separation and adjustment of both lower limbs: to meet the needs of multi-position treatment.
3.Quality selection. The bed surface is made of moisture-proof, anti-bacterial and fireproof materials; High-quality motor, stable operation.
Contraindications
1.Pregnant women.
2.Bleeding and those with bleeding tendency.
3.Orthopedic diseases that affect body position changes.
4.Combined with severe cardiopulmonary insufficiency.
5.Those who have cognitive impairment or consciousness impairment and cannot accept action instructions.
6.Patients with epilepsy
