Magnetic Vibration Heat Treatment Instrument

HTSY® is a Chinese manufacturer of magnetic vibration heat treatment instrument, with several rehabilitation-related brands under its belt. This product can not only reduce swelling, relieve pain and inflammation, but also help relieve physical fatigue and muscle soreness. It is very convenient to use in daily life. Welcome everyone to consult and cooperate at any time!

Send Inquiry

Product Description

The HTSY® durable magnetic vibration heat treatment instrument is a therapeutic device that can simultaneously utilize three physical effects: alternating magnetic field, biological magnetic vibration, and warm heat. Its core consists of the main unit and the magnetic field line conductor. It can generate non-mechanical vibrations and thermal effects, which can not only help reduce swelling and relieve pain, alleviate physical fatigue, but also assist in rehabilitation and recovery. Its uses are quite practical. Moreover, this HTSY® magnetic vibration thermal therapy device has passed ISO13485 and CE certifications, ensuring reliable quality and peace of mind when in use.

Product Paramenters

Two models are available

Model: HB210D

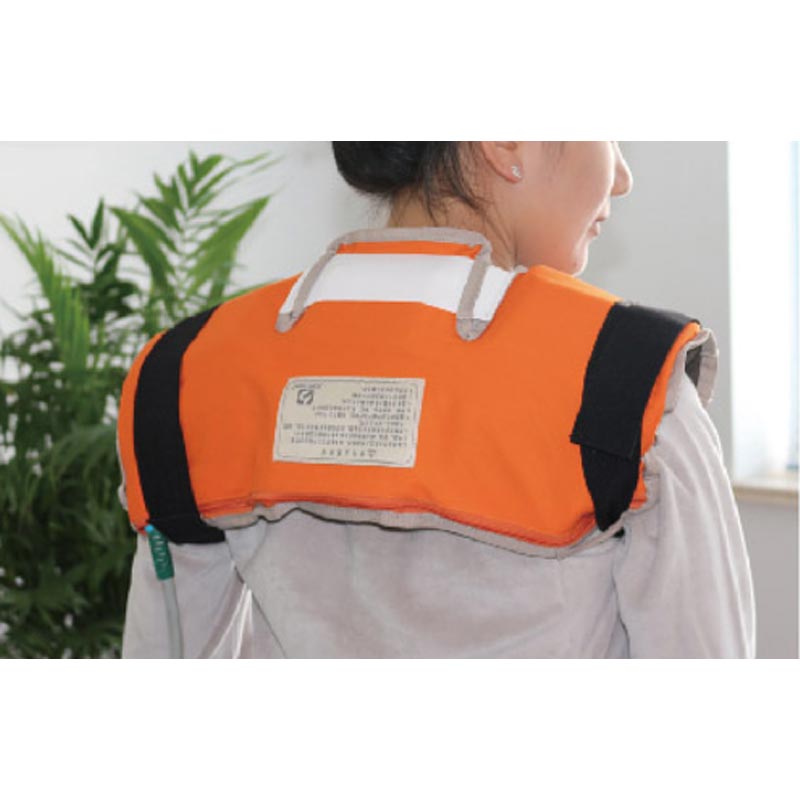

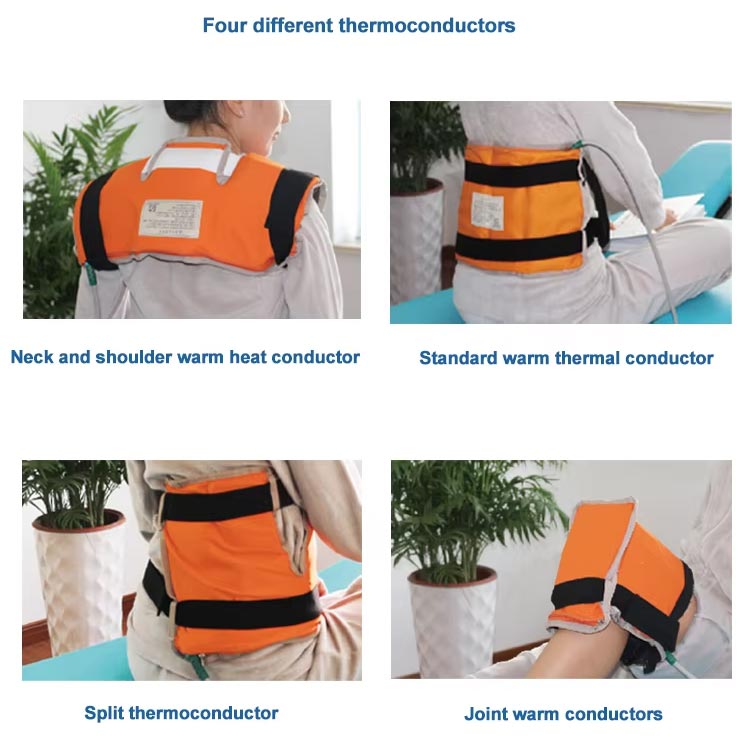

HB210D Heating and Magnetic Vibrator Therapeutic Equipment	Single-channel portable model, standard neck and shoulder thermal conductor;
Display	3.5 inch color LCD screen
Magnetic field strength	0-38mT
Vibration frequency	50Hz±1Hz

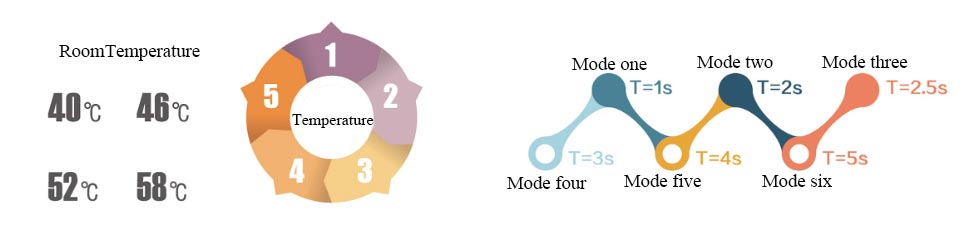

Working mode	There are six working mode options (1s, 2s, 2.5s, 3s, 4s, and 5s): Mode 1: The duty cycle is 1s, the frequency is 1Hz, and the duty cycle is 10%; Mode 2: The duty cycle is 2s, the frequency is 0.5Hz, and the duty cycle is 10%; Mode 3: The duty cycle is 2.5s, the frequency is 0.4Hz, and the duty cycle is 8%; Mode 4: The working period is 3s, the frequency is 0.33Hz, and the duty cycle is 13.3%; Mode 5: The duty cycle is 4s, the frequency is 0.25Hz, and the duty cycle is 25%; Mode 6: The working period is 5s, 2 kinds of pulses are alternated; The first type: frequency 0.1Hz, duty cycle 29%; The second type: frequency 0.28Hz, duty cycle 11%;
Heating method	5 levels adjustable at 40℃, 46℃, 52℃, 58℃, and normal temperature, the error is ±2℃;
Time selection	1-60 minutes adjustable, step increments of 1 minute, error of ±10%;
Over-temperature protection device	It has a non-automatic reset over-temperature protection device independent of the thermostat. When the over-temperature protection device operates, the output will be stopped, and the temperature of the applied part shall not exceed 60℃;
Time selection	Adjustable from 1 to 60 minutes, step increment is 1 minute, error is ±10%;
Continuous working time	> 8h;
Power parameters	AC 220V ± 10%, 50Hz ± 2%;
Number of magnets and physical dimensions	Number: 8; Size (length×width×height): 88mm * 63mm * 19mm;
Equipment weight	25.2kg
Size	5855401100mm

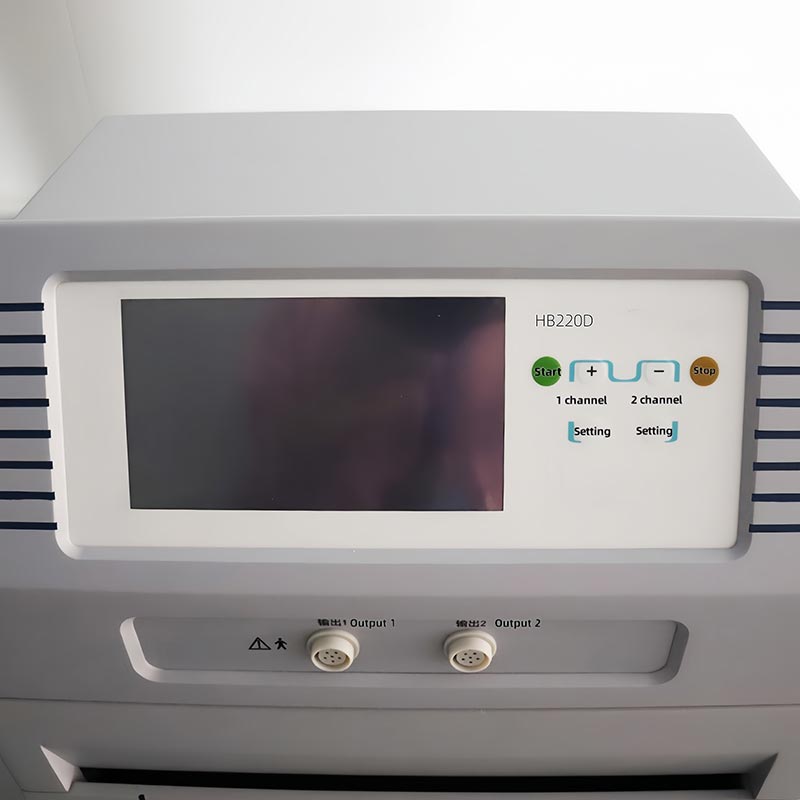

Model: HB220D

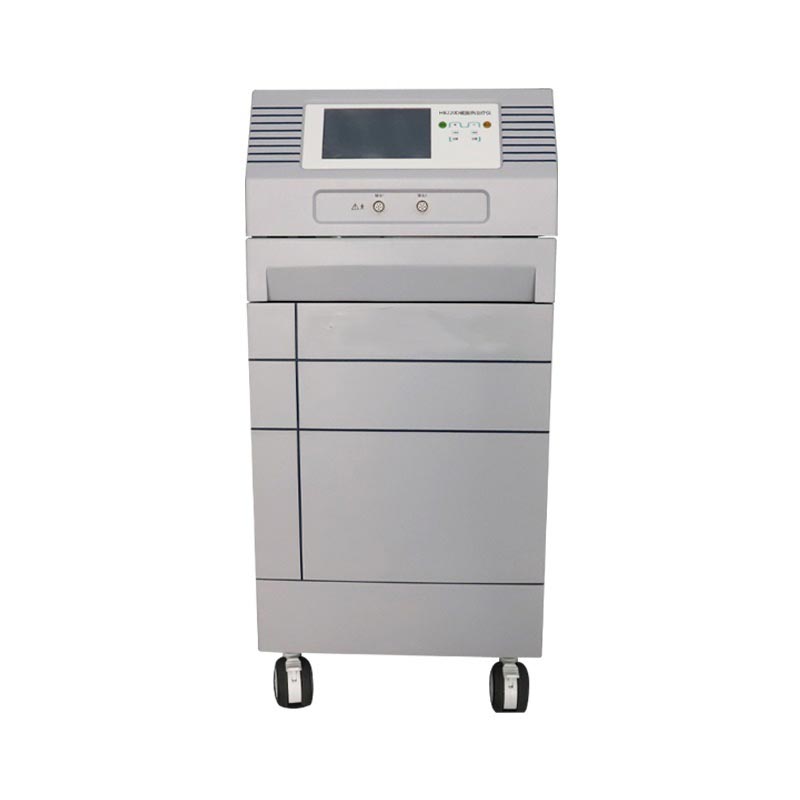

Model	Dual-channel cart-based type, equipped with two treatment guides suitable for different parts;
Display	7inch color LCD screen
Magnetic field strength	0-38mT
Vibration frequency	50Hz±1Hz
Working mode	There are six working mode options (1s, 2s, 2.5s, 3s, 4s, and 5s): Mode 1: The duty cycle is 1s, the frequency is 1Hz, and the duty cycle is 10%; Mode 2: The duty cycle is 2s, the frequency is 0.5Hz, and the duty cycle is 10%; Mode 3: The duty cycle is 2.5s, the frequency is 0.4Hz, and the duty cycle is 8%; Mode 4: The working period is 3s, the frequency is 0.33Hz, and the duty cycle is 13.3%; Mode 5: The duty cycle is 4s, the frequency is 0.25Hz, and the duty cycle is 25%; Mode 6: The working period is 5s, 2 kinds of pulses are alternated. The first type: frequency 0.17Hz, duty cycle 29%; The second type: frequency 0.28Hz, duty ratio 11%.
Heating method	40℃, 46℃, 52℃, 58℃, room temperature five levels can be adjusted, the error is ±2℃
Time selection	1-60 minutes adjustable, step increments of 1 minute, error of ±10%
Over-temperature protection device	It has a non-automatic reset over-temperature protection device independent of the thermostat. When the over-temperature protection device operates, the output will be stopped, and the temperature of the applied part shall not exceed 60℃;
Continuous working time	> 8h
Power parameters	AC 220V ± 10%
Power Supply Frequency	50Hz±2%
Number of magnets and physical size	Number of thermomagnetic vibrators: 8; Size: (length×width×height) 88mm * 63mm * 19mm, tolerance ≤10%.
Equipment weight	28.6kg
Size	585 * 540 * 1100mm

Differences between HB210D and HB220D

Model	Channel	Display	Weight
HB210D	Single-channel	3.5 inch color LCD screen	25.2kg
HB220D	Dual-channel	7 inch color LCD screen	28.6kg

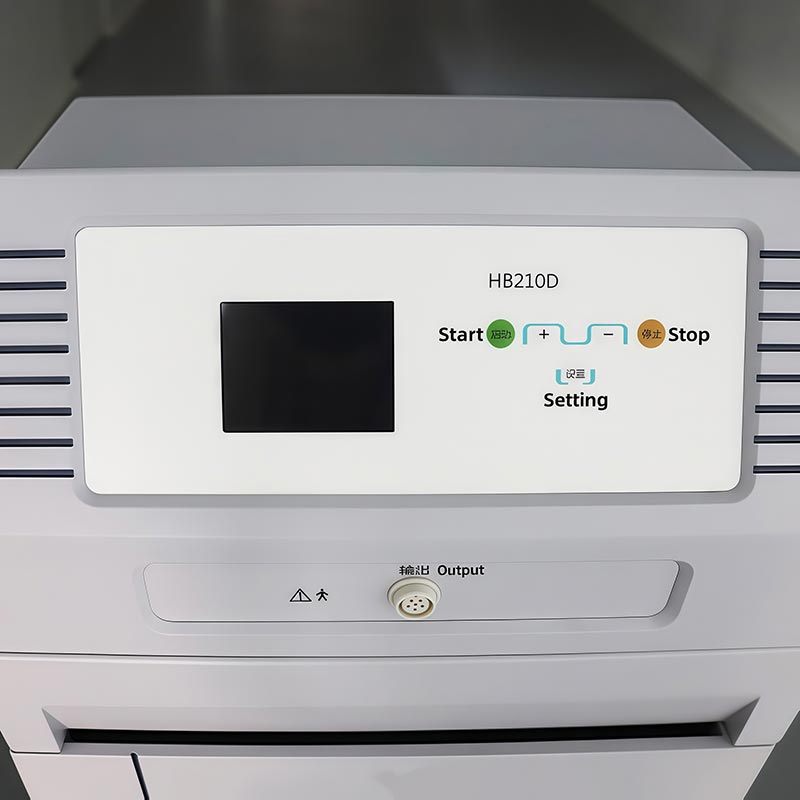

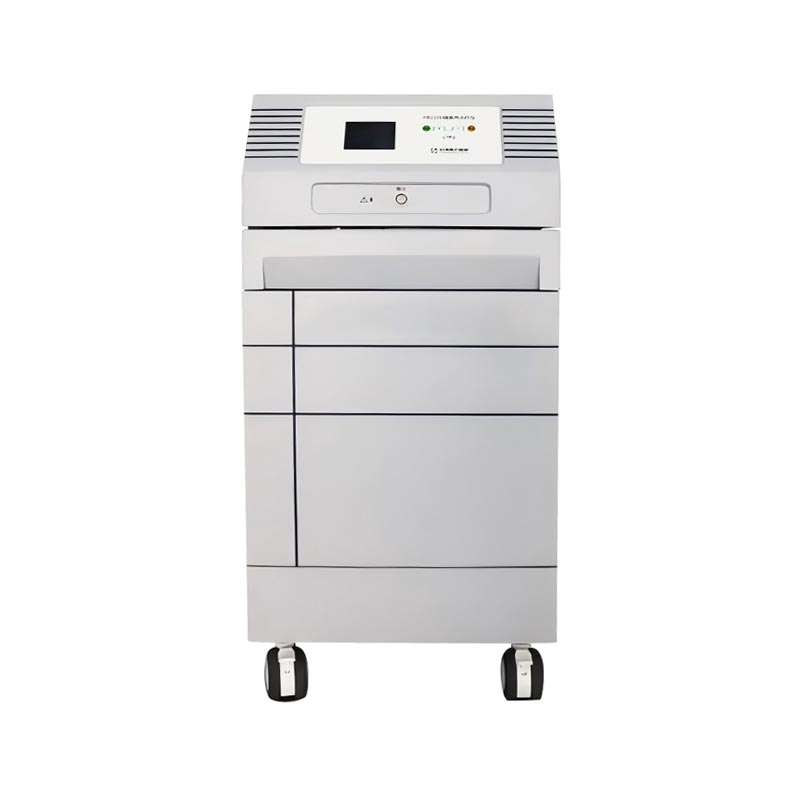

HB210D

HB220D

HB210D

HB220D

Magnetic Vibration Heat Treatment Instrument

Treatment Mechanism

1.The magnetic therapy of the HTSY® magnetic vibration thermal therapy instrument

(1) Our magnetic vibration heat treatment instrument can improve the permeability of cell membranes, eliminate edema, promote the excretion of inflammatory products, and help reduce inflammation.

(2) It can improve blood circulation, make blood flow faster, reduce swelling, accelerate tissue healing, and also lower muscle tension.

(3) It can inhibit the excitability of peripheral nerves, relieve pain, and at the same time activate the function of the gastrointestinal tract.

2.The heat therapy of theHTSY® magnetic vibration heat therapy device

When the thermal sensor under the skin senses heat, the smooth muscle of the blood vessels gradually dilates, accelerating the speed of blood circulation. This enables nutrients to be delivered to the body tissues more quickly and helps with tissue repair. At the same time, it can also accelerate the excretion of inflammatory substances, making the inflammation subside more quickly.

Magnetic Vibration Heat Treatment Instrument

3.Vibration massage of the HTSY® magnetic vibration heat therapy device

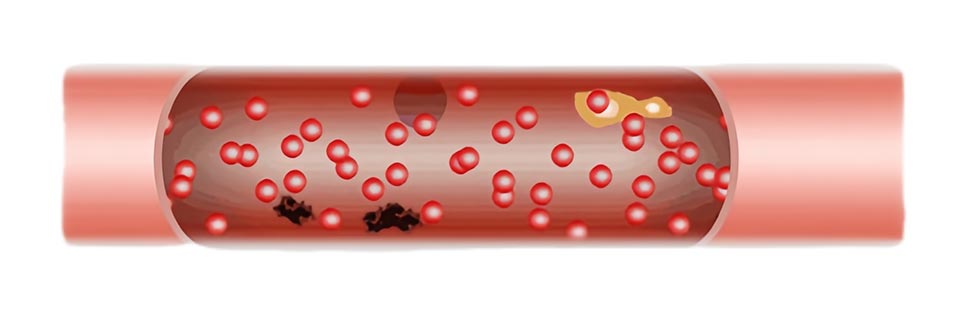

This magnetic vibration heat treatment instrument can change the morphology of capillaries, increase the muscle tone of blood vessels at the same time, cause blood vessels to dilate, thereby promoting local blood circulation and making blood flow more smoothly.

Vibration massage can reduce the sensory function of the skin, and its effect in pain relief is particularly obvious. For common muscle soreness and mild pain, it works quite well to relieve them.
