Electroencephalographic Bionic Stimulator

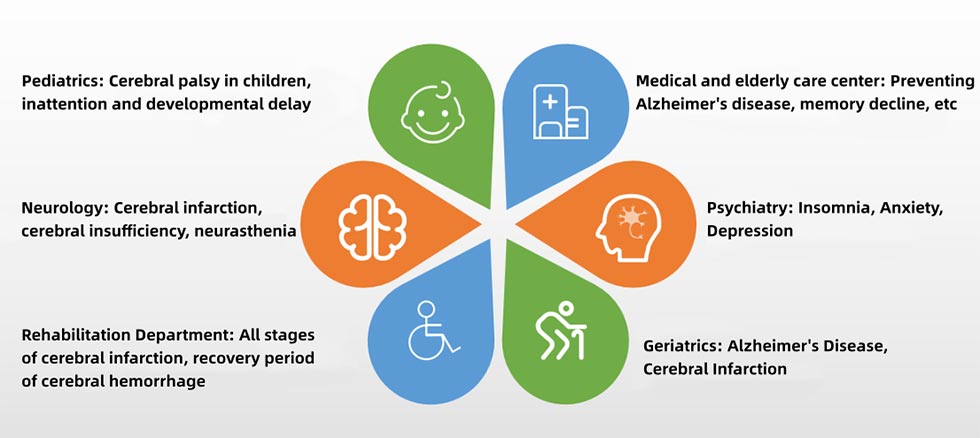

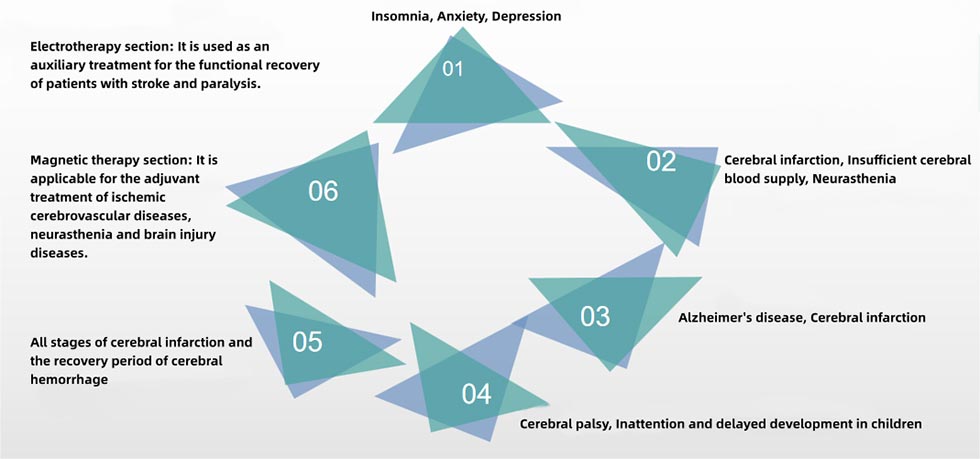

HTSY® quality electroencephalographic bionic stimulator is based on the brain wave patterns of normal people and simulates similar brain waves to act on patients. It can be used to improve insomnia and depression, and can also be used as an auxiliary for the treatment of problems such as Alzheimer's disease and cerebral infarction. Welcome global customers to consult and cooperate.

Send Inquiry

Product Description

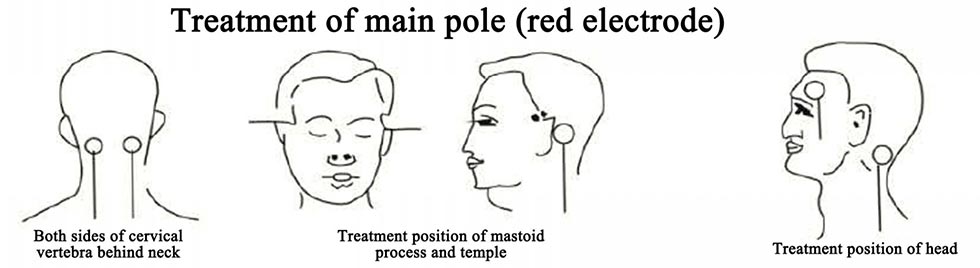

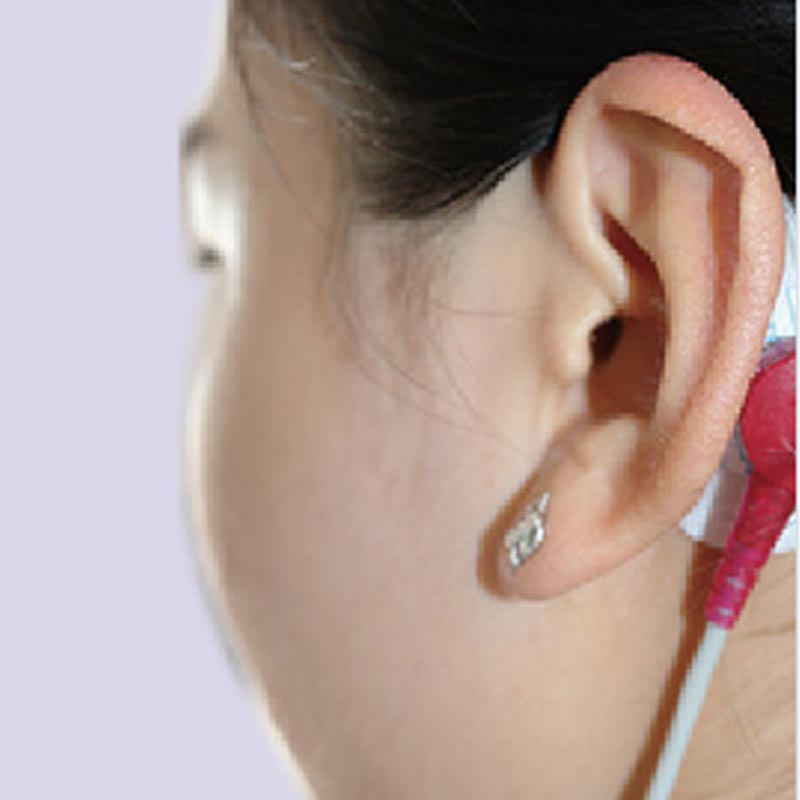

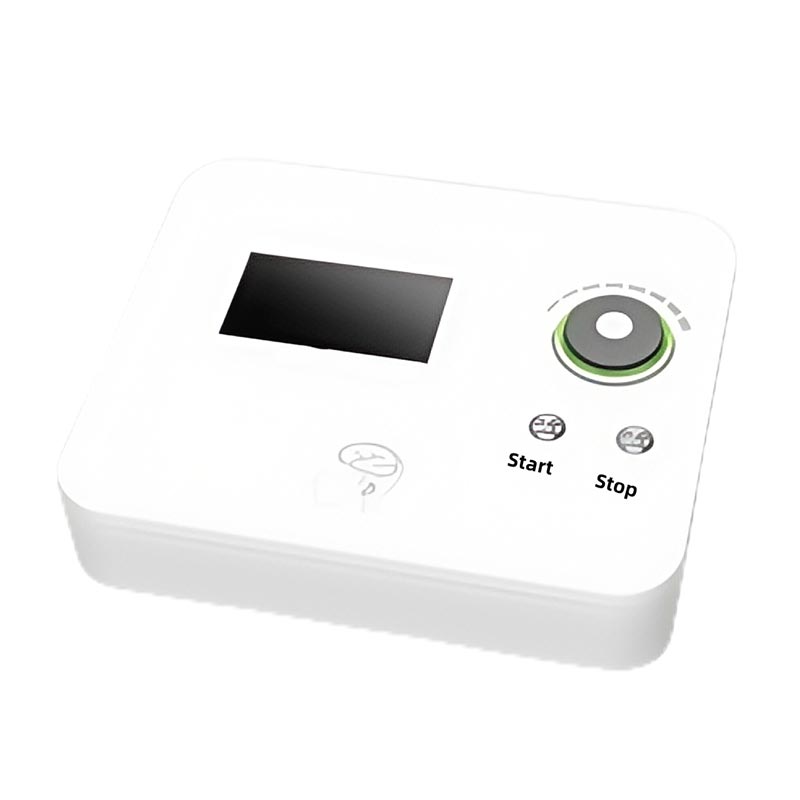

HTSY® is a Chinese factory specializing in the production of electroencephalographic bionic stimulator. HTSY® EEG bionic stimulator can simulate the biocurrent and magnetic field of the human body itself. When in use, attach the electrode sheets to the mastoid processes on both sides, then wear the special magnetic therapy cap. Without surgery, it can penetrate the skull from outside the scalp and stimulate the parietal nucleus cerebellum deep in the brain.It can make cerebral blood vessels more elastic, increase local blood flow in the brain, help smoother blood circulation in the brain, accelerate the metabolism of brain cells, and thus help brain functions recover more quickly. So this instrument is also called a cerebral circulation treatment instrument or a brain function disorder treatment instrument.

Product Parameters

Display	LCD display plus one-key shuttle operation
Single-channel Output	A single channel of the instrument has two sets of electrotherapy output and one set of magnetic therapy output.Electrotherapy and magnetic therapy can be operated independently.
Main Pole Output	The main pole adopts the auxiliary pole bionic low-frequency electric output, and brain electricity bionic low-frequency modulation intermediate frequency electric output. The main and auxiliary poles are independently controlled.
Basic frequency of main pole	23.81Hz, 15.87Hz, 15.87Hz, and 11.90Hz
Basic frequency of auxiliary pole	4000Hz ± 10%
Output Current	In the standard mode of the main pole, the peak output current (Ip-p at the maximum intensity) is based on 80mA-p, and the measured value can be changed within the range of 70 ~ 90mA-p; When the auxiliary pole is in mode 01e ~ 10, the peak output current (Ip-p at the maximum intensity) is based on 27mA-p, and the measured value can be changed in the range of 62 ~ 82mA-p.
Output mode	normal mode, continuous mode, pulse mode, night mode.
Output prescription	10 kinds of treatments, corresponding to 10 different current modes, there is no need to adjust the frequency, pulse width, and voltage.
Treatment intensity display and setting range	0 ~ 80, the auxiliary level is adjustable from 0 ~ 90, and the adjustment step length is 1.
Frequency spectrum range	0 ~ 4.6KHz, the main frequency spectrum range is 1Hz ~ 4KHz.
Timing accuracy	0 ~ 99min in continuous mode, 0 ~ 30min in normal, night, and pulse mode, the working time is longer than 8H.
Magnetic field intensity	The treatment intensity is divided into 2 levels, the intensity range is 3mT ~ 5mT and 10mT ~ 17mT.
Frequency of the magnetic field	50Hz ± 2%
Four levels of vibration massage intensity can be adjusted	0V, 10V, 16V, and 27V
Four-speed adjustable vibration massage frequency	0Hz, 21Hz, 5Hz, and 10Hz;

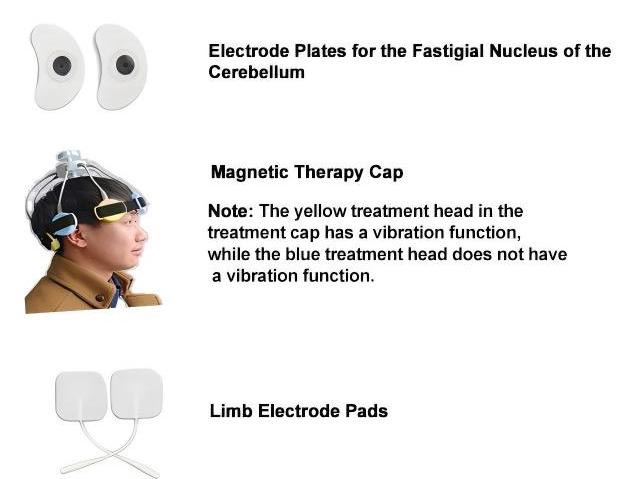

Magnetic therapy cap	There are adult and child models for your choice.
Number of magnetic therapy generators	For the adult type magnetic therapy cap, there are 7 magnetic therapy devices; For the child type magnetic therapy cap, there are 5 magnetic therapy devices;
Net weight	4.9kg
Size	308mm * 254.8mm * 126mm

Treatment Mechanism

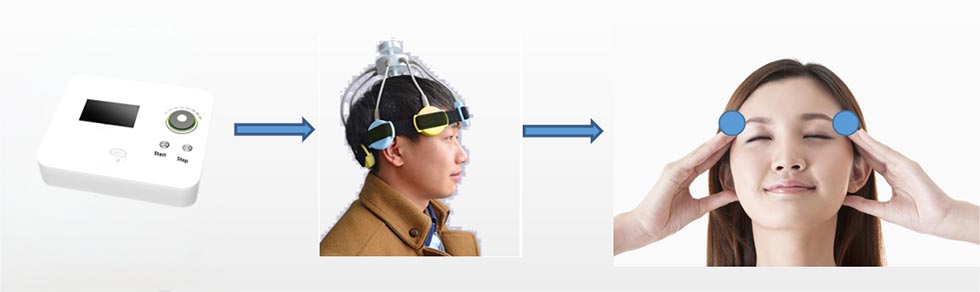

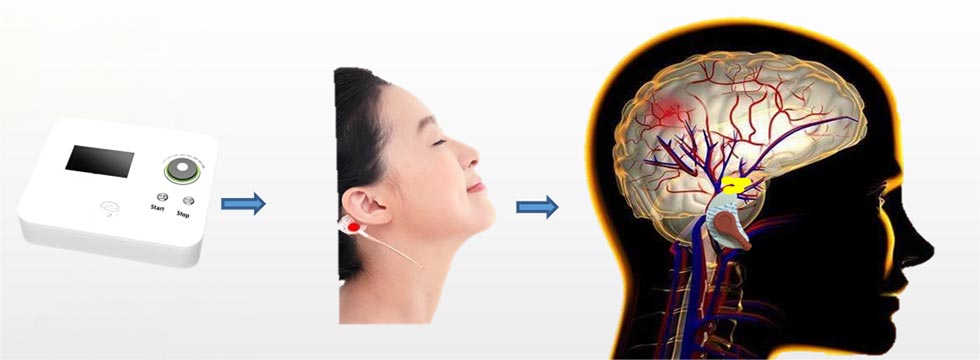

1.Output EEG simulation of biocurrent

The HTSY® EEG bionic stimulator can release simulated EEG biocurrents. This current non-invasively penetrates the skull and stimulates the parietal nucleus cerebellum region. It not only helps improve microcirculation in the brain and increase local blood flow, but also accelerates the metabolism of brain tissue, facilitating the recovery and reconstruction of brain nerves.

Electroencephalographic Bionic Stimulator

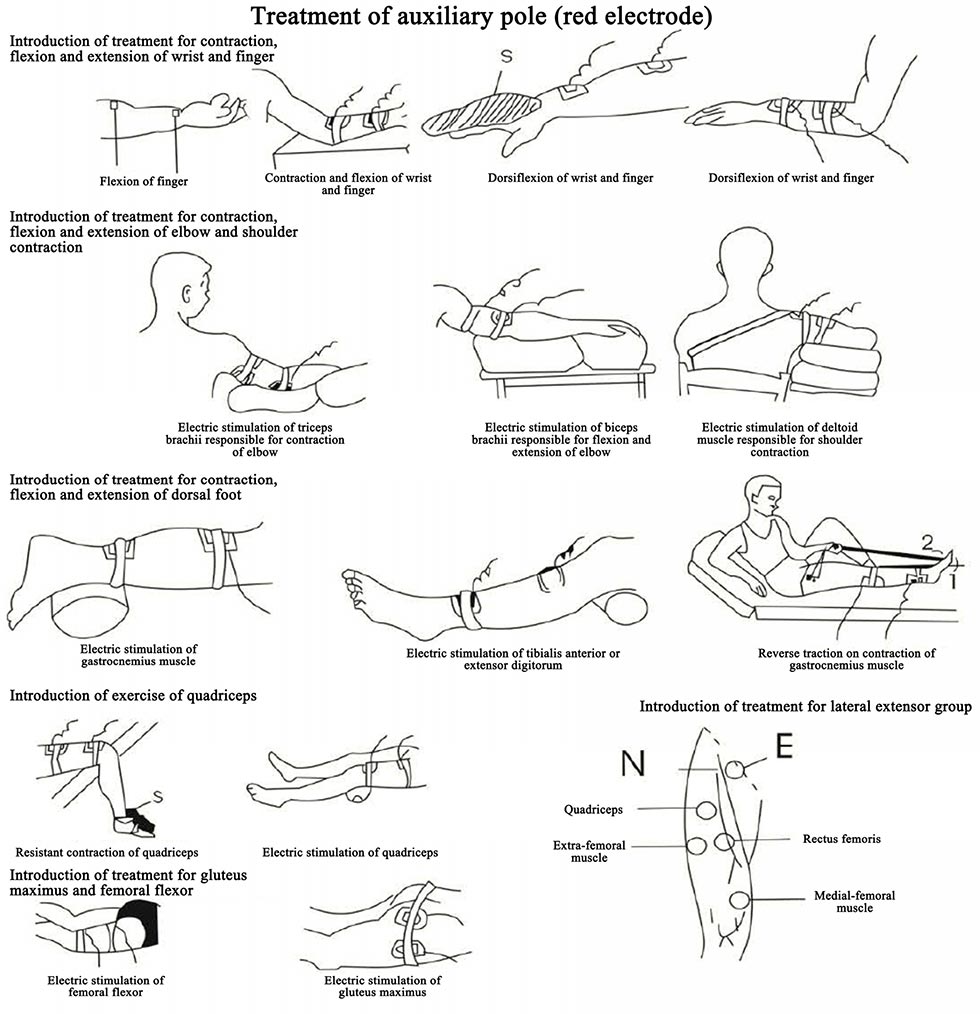

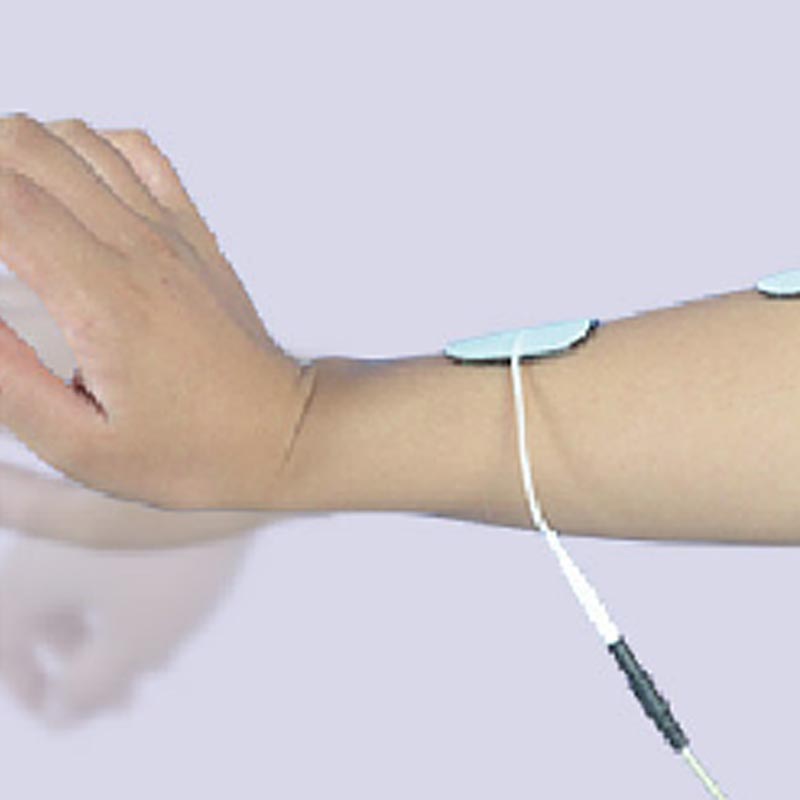

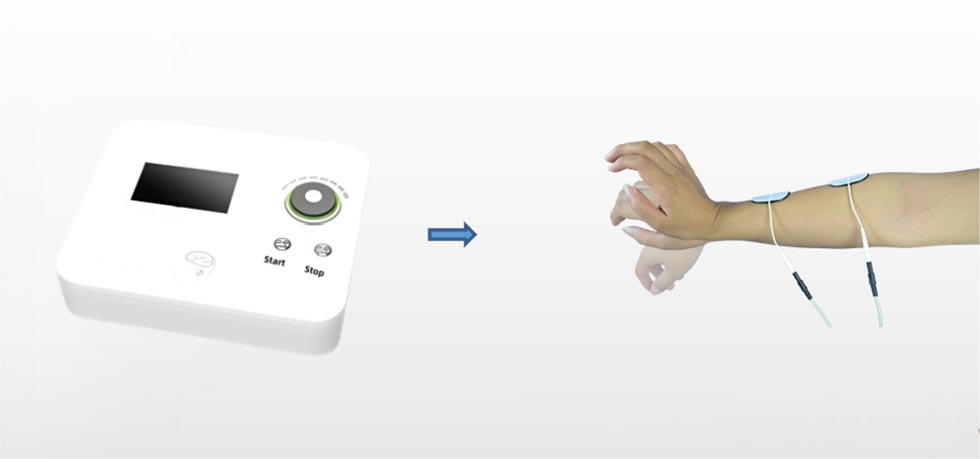

2.Output limb electrical stimulation

HTSY® electroencephalographic bionic stimulator can release electrical stimulation to the limbs, making the muscles active - it can not only prevent muscle atrophy after nerve damage, but also help exercise limb functions, and is also beneficial for the recovery and re-establishment of neural pathways.

Electroencephalographic Bionic Stimulator

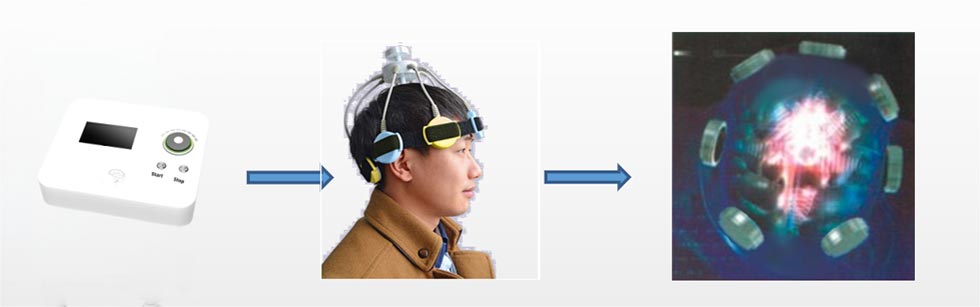

3.Output simulated biological current

This HTSY® EEG bionic stimulator can release simulated bioelectric currents and generate a biomagnetic field at the same time - it can enhance the vitality of brain cells, make cerebral blood vessels more elastic, and also improve the metabolic conditions of brain cells, helping brain functions gradually recover. It can also help patients adjust their electroencephalogram and magnetoencephalogram to a normal and regular state.

Electroencephalographic Bionic Stimulator

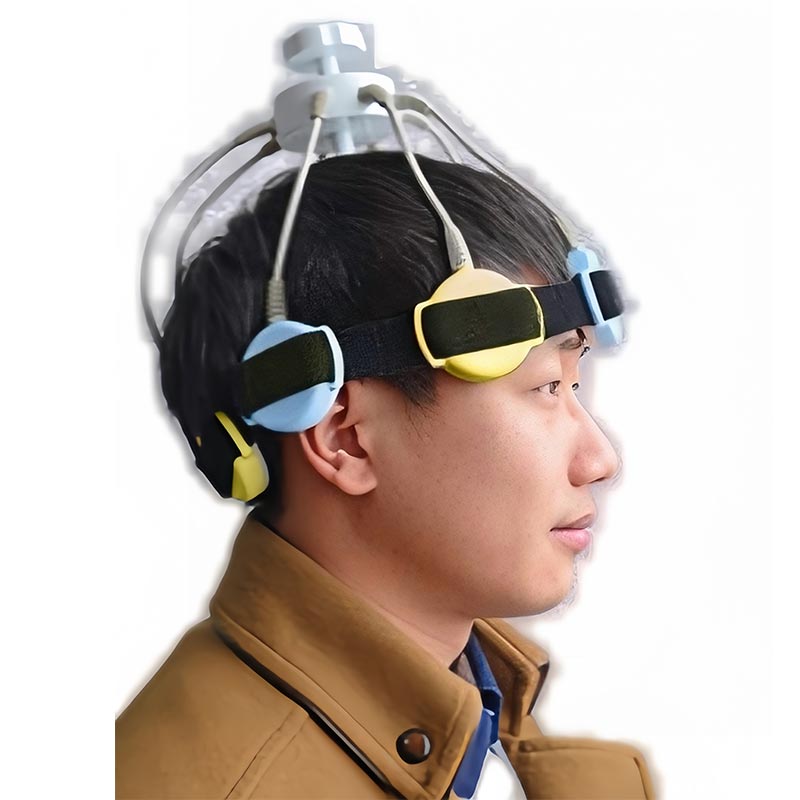

4.Output simulated biological current

This HTSY® electroencephalographic bionic stimulator can release simulated biocurrent to drive the magnetic therapy cap to perform vibration massage - it can help relax the muscles in the head, play a role in unblocking meridians and collaterals, and also promote blood circulation in the head, relieve physical fatigue and reduce mental stress.

Electroencephalographic Bionic Stimulator
