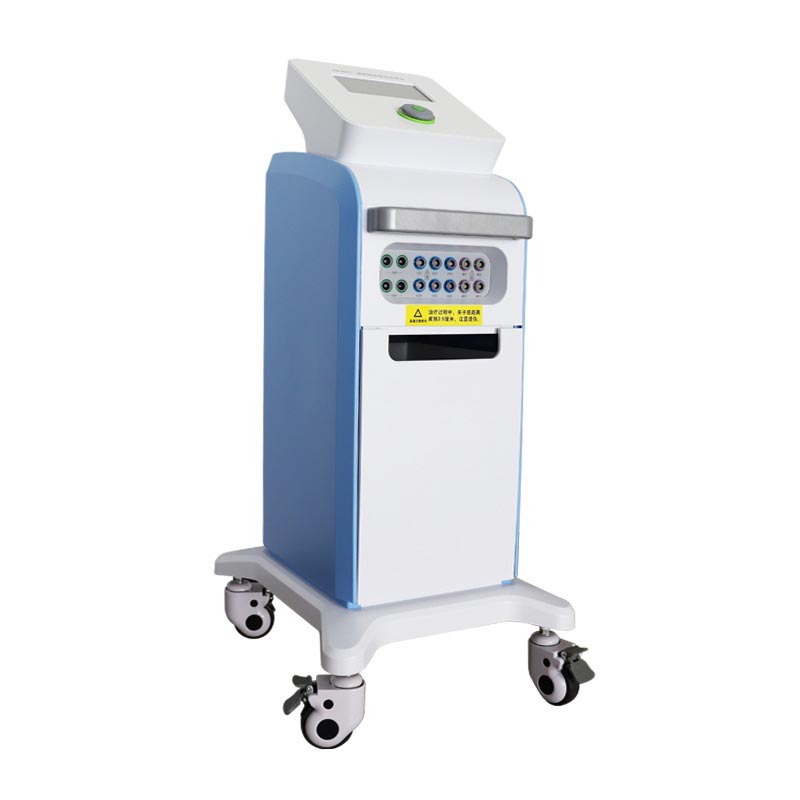

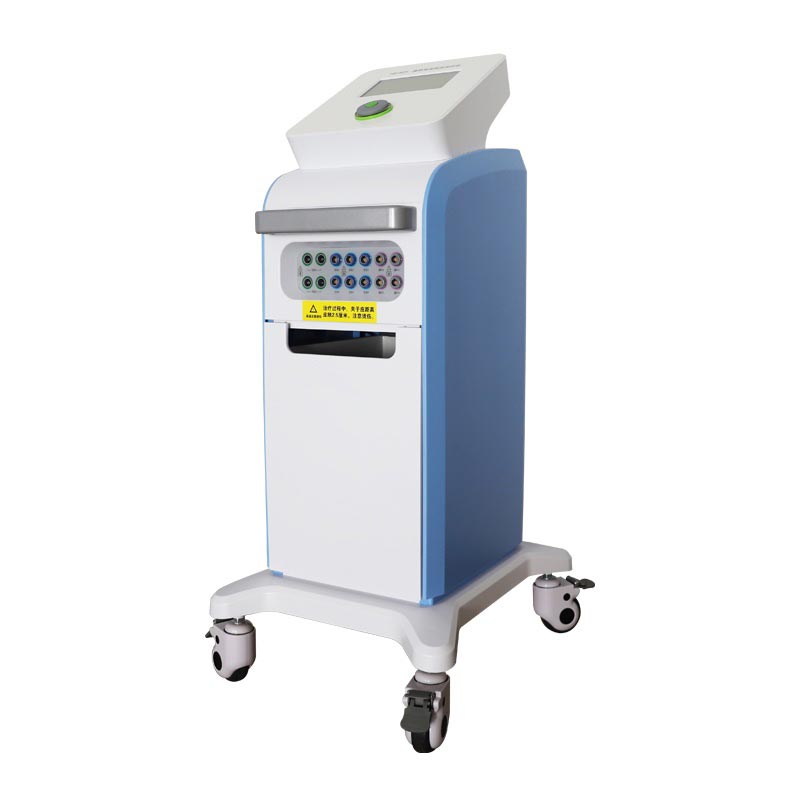

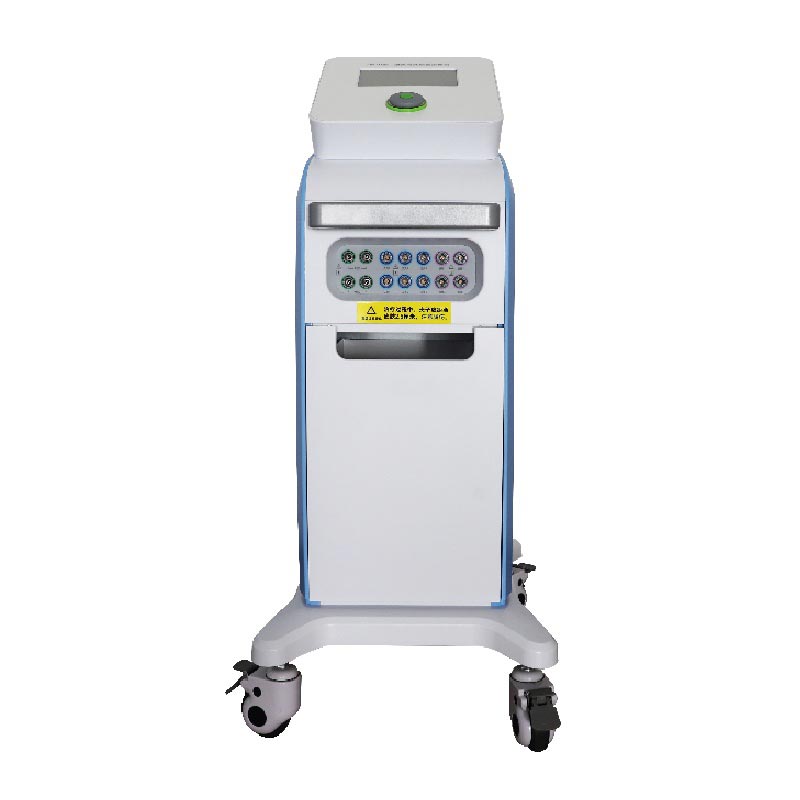

Electric Moxibustion Therapy Device
The Electric Moxibustion Therapy Device developed by HTSY® has advantages such as smokeless, environmentally friendly, safe and adjustable temperature compared with traditional moxibustion therapy. Our products have received high praise from various clinics and rehabilitation centers. We welcome everyone to cooperate for mutual benefit.
Send Inquiry
Product Description
The HTSY® quality Electric Moxibustion Therapy Device is a product that integrates five major functions: smokeless moxibustion, warm acupuncture, electroacupuncture, warm electroacupuncture, and S.S.P therapy, based on the principles of traditional Chinese acupuncture and modern computer technology. This is a "five-in-one" product. It can warm and unblock the meridians, warm and tonify qi and blood, and harmonize qi and blood.
Product Parameters
| Main functions of the equipment | Mokeless warm moxibustion, magnetic therapy, warm acupuncture, electro-acupuncture, warm electro-acupuncture, non-invasive electro-acupuncture, and negative pressure cupping. |
| Display screen | 7-inch color touch screen, equipped with one-key jog shuttle display operation. |
| Number of output channels | 12 moxibustion heads, 4 electro-acupuncture, and 2 non-invasive acupuncture. |
| Moxibustion head heating function | The moxibustion head has a heating function, and each moxibustion head independently controls the temperature: continuously adjustable within 30 ~ 70℃. |
| Magnetotherapy Catalysis Function of Moxibustion Head | The moxibustion head has the function of magnetic therapy catalysis, and the maximum magnetic field intensity on the surface of the moxibustion head is 7mT. |
| Six kinds of electric acupuncture output waveforms | continuous wave, density wave, light hammer wave, massage wave 1, massage wave 2, and massage wave 3. |
| The heating function of the warm electro-acupuncture | The warm electro-acupuncture has a heating function, and the temperature of the warm electrode clamp is 75℃ ± 10℃ after it is powered on for 15 minute. |
| Non-invasive electric acupuncture function | The electric stimulation parameters can be adjusted |
| Negative pressure cupping | The maximum negative pressure value is 30kPa ± 10%. |
| Treatment time | Set between 0 and 99min, and output will be automatically stopped at the set time |
| Input power | ≤70VA |
| Heating area of moxibustion head | The diameter of the heating surface of the moxibustion head is: 24mm ± 1mm. |
| Working noise | The working noise of the equipment under working condition is not louder than 60dB. |
| Maximum output | The maximum output effective value of the warm electro-acupuncture does not exceed 10mA. |
| Equipment net weight | 35.1kg |
| Size | 500mm * 400mm * 1280mm |
Treatment Mechanism

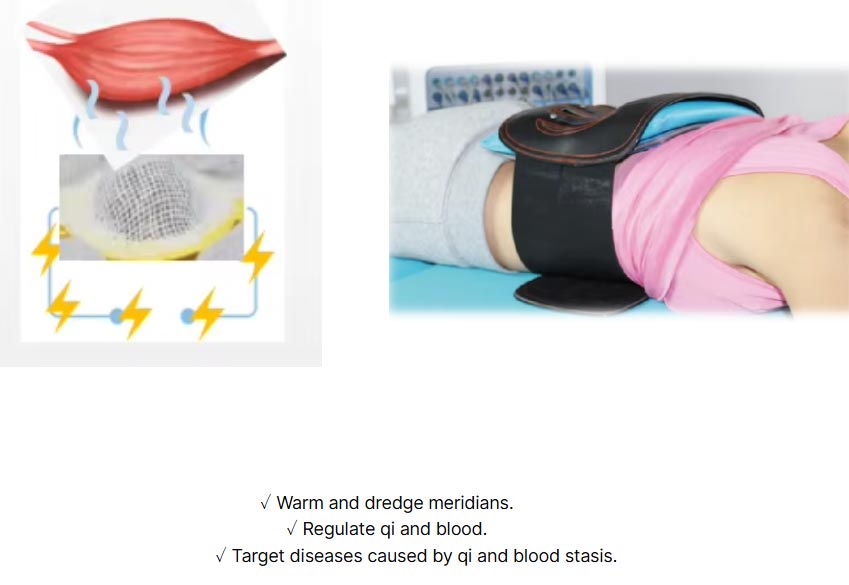

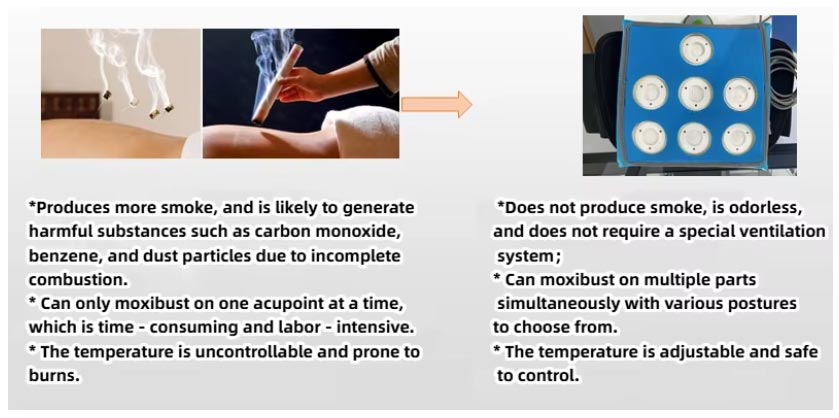

1.Smokeless moxibustion
✓ HTSY® moxibustion therapy device through electronic heating and magnetization, the organic components of mugwort are fully utilized, enabling smokeless moxibustion on multiple acupoints simultaneously.
✓ This HTSY® moxibustion therapy device is equipped with a special heat insulation pad, which has the functions of heat insulation and preventing cross-infection.

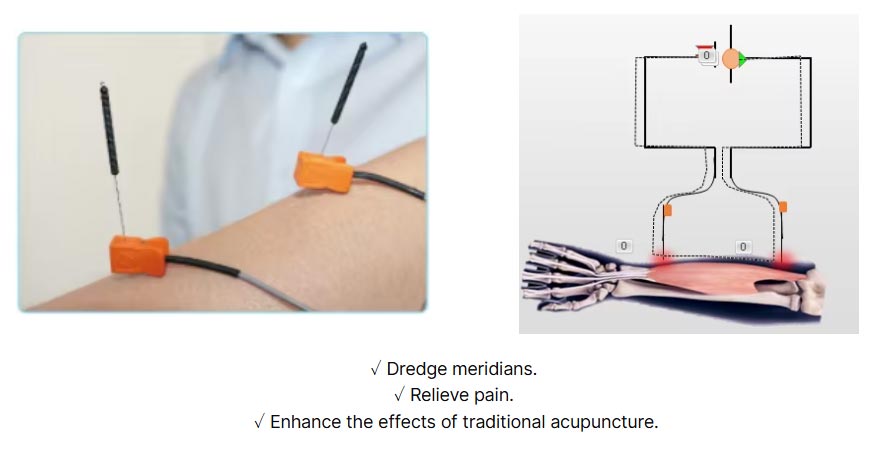

2.Warm needle, electroneedle, warm electroneedle
✓ This HTSY® Electric Moxibustion Therapy Device outputs low-frequency pulse current through the electroacupuncture clip, and it is equipped with a temperature-controlled heating component inside, which can be used in combination with acupuncture for warm needle treatment.

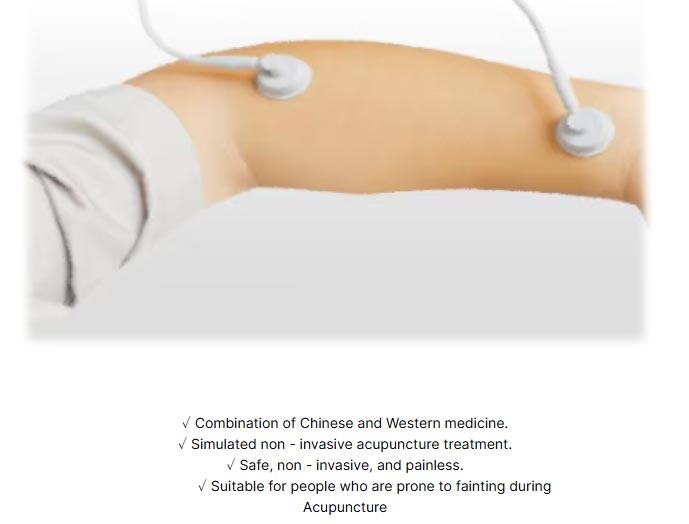

3.Adsorptive point stimulation (SSP)
✓ This HTSY® moxibustion therapy device is based on traditional Chinese acupuncture therapy and Western low-frequency electrical stimulation therapy. It uses ultra-small adsorption conical electrodes to simulate acupuncture and input low-frequency, high-voltage, and ultra-low-pulse width current into the human body, stimulating the nerves, muscles, and acupoints and meridians at the treatment site.
✓ This HTSY® moxibustion therapy device also has the functions of negative pressure suction and cupping.
Product advantages

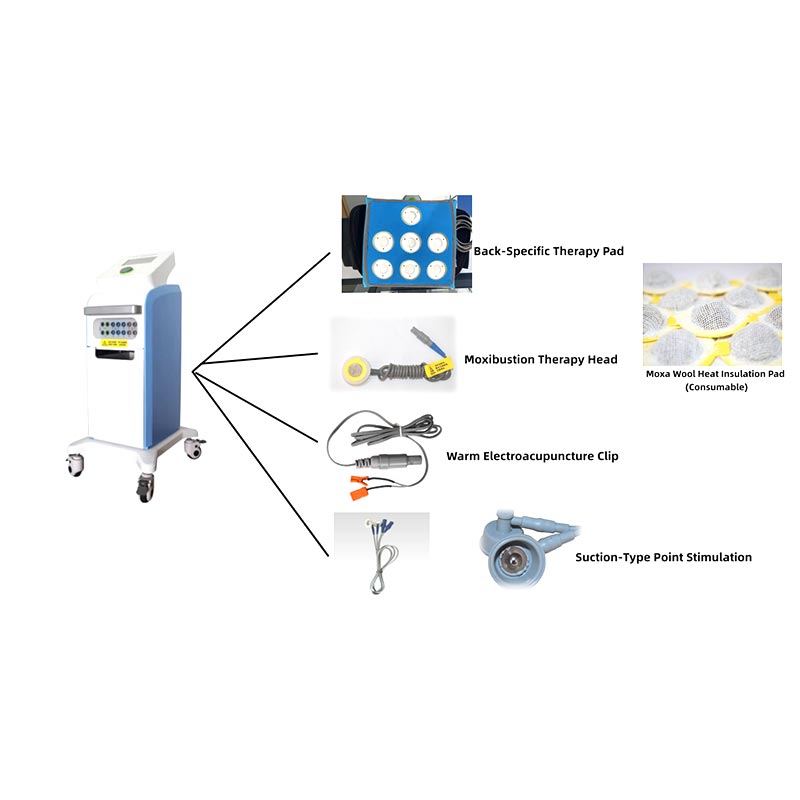

1. This HTSY® Electric Moxibustion Therapy Device combines seven functions in one
* Smokeless warm moxibustion
* Electroneedle
* Warm needle
* Thermoelectric needle
* Adsorption point stimulation
* Cupping
2. The temperature of this HTSY® product is controllable
* 30-70 ℃
* The temperature of the moxibustion head can be adjusted individually or as a whole
* The patient has strong adaptability.
* The temperature above 60℃ is displayed in red
3. This HTSY® product is easy to operate
* 7-inch color touch screen with one-button shuttle
* Overall control of the moxibustion head, individual selection
4. This HTSY® Electric Moxibustion Therapy Device can treat multiple parts simultaneously
* Multiple moxibustion heads are available, and a lumbar and back pad can be selected to treat multiple areas at once
* Moxibustion, electroacupuncture and adsorption point stimulation can be activated simultaneously
