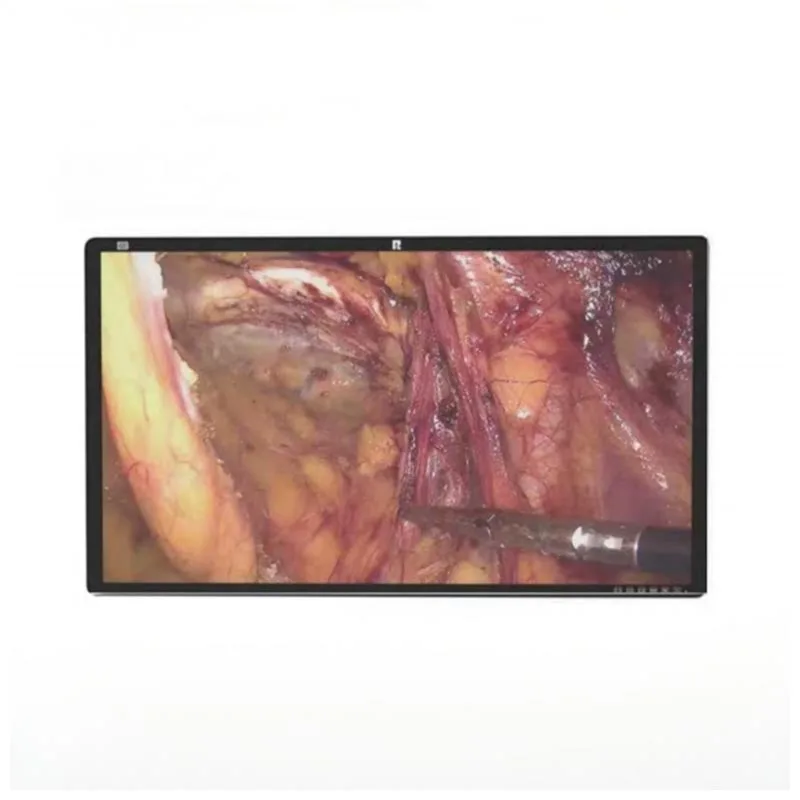

55-inch 4K Surgical Medical Monitor

This HTSY® 55-inch 4K Surgical Medical Monitor is suitable for operating rooms in general surgery, minimally invasive endoscopy, surgical teaching, remote consultation, etc. It can be compatible with medical imaging equipment such as endoscopes, surgical microscopes, and intraoperative ultrasound. With a native 4K resolution of 3840×2160, the large screen can fully display all details of microvessels, lesions, and wounds. The device has an integrated all-planar body design, compatible with endoscopic system integration, and supports various installation methods such as ceiling-mounted, arm-mounted, and medical trolley-mounted, suitable for various surgical room layouts. It supports multi-screen simultaneous display and various split-screen modes, facilitating doctors to compare real-time surgical field and archived images. The screen glass is anti-reflective and easy to clean, and the entire machine is convenient for disinfection. The remote control can be locked to prevent accidental touch and is compatible with hospitals for frequent and long-term surgical use.

Product Parameters

Product Features

1. Compliant with DICOM medical imaging standards, the medical imaging is precise and reliable.

The HTSY® 55-inch 4K Surgical Medical Monitor is manufactured strictly in accordance with the international DICOM medical imaging standards. The gray-scale curve and color parameters are calibrated, and the screen's light and shadow gradations are highly matched with the imaging logic of medical imaging equipment. It restores the true colors and light-dark differences of human mucosa, blood vessels, fat, and lesion tissues. Different from the overly bright calibration style of ordinary commercial displays, this medical screen eliminates color deviations and gray-scale discontinuities. When doctors observe the real-time surgical field during the operation or compare it with preoperative CT, MRI, or ultrasound images, the visual reference is precise and stable. It will not misjudge the tissue boundaries due to image distortion, significantly reducing the probability of visual judgment errors in surgical operations. It is suitable for departments with strict requirements for image quality such as hepatobiliary, orthopedic, and neurosurgery.

2. Multi-form integrated split-screen, flexible comparison of multiple images

Our display screen adopts a multi-window integrated display solution, supporting four mainstream layouts: full screen, split screen, four-split screen, and picture-in-picture. Additionally, it is equipped with functions such as image mirroring, up-down flipping, and left-right flipping, which are suitable for the operation habits of endoscopic surgeries. The device can simultaneously receive multiple independent image signals and achieve simultaneous display of real-time endoscopic images, intraoperative B-ultrasound images, and preoperative radiographic images. There is no need to switch signal channels repeatedly. For multi-disciplinary joint surgeries and complex and difficult surgeries, doctors can simultaneously refer to multi-dimensional imaging information, without repeatedly retrieving images, simplifying the intraoperative operation steps, effectively shortening the surgery adaptation time, and improving the surgical smoothness.

3. Diversified and rich interfaces, compatible with the majority of medical devices

The HTSY® 55-inch 4K Surgical Medical Monitor is equipped with multiple types of full-featured signal interfaces, covering SDI, HDMI, DP, USB and other common transmission ports in the medical industry. It is compatible with high-definition endoscopes, surgical microscopes, intraoperative color ultrasounds, image recorders, surgical live-streaming encoders and most other commonly used equipment in the operating room. Whether it is the outdated medical devices already in use by the hospital or the newly purchased high-end endoscopic instruments, they can be stably connected and adapted. The rich interfaces reserve sufficient expansion space, so that the hospital does not need to replace the monitor when updating medical equipment in the future, reducing the cost of repeated hardware purchases and meeting the hospital's plan for batch equipment upgrades.

4. Supports screen cloning for loop display, facilitating surgical recording and collective observation

This display is equipped with a professional screen cloning output interface, which can synchronously output the complete current main screen image without any loss. It can be connected to video recorders, storage hosts, secondary displays, and remote live streaming terminals. On one hand, it can fully record the entire surgical process images for case archiving and doctors' review and learning; on the other hand, it can transmit the image to the teaching screen outside the operating room and the large screen in the conference room, facilitating distant collective observation by trainee doctors and visiting doctors without disturbing the sterile environment of the operating room. At the same time, the screen display is synchronized without delay or compression, and the image quality observed by the observers is exactly the same as that of the surgeon, ensuring the teaching quality.

5. Ultra-low reflective protective panel, immune to interference from surgical room lighting

The outer layer of the HTSY® 55-inch 4K Surgical Medical Monitor is equipped with custom anti-radiation protective glass. It adopts an ultra-low reflection coating process, and is further optimized with anti-glare and anti-fingerprint functions. When numerous shadowless lights in the surgical room concentrate intense light directly onto the screen, there will be no large reflective spots or bright spots blocking the picture; viewing from the side or at the angle position of the screen will not experience reflective blurring. When medical staff operate, fingerprints and disinfectant water stains left by their fingers can be easily removed with simple wiping. Under the constant strong light illumination of the surgical room, the picture remains clear and transparent, ensuring that all personnel in position can clearly see the details.

6. Integrated flat-panel body, in line with surgical room infection control and disinfection standards

This surgical medical display adopts an integrated flat-panel design. The surface of the body is clean and flat. During the final cleaning and disinfection in the surgical room, medical staff can directly wipe the equipment with medical alcohol and chlorine-containing disinfectant wipes, ensuring complete cleaning without any blind areas. This effectively avoids bacterial growth and fully meets the usage requirements of high-frequency disinfection and strict infection control in the surgical room. At the same time, the flat body is resistant to bumps and wear and tear, which can effectively extend the service life of the equipment.

7. Ultra-wide viewing angle, no quality degradation for multi-person simultaneous viewing

This diagnostic display screen features a 178-degree full-angle wide viewing characteristic. Whether viewed horizontally or vertically with significant deviations, the screen's brightness, color saturation, and detail clarity will not be degraded, distorted, or grayed out. The 55-inch large screen is suitable for multiple people to view simultaneously. The surgical team and trainees can stand at various positions such as the front, side, and diagonal below the screen, and the viewing experience will be basically uniform. It is suitable for large surgical room team collaboration and for large numbers of trainees to conduct on-site observation and teaching without everyone gathering directly in front of the screen, optimizing the stationing route in the surgical room.

8. Remote control locking management to ensure stable parameters throughout the surgery

The HTSY® 55-inch 4K Surgical Medical Monitor is equipped with a hardware locking function for the remote control. Once the locking is activated, all the buttons on the remote control are restricted, and the screen brightness, color parameters, signal source, split-screen mode, and flip settings cannot be changed at will. Due to the complexity of the surgical room staff, this feature can effectively prevent the accidental touch of the remote control by circulating nurses or interns, which could lead to chaotic settings during the surgery. The display parameters throughout the entire surgery remain fixed and stable, ensuring controllable image quality, reducing accidental interference from human factors, and making the display status during the entire surgery safe and controllable.
